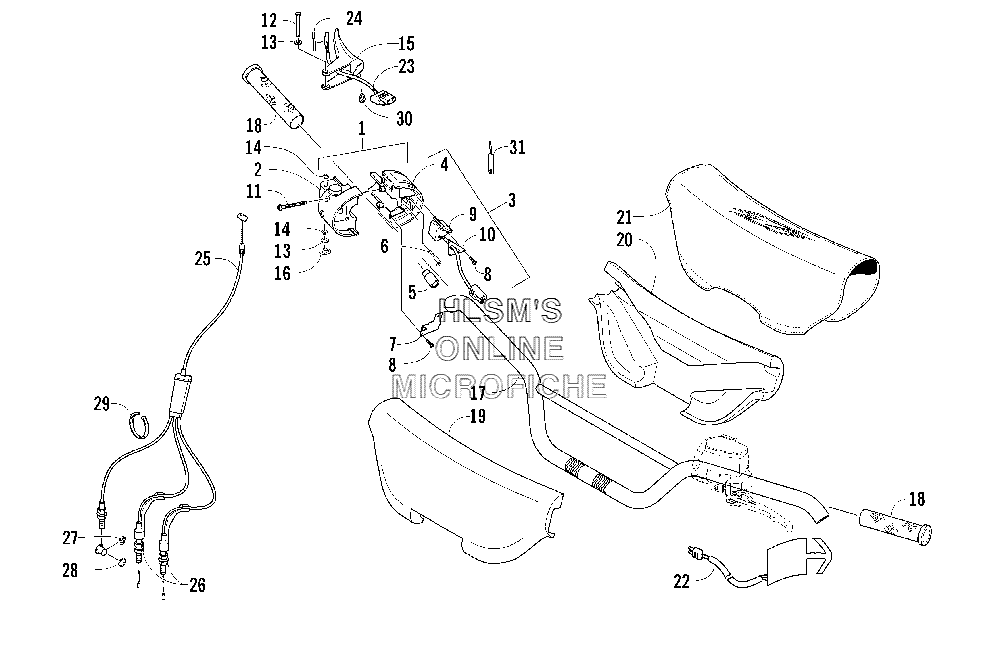

HANDLEBAR AND CONTROLS для Arctic Cat Z 570 (ORANGE) - 2006 года выпуска
-
№АртикулНазвание
-
10609-483 CONTROL, THROTTLECONTROL, THROTTLE
-
20609-493 CONTROL, THROTTLE, STOP SWITCH HALFCONTROL, THROTTLE, STOP SWITCH HALF
-
30609-499 CONTROL, THROTTLE, THUMBWARMER ASSYCONTROL, THROTTLE, THUMBWARMER ASSY
-
40609-494 CONTROL, THROTTLE, THUMBWARMER HALFCONTROL, THROTTLE, THUMBWARMER HALF
-
50609-497 PLUG, RUBBERPLUG, RUBBER
-
60609-498 CLIP, RETAINING, THROTTLE CABLECLIP, RETAINING, THROTTLE CABLE
-
70609-496 PLATE, COVERPLATE, COVER
-
80609-312 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
90609-384 SWITCH, THUMBWARMER ASSYSWITCH, THUMBWARMER ASSY
-
100609-378 PLATE, COVERPLATE, COVER
-
110609-492 SCREW, MACHINESCREW, MACHINE
-
120609-317 AXLE, LEVER, THROTTLEAXLE, LEVER, THROTTLE
-
130609-036 WASHERWASHER
-
140609-501 WASHER, SHOULDER, THROTTLEWASHER, SHOULDER, THROTTLE
-
150609-363 LEVER, THROTTLELEVER, THROTTLE
-
160609-040 RING, RETAININGRING, RETAINING
-
170705-971 HANDLEBARHANDLEBAR
-
182606-084 GRIP, HANDLEBARGRIP, HANDLEBAR
-
190605-354 PAD, HANDLEBAR (FRONT)PAD, HANDLEBAR (FRONT)
-
200605-353 PAD, HANDLEBAR (REAR)PAD, HANDLEBAR (REAR)
-
210605-683 WRAP, HANDLEBAR PADWRAP, HANDLEBAR PAD
-
220609-730 ELEMENT, HANDWARMER (RIGHT)ELEMENT, HANDWARMER (RIGHT)
-
220609-731 ELEMENT, HANDWARMER (LEFT)ELEMENT, HANDWARMER (LEFT)
-
230609-685 ELEMENT, THUMBWARMERELEMENT, THUMBWARMER
-
240617-248 PAD, INSULATORPAD, INSULATOR
-
250687-183 CABLE, THROTTLE (INC. 26)CABLE, THROTTLE (INC. 26)
-
260623-464 NUT, LOCKING, THROTTLE CABLENUT, LOCKING, THROTTLE CABLE
-
270124-057 E, RINGE, RING
-
280124-056 WASHERWASHER
-
290123-788 CABLE TIE, 8 IN.CABLE TIE, 8 IN.
-
300623-262 CLIP, WIRECLIP, WIRE
-
311639-963 TOOL REMOVAL, KIT, THROTTLE CABLETOOL REMOVAL, KIT, THROTTLE CABLE
