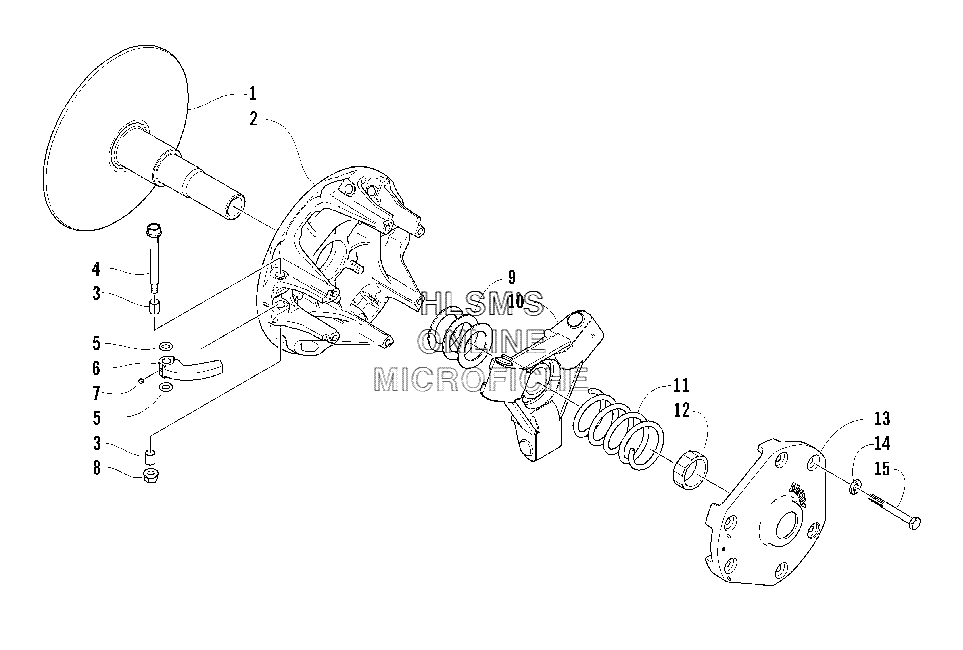

DRIVE CLUTCH для Arctic Cat Z 570 LX (GREEN) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    0646-325 SHEAVE, STATIONARY
    SHEAVE, STATIONARY
  • 2
    0746-159 SHEAVE, MOVABLE (INC. 3)
    SHEAVE, MOVABLE (INC. 3)
  • 3
    0646-372 BEARING
    BEARING
  • 4
    0646-747 PIN, CAM ARM
    PIN, CAM ARM
  • 5
    1602-692 O-RING
    O-RING
  • 6
    0746-666 ARM, CAM (INC. 7)
    ARM, CAM (INC. 7)
  • 6
    0746-661 ARM, CAM (INC. 7/OVER 6, 000 FT ALT.)
    ARM, CAM (INC. 7/OVER 6, 000 FT ALT.)
  • 7
    1623-183 SCREW, SET
    SCREW, SET
  • 8
    8048-366 NUT, LOCK
    NUT, LOCK
  • 9
    0646-265 SPACER
    SPACER
  • 10
    0746-118 SPIDER ASSY
    SPIDER ASSY
  • 11
    0646-149 SPRING, DRIVE CLUTCH (RED)
    SPRING, DRIVE CLUTCH (RED)
  • 11
    0646-147 SPRING, DRIVE CLUTCH (YELLOW/GREEN)
    SPRING, DRIVE CLUTCH (YELLOW/GREEN)
  • 12
    0646-140 NUT
    NUT
  • 13
    0746-160 COVER
    COVER
  • 14
    8051-212 WASHER, LOCK, SPRING
    WASHER, LOCK, SPRING
  • 15
    1623-442 SCREW, MACHINE
    SCREW, MACHINE
