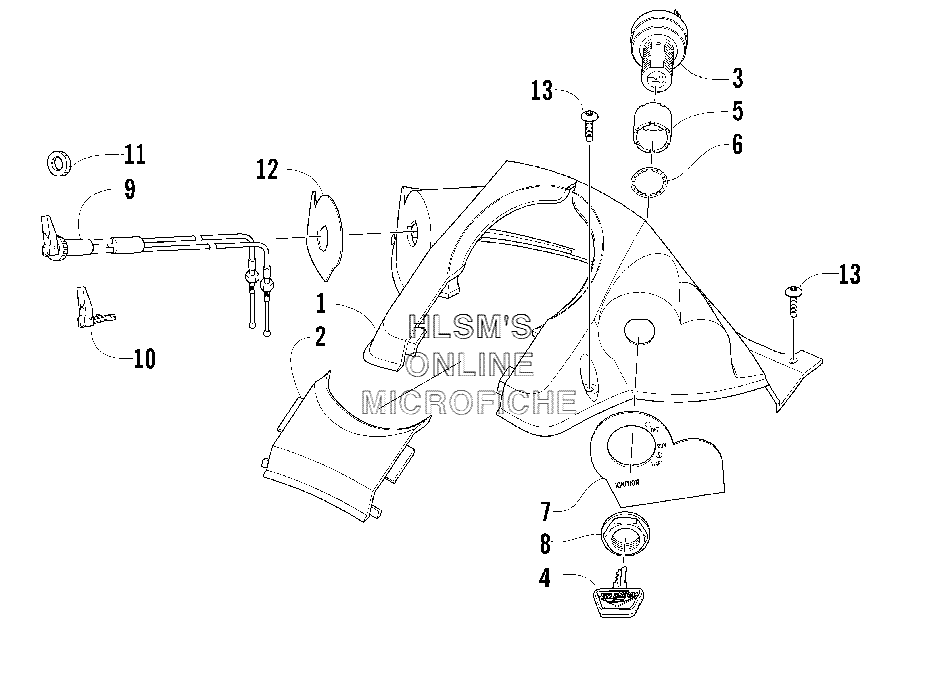

CONSOLE AND SWITCH ASSEMBLY для Arctic Cat Z 570 LX (GREEN) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    1606-735 CONSOLE
    CONSOLE
  • 2
    1606-105 DOOR, CONSOLE
    DOOR, CONSOLE
  • 3
    0609-449 SWITCH, IGNITION (INC. 4)
    SWITCH, IGNITION (INC. 4)
  • 5
    0609-450 SPACER, IGNITION SWITCH
    SPACER, IGNITION SWITCH
  • 6
    0123-899 WASHER, LOCK, INTERNAL TOOTH
    WASHER, LOCK, INTERNAL TOOTH
  • 7
    2611-744 DECAL, CONSOLE (RIGHT)
    DECAL, CONSOLE (RIGHT)
  • 8
    0609-113 NUT, RETAINING, PLASTIC
    NUT, RETAINING, PLASTIC
  • 9
    0687-007 CABLE, CHOKE (INC. 10, 11)
    CABLE, CHOKE (INC. 10, 11)
  • 10
    0636-062 CHOKE LEVER KIT
    CHOKE LEVER KIT
  • 11
    0623-054 NUT, CHOKE
    NUT, CHOKE
  • 12
    2611-867 DECAL, CONSOLE (LEFT)
    DECAL, CONSOLE (LEFT)
  • 13
    1623-175 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
