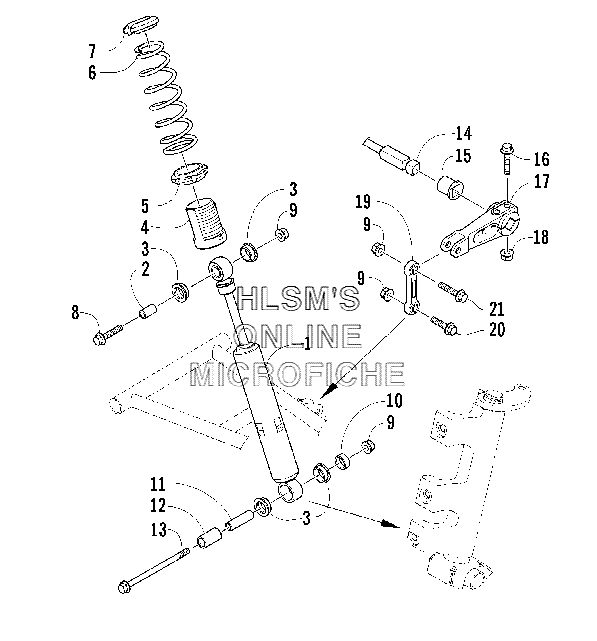

SHOCK ABSORBER AND SWAY BAR ASSEMBLY для Arctic Cat T660 Turbo Touring LE (SILVER) - 2006 года выпуска`
-
№АртикулНазвание
-
11603-175 SHOCK, SUSPENSION (FRONT) (INC. 2, 3)SHOCK, SUSPENSION (FRONT) (INC. 2, 3)
-
20604-309 SLEEVE, SHOCKSLEEVE, SHOCK
-
30604-310 BUSHING, SHOCKBUSHING, SHOCK
-
40603-147 SLEEVE, THREADEDSLEEVE, THREADED
-
50603-259 NUT, RETAINER, SPRINGNUT, RETAINER, SPRING
-
60703-872 SPRING, COMPRESSIONSPRING, COMPRESSION
-
71603-889 RETAINER, SPRINGRETAINER, SPRING
-
88020-226 SCREW, CAPSCREW, CAP
-
98048-486 NUT, LOCKNUT, LOCK
-
100603-855 SPACER, SHOCK MOUNT (REAR)SPACER, SHOCK MOUNT (REAR)
-
111604-184 AXLE, SHOCK MOUNT (LOWER)AXLE, SHOCK MOUNT (LOWER)
-
120603-854 SPACER, SHOCK MOUNT (FRONT)SPACER, SHOCK MOUNT (FRONT)
-
138020-234 SCREW, CAPSCREW, CAP
-
140703-194 SWAY BARSWAY BAR
-
150603-151 BEARING, SWAY BARBEARING, SWAY BAR
-
168020-137 SCREW, CAPSCREW, CAP
-
170603-558 ARM, SWAY BARARM, SWAY BAR
-
188048-426 NUT, LOCKNUT, LOCK
-
191603-002 LINK, SWAY BARLINK, SWAY BAR
-
208020-225 SCREW, CAPSCREW, CAP
-
218020-225 SCREW, CAPSCREW, CAP
