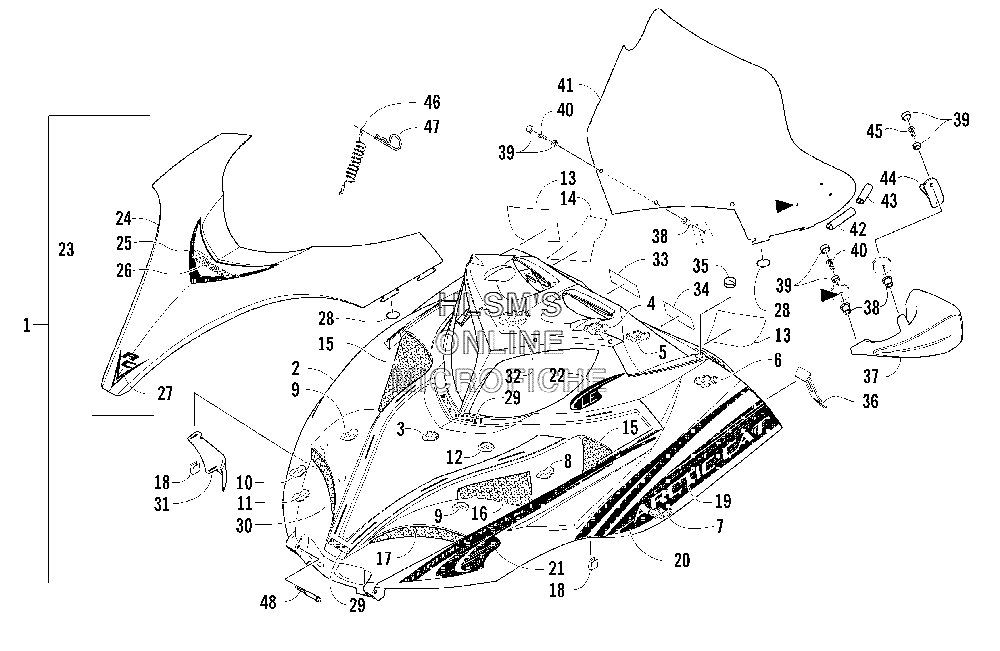

HOOD AND WINDSHIELD ASSEMBLY для Arctic Cat T660 Turbo Touring LE (SILVER) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    1718-862 HOOD W/DECALS (INC. 2, 28 AND TWELVE NO. 29)
    HOOD W/DECALS (INC. 2, 28 AND TWELVE NO. 29)
  • 2
    1718-861 HOOD W/O DECALS (INC. 3, 19)
    HOOD W/O DECALS (INC. 3, 19)
  • 3
    0717-183 FOAM, HOOD (MIDDLE)
    FOAM, HOOD (MIDDLE)
  • 4
    0717-186 FOAM, HOOD, GAUGE (RIGHT)
    FOAM, HOOD, GAUGE (RIGHT)
  • 5
    0717-190 FOAM, HOOD (UPPER/RIGHT)
    FOAM, HOOD (UPPER/RIGHT)
  • 5
    0717-191 FOAM, HOOD (UPPER/LEFT)
    FOAM, HOOD (UPPER/LEFT)
  • 6
    0717-188 FOAM, HOOD (REAR/RIGHT)
    FOAM, HOOD (REAR/RIGHT)
  • 6
    0717-189 FOAM, HOOD (REAR/LEFT)
    FOAM, HOOD (REAR/LEFT)
  • 7
    0717-184 FOAM, HOOD (FRONT/RIGHT)
    FOAM, HOOD (FRONT/RIGHT)
  • 7
    0717-185 FOAM, HOOD (FRONT/LEFT)
    FOAM, HOOD (FRONT/LEFT)
  • 8
    3606-375 FOIL, HOOD (SIDE)
    FOIL, HOOD (SIDE)
  • 9
    3606-372 FOIL, HOOD (UPPER/RIGHT)
    FOIL, HOOD (UPPER/RIGHT)
  • 9
    3606-373 FOIL, HOOD (UPPER/LEFT)
    FOIL, HOOD (UPPER/LEFT)
  • 10
    2606-556 FOIL, HOOD
    FOIL, HOOD
  • 11
    3606-374 FOIL, HOOD (LOWER/RIGHT)
    FOIL, HOOD (LOWER/RIGHT)
  • 12
    3606-376 FOIL, HOOD (UPPER)
    FOIL, HOOD (UPPER)
  • 13
    5611-840 DECAL, WARNING (ENGLISH)
    DECAL, WARNING (ENGLISH)
  • 13
    5611-841 DECAL, WARNING (FRENCH)
    DECAL, WARNING (FRENCH)
  • 14
    7611-151 DECAL, WARNING, BREAK, INNER/REVERSE
    DECAL, WARNING, BREAK, INNER/REVERSE
  • 15
    3606-236 SCREEN, HOOD (REAR/RIGHT)
    SCREEN, HOOD (REAR/RIGHT)
  • 15
    3606-237 SCREEN, HOOD (REAR/LEFT)
    SCREEN, HOOD (REAR/LEFT)
  • 16
    4606-161 SCREEN, HOOD (MIDDLE)
    SCREEN, HOOD (MIDDLE)
  • 17
    3606-235 SCREEN, HOOD (FRONT/LEFT)
    SCREEN, HOOD (FRONT/LEFT)
  • 18
    0123-987 CLIP, RETAINING
    CLIP, RETAINING
  • 19
    6611-805 EMBLEM, HOOD
    EMBLEM, HOOD
  • 20
    6611-794 DECAL, HOOD (LOWER/RIGHT)
    DECAL, HOOD (LOWER/RIGHT)
  • 20
    6611-795 DECAL, HOOD (LOWER/LEFT)
    DECAL, HOOD (LOWER/LEFT)
  • 21
    6611-792 DECAL, HOOD (FRONT/RIGHT)
    DECAL, HOOD (FRONT/RIGHT)
  • 21
    6611-793 DECAL, HOOD (FRONT/LEFT)
    DECAL, HOOD (FRONT/LEFT)
  • 22
    7611-036 DECAL, HOOD, "LE" (UPPER/RIGHT)
    DECAL, HOOD, "LE" (UPPER/RIGHT)
  • 22
    7611-037 DECAL, HOOD, "LE" (UPPER/LEFT)
    DECAL, HOOD, "LE" (UPPER/LEFT)
  • 23
    1718-863 COVER, HOOD W/DECALS (INC. 24, 27)
    COVER, HOOD W/DECALS (INC. 24, 27)
  • 24
    4606-070 COVER, HOOD W/O DECALS
    COVER, HOOD W/O DECALS
  • 25
    6611-802 DECAL, CREST
    DECAL, CREST
  • 26
    6611-822 EMBLEM, COVER, "T660"
    EMBLEM, COVER, "T660"
  • 27
    6611-261 EMBLEM, COVER
    EMBLEM, COVER
  • 28
    0616-032 O-RING
    O-RING
  • 29
    0619-898 TAPE, FOAM, 1 FT
    TAPE, FOAM, 1 FT
  • 30
    3606-234 SCREEN, HOOD (FRONT/RIGHT)
    SCREEN, HOOD (FRONT/RIGHT)
  • 31
    1670-550 DEFLECTOR, AIR INTAKE
    DEFLECTOR, AIR INTAKE
  • 32
    0717-192 FOAM, HOOD (UPPER MIDDLE)
    FOAM, HOOD (UPPER MIDDLE)
  • 33
    7611-171 DECAL, "CAT COMM"
    DECAL, "CAT COMM"
  • 34
    7611-165 EMBLEM, CHROME, "TURBO LE"
    EMBLEM, CHROME, "TURBO LE"
  • 35
    4606-143 GROMMET
    GROMMET
  • 36
    1606-067 STRAP, HOLD, DOWN
    STRAP, HOLD, DOWN
  • 37
    2639-477 MIRROR KIT (INC. SIX NO. 38, 40)
    MIRROR KIT (INC. SIX NO. 38, 40)
  • 38
    0623-845 NUT, EXPANSION
    NUT, EXPANSION
  • 39
    0124-054 SNAP CAP W/WASHER
    SNAP CAP W/WASHER
  • 40
    0623-902 SCREW, MACHINE
    SCREW, MACHINE
  • 41
    4606-078 WINDSHIELD
    WINDSHIELD
  • 42
    1623-519 CLIP, 3 IN.
    CLIP, 3 IN.
  • 43
    1623-518 CLIP, 1 IN.
    CLIP, 1 IN.
  • 44
    0630-204 MOUNT, ANTENNA, RADIO
    MOUNT, ANTENNA, RADIO
  • 45
    0623-121 SCREW, MACHINE
    SCREW, MACHINE
  • 46
    2606-247 CABLE, HOOD
    CABLE, HOOD
  • 47
    0623-805 CLIP, HAIRPIN
    CLIP, HAIRPIN
  • 48
    1623-164 SCREW, SHOULDER
    SCREW, SHOULDER
