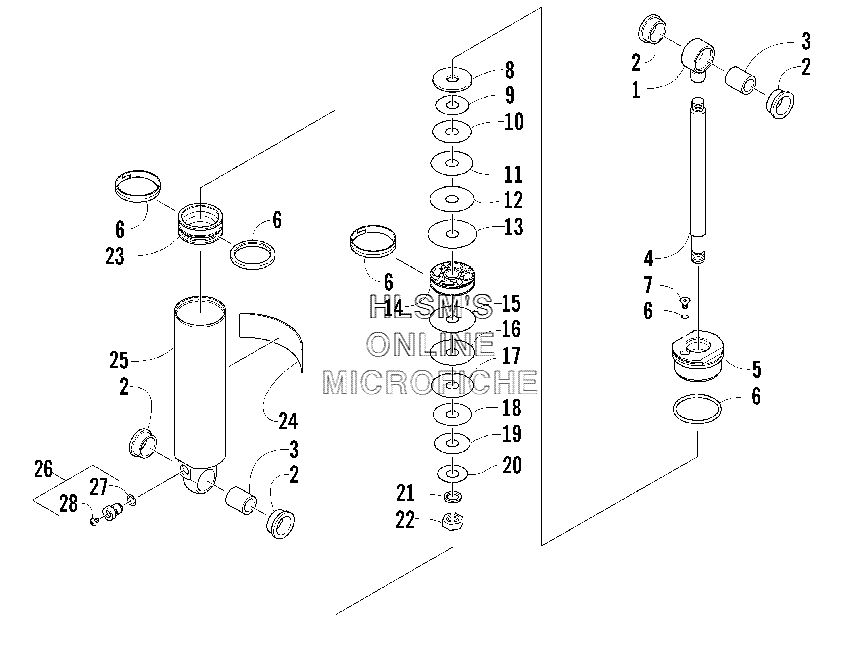

REAR SUSPENSION REAR ARM SHOCK ABSORBER для Arctic Cat T660 Turbo ST (GREEN) INTERNATIONAL - 2006 года выпуска`
-
№АртикулНазвание
-
10604-893 EYELET, SHOCKEYELET, SHOCK
-
21604-222 BUSHING, SHOCKBUSHING, SHOCK
-
32604-223 SLEEVE, EYELETSLEEVE, EYELET
-
42604-622 ROD, SHOCKROD, SHOCK
-
52604-627 CAP, SHOCKCAP, SHOCK
-
62604-880 SEAL/REBUILD KITSEAL/REBUILD KIT
-
72604-530 SCREWSCREW
-
82603-466 WASHER, TOP OUTWASHER, TOP OUT
-
90603-338 VALVE, 0.900 X 0.010 IN.VALVE, 0.900 X 0.010 IN.
-
100603-341 VALVE, 1.000 X 0.010 IN.VALVE, 1.000 X 0.010 IN.
-
110603-350 VALVE, 1.300 X 0.010 IN.VALVE, 1.300 X 0.010 IN.
-
122604-647 VALVE, 1.425 X 0.010 IN.VALVE, 1.425 X 0.010 IN.
-
132604-631 VALVE, 1.600 X 0.010 IN.VALVE, 1.600 X 0.010 IN.
-
142604-645 PISTON, 0.055 IN., ORIFICEPISTON, 0.055 IN., ORIFICE
-
152604-632 VALVE, 1.425 X 0.012 IN.VALVE, 1.425 X 0.012 IN.
-
160603-891 VALVE, 1.300 X 0.012 IN.VALVE, 1.300 X 0.012 IN.
-
170603-882 VALVE, 1.100 X 0.012 IN.VALVE, 1.100 X 0.012 IN.
-
180603-881 VALVE, 1.000 X 0.012 IN.VALVE, 1.000 X 0.012 IN.
-
190603-886 VALVE, 0.900 X 0.015 IN.VALVE, 0.900 X 0.015 IN.
-
200603-885 VALVE, 0.800 X 0.015 IN.VALVE, 0.800 X 0.015 IN.
-
210603-389 WASHER, BACKUPWASHER, BACKUP
-
220603-301 NUTNUT
-
232604-886 PISTON, FLOATINGPISTON, FLOATING
-
242604-889 DECAL, SHOCKDECAL, SHOCK
-
252604-621 BODY, SHOCKBODY, SHOCK
-
260703-341 VALVE, PRESSURE ASSY (INC. 27)VALVE, PRESSURE ASSY (INC. 27)
-
271604-318 O-RINGO-RING
-
280624-097 SCREW, MACHINESCREW, MACHINE
-
282639-149 OIL, GAS SHOCK, 6 QT CASEOIL, GAS SHOCK, 6 QT CASE
