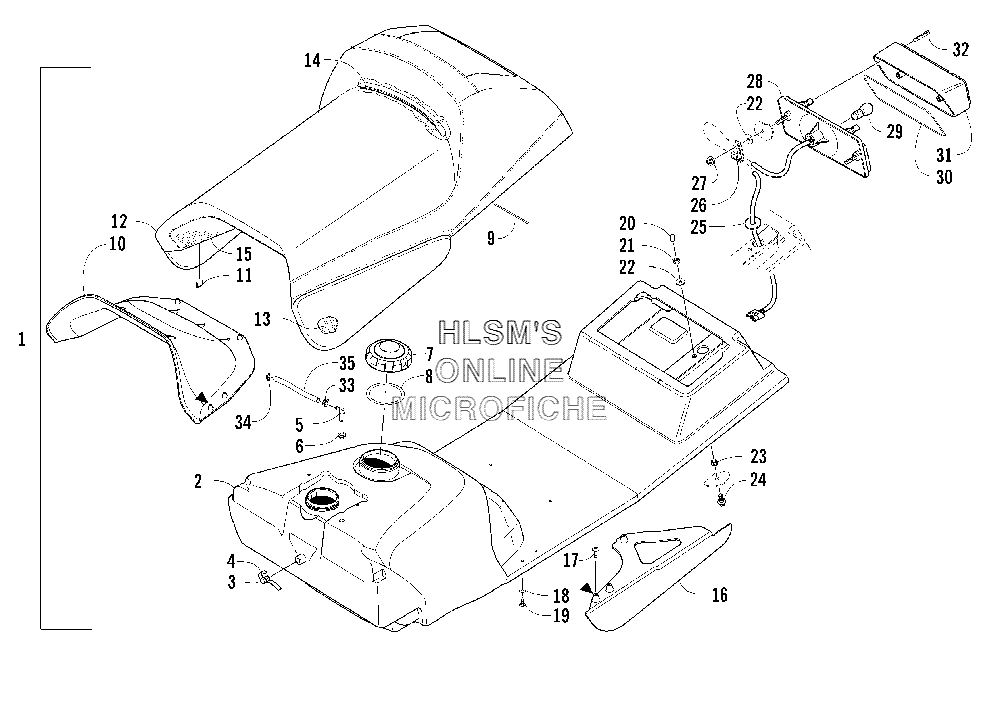

GAS TANK- SEAT- AND TAILLIGHT ASSEMBLY для Arctic Cat T660 Turbo ST (GREEN) INTERNATIONAL - 2006 года выпуска`
-
№АртикулНазвание
-
11718-973 COMPLETE SEAT ASSY (INC. 2, 19)COMPLETE SEAT ASSY (INC. 2, 19)
-
20770-740 TANK, GAS/SEAT, BASE (INC. 3, 8)TANK, GAS/SEAT, BASE (INC. 3, 8)
-
30670-243 PLUG, GAS TANKPLUG, GAS TANK
-
40670-289 TAPE, TEFLONTAPE, TEFLON
-
51670-494 VENT, GAS TANKVENT, GAS TANK
-
61670-325 GROMMET, GAS TANKGROMMET, GAS TANK
-
71670-199 CAP, GAS TANK (INC. 8)CAP, GAS TANK (INC. 8)
-
81670-228 SEAL, GAS TANK CAPSEAL, GAS TANK CAP
-
92606-943 WIRE, SEATWIRE, SEAT
-
101606-126 INSERT, SEAT FOAMINSERT, SEAT FOAM
-
110624-528 STAPLE, SEAT COVERSTAPLE, SEAT COVER
-
123706-065 COVER, SEAT (INC. 13, 14)COVER, SEAT (INC. 13, 14)
-
130617-417 FOAM, TUNNEL PADFOAM, TUNNEL PAD
-
143606-363 WIRE, SEATWIRE, SEAT
-
152706-196 FOAM, SEAT CUSHIONFOAM, SEAT CUSHION
-
161606-518 INSERT, SEAT PAD (RIGHT)INSERT, SEAT PAD (RIGHT)
-
161606-519 INSERT, SEAT PAD (LEFT)INSERT, SEAT PAD (LEFT)
-
170623-783 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
188050-217 WASHERWASHER
-
190623-309 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
200623-404 CAP, PROTECTORCAP, PROTECTOR
-
218040-366 NUT, LOCKNUT, LOCK
-
220623-184 WASHERWASHER
-
238048-366 NUT, LOCKNUT, LOCK
-
248020-042 SCREW, CAPSCREW, CAP
-
250617-136 SEAL, FOAM, SEAT, BASESEAL, FOAM, SEAT, BASE
-
263002-964 CLAMP, WIRECLAMP, WIRE
-
270623-038 NUT, LOCKNUT, LOCK
-
280609-091 TAILLIGHT W/SOCKET ASSYTAILLIGHT W/SOCKET ASSY
-
290109-460 BULBBULB
-
300609-092 GASKET, TAILLIGHT LENSGASKET, TAILLIGHT LENS
-
310609-090 LENS, TAILLIGHTLENS, TAILLIGHT
-
320609-093 SCREW, RETAININGSCREW, RETAINING
-
330623-063 CLAMP, HOSECLAMP, HOSE
-
340623-101 CLIP, ROUTING, SNAP (INNER)CLIP, ROUTING, SNAP (INNER)
-
350610-015 HOSE, VENT, 100 FTHOSE, VENT, 100 FT
-
350610-016 HOSE, VENT, 25 FTHOSE, VENT, 25 FT
