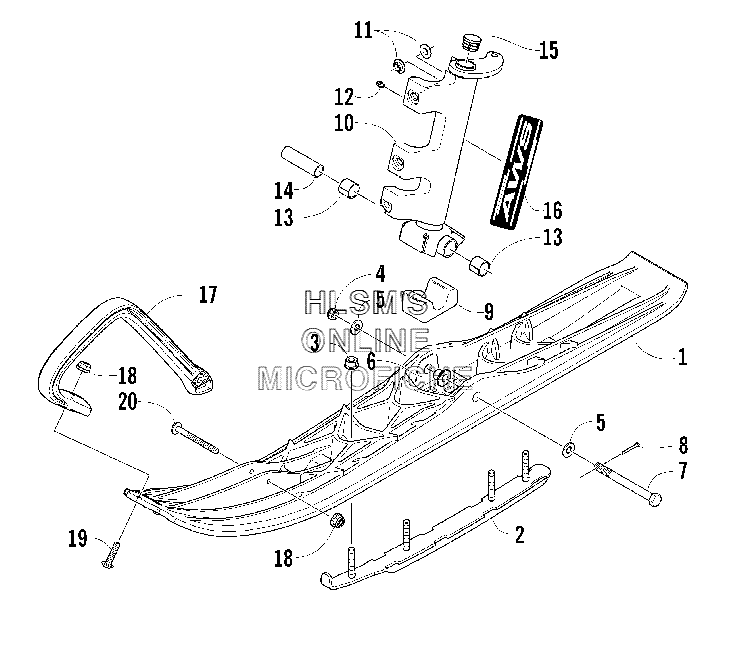

SKI AND SPINDLE ASSEMBLY для Arctic Cat T660 Touring (BLACK) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    2603-599 SKI, PLASTIC
    SKI, PLASTIC
  • 2
    1703-848 WEARBAR (RIGHT)
    WEARBAR (RIGHT)
  • 2
    1703-849 WEARBAR (LEFT)
    WEARBAR (LEFT)
  • 3
    8047-486 NUT, LOCK
    NUT, LOCK
  • 4
    0123-296 NUT, LOCK
    NUT, LOCK
  • 5
    0623-728 WASHER
    WASHER
  • 6
    2603-397 INSERT, SKI
    INSERT, SKI
  • 7
    0623-776 SCREW, CAP
    SCREW, CAP
  • 8
    0123-458 PIN, COTTER
    PIN, COTTER
  • 9
    0603-036 DAMPER, SKI
    DAMPER, SKI
  • 10
    2703-006 SPINDLE, STEERING (RIGHT) (INC. 11, 13)
    SPINDLE, STEERING (RIGHT) (INC. 11, 13)
  • 10
    2703-007 SPINDLE, STEERING (LEFT) (INC. 11, 13)
    SPINDLE, STEERING (LEFT) (INC. 11, 13)
  • 11
    0603-647 INSERT, SPINDLE
    INSERT, SPINDLE
  • 12
    0623-010 FITTING, GREASE
    FITTING, GREASE
  • 13
    0603-158 BEARING
    BEARING
  • 14
    2603-548 AXLE, SPINDLE
    AXLE, SPINDLE
  • 15
    0623-831 CAP, SPINDLE
    CAP, SPINDLE
  • 16
    6611-800 DECAL, "AWS", SPINDLE (RIGHT)
    DECAL, "AWS", SPINDLE (RIGHT)
  • 16
    6611-801 DECAL, "AWS", SPINDLE (LEFT)
    DECAL, "AWS", SPINDLE (LEFT)
  • 17
    2603-598 HANDLE, PLASTIC
    HANDLE, PLASTIC
  • 18
    8047-366 NUT, LOCK
    NUT, LOCK
  • 19
    8017-582 SCREW, MACHINE
    SCREW, MACHINE
  • 20
    8017-587 SCREW, MACHINE
    SCREW, MACHINE
