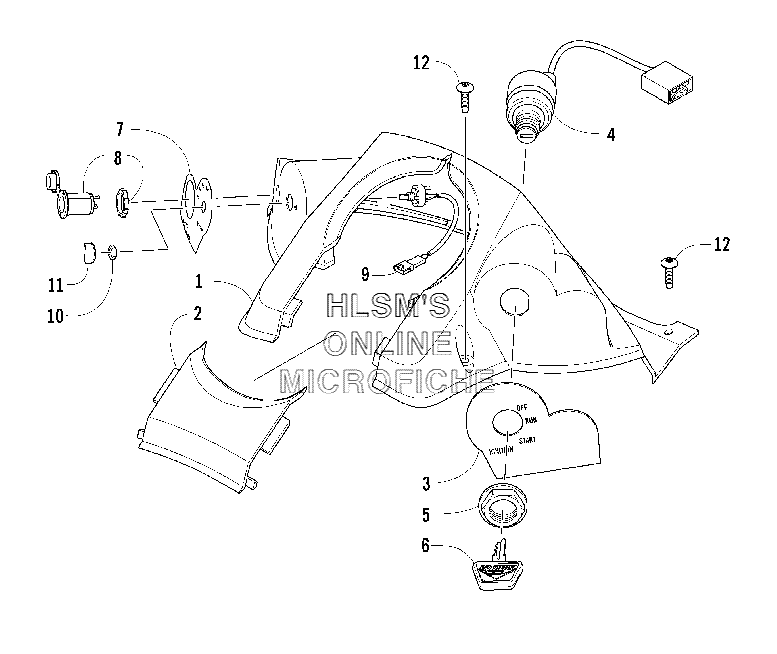

CONSOLE AND SWITCH ASSEMBLY для Arctic Cat T660 Touring (BLACK) - 2006 года выпуска
-
№АртикулНазвание
-
14606-048 CONSOLECONSOLE
-
21606-105 DOOR, CONSOLEDOOR, CONSOLE
-
36611-643 DECAL, CONSOLE (RIGHT)DECAL, CONSOLE (RIGHT)
-
40609-698 SWITCH, IGNITION (INC. 5, 6)SWITCH, IGNITION (INC. 5, 6)
-
50609-707 NUT, RETAININGNUT, RETAINING
-
76611-981 DECAL, CONSOLE (LEFT)DECAL, CONSOLE (LEFT)
-
80641-897 OUTLET, ACCESSORYOUTLET, ACCESSORY
-
91686-285 HARNESS, SWITCH, OPERATOR SEAT HEATER (INC. 10)HARNESS, SWITCH, OPERATOR SEAT HEATER (INC. 10)
-
110609-772 KNOB, SWITCHKNOB, SWITCH
-
121623-175 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
