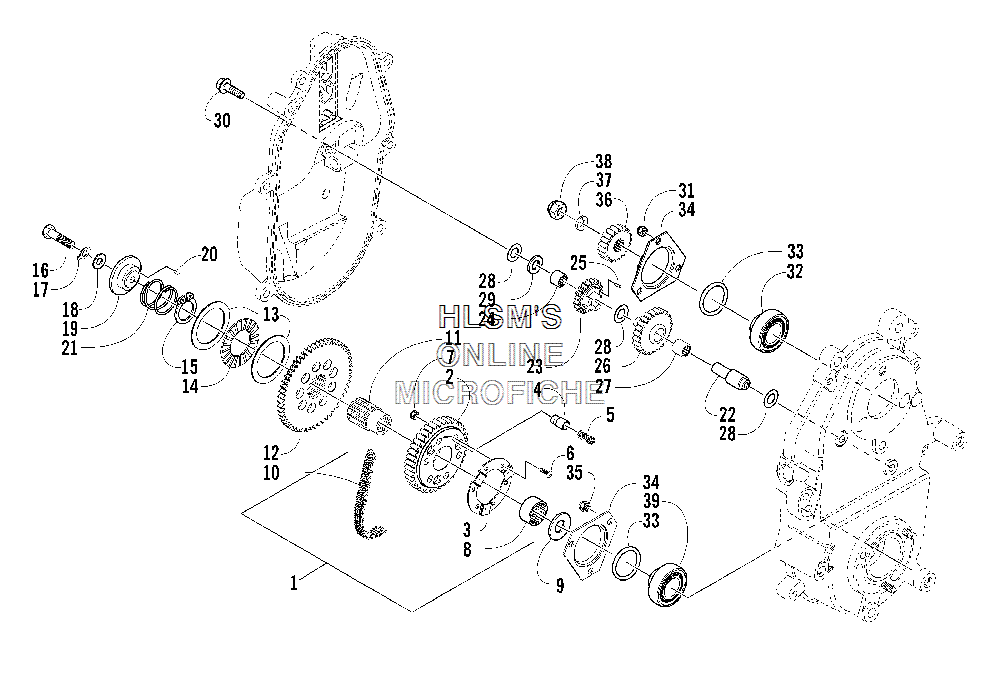

DRIVE/REVERSE DROPCASE ASSY. для Arctic Cat Sabercat 700 EFI LX (RED) - 2006 года выпуска

№

Артикул

Название
1

0702-170 SPROCKET ASSY. - 39T (INC. 2-8)

SPROCKET ASSY. - 39T (INC. 2-8)

41 180 ₽
1

0702-633 SPROCKET ASSY. - 40T (OVER 5,000 FT ALT.) (INC. 2-8)

SPROCKET ASSY. - 40T (OVER 5,000 FT ALT.) (INC. 2-8)

53 660 ₽
3

0602-144 RETAINER, SPRING

RETAINER, SPRING

2 070 ₽
4

0602-133 PIN, SLIP

PIN, SLIP

2 700 ₽
5

0602-138 SPRING, COMPRESSION

SPRING, COMPRESSION

460 ₽
6

0623-182 SCREW, CAP

SCREW, CAP

40 ₽
7

0123-430 NUT, LOCK

NUT, LOCK

400 ₽
8

0602-016 BEARING

BEARING

3 530 ₽
9

0602-012 SPACER, SHAFT

SPACER, SHAFT

2 910 ₽
10

1602-042 CHAIN - 72P

CHAIN - 72P

17 470 ₽
11

1602-048 EXTENSION, DRIVESHAFT

EXTENSION, DRIVESHAFT

19 340 ₽
12

0702-048 GEAR, REVERSE - 55T (INC. 13-15)

GEAR, REVERSE - 55T (INC. 13-15)

64 060 ₽
13

0602-023 WASHER, THRUST

WASHER, THRUST

2 280 ₽
14

0602-022 BEARING, THRUST

BEARING, THRUST

3 530 ₽
15

0602-024 RING, RETAINING

RING, RETAINING

610 ₽
16

8002-231 SCREW, CAP

SCREW, CAP

250 ₽
17

1602-046 WASHER, TAB LOCK

WASHER, TAB LOCK

0 ₽
18

8050-272 WASHER, FLAT

WASHER, FLAT

40 ₽
19

0702-372 RETAINER, SHAFT (INC. 20)

RETAINER, SHAFT (INC. 20)

5 820 ₽
20

8070-153 PIN, SPRING

PIN, SPRING

60 ₽
21

0602-028 SPRING, RETURN

SPRING, RETURN

3 320 ₽
22

0602-872 SHAFT, REVERSE

SHAFT, REVERSE

16 840 ₽
23

0702-365 IDLER, REVERSE - ASSY. - 19T (INC. 24)

IDLER, REVERSE - ASSY. - 19T (INC. 24)

26 620 ₽
24

1602-045 BEARING

BEARING

2 910 ₽
25

0602-366 ALIGNER, IDLER - PIN

ALIGNER, IDLER - PIN

210 ₽
26

0702-371 IDLER, REVERSE - 20T (INC. 27)

IDLER, REVERSE - 20T (INC. 27)

44 300 ₽
26

0702-322 IDLER, REVERSE - 24T (OVER 5,000 FT ALT.) (INC. 27)

IDLER, REVERSE - 24T (OVER 5,000 FT ALT.) (INC. 27)

31 610 ₽
27

0602-205 BEARING, CAGED

BEARING, CAGED

5 610 ₽
28

0602-215 WASHER, THRUST (.625 ID X.030 X)

WASHER, THRUST (.625 ID X.030 X)

580 ₽
29

1602-044 WASHER, THRUST (.625 ID X .126)

WASHER, THRUST (.625 ID X .126)

2 070 ₽
30

8020-130 SCREW, CAP

SCREW, CAP

150 ₽
31

8041-426 NUT, LOCK

NUT, LOCK

60 ₽
32

1602-052 BEARING, 7/8 IN.

BEARING, 7/8 IN.

12 680 ₽
33

0107-003 SEAL, O-RING

SEAL, O-RING

210 ₽
34

1602-521 PLATE, FLANGE

PLATE, FLANGE

17 880 ₽
35

8040-426 NUT, LOCK

NUT, LOCK

60 ₽
36

0602-446 SPROCKET - 24T

SPROCKET - 24T

22 670 ₽
36

0602-455 SPROCKET - 22T (OVER 5,000 FT ALT.)

SPROCKET - 22T (OVER 5,000 FT ALT.)

11 020 ₽
37

0623-231 WASHER, SPRING

WASHER, SPRING

650 ₽
38

0623-465 NUT, LOCK

NUT, LOCK

1 040 ₽
39

1602-051 BEARING, 1 IN.

BEARING, 1 IN.

11 850 ₽
