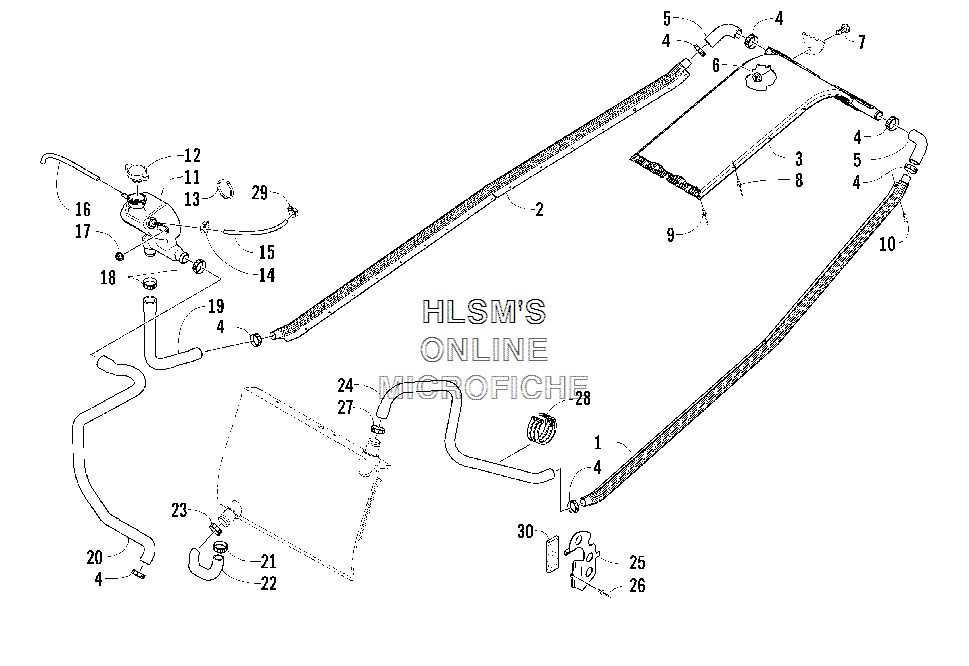

COOLING ASSY. для Arctic Cat Sabercat 700 EFI LX (RED) - 2006 года выпуска

№

Артикул

Название
1

2706-559 HEAT EXCHANGER - LEFT TUBE

HEAT EXCHANGER - LEFT TUBE
2

2706-558 HEAT EXCHANGER - RIGHT TUBE

HEAT EXCHANGER - RIGHT TUBE
3

2706-999 HEAT EXCHANGER, REAR

HEAT EXCHANGER, REAR
4

1623-229 CLAMP, HOSE

CLAMP, HOSE
5

0610-567 HOSE, COOLANT - REAR HEAT EXCHANGER

HOSE, COOLANT - REAR HEAT EXCHANGER
6

8041-246 NUT, LOCK

NUT, LOCK
7

8017-397 SCREW, MACHINE

SCREW, MACHINE
8

8060-504 RIVET, BLIND-DH SS53 BLK

RIVET, BLIND-DH SS53 BLK
9

1623-405 RIVET, BLIND 5/32-SS

RIVET, BLIND 5/32-SS
10

1623-061 SCREW, PLASTITE

SCREW, PLASTITE
11

3606-349 TANK, COOLANT

TANK, COOLANT
12

0606-268 CAP, FILLER NECK

CAP, FILLER NECK
13

0123-788 CABLE TIE - 8 IN.

CABLE TIE - 8 IN.
14

0623-063 CLAMP, HOSE

CLAMP, HOSE
15

0610-538 HOSE, VENT - 25 FT

HOSE, VENT - 25 FT
16

0610-015 HOSE, VENT - 100 FT

HOSE, VENT - 100 FT
16

0610-016 HOSE, VENT - 25 FT

HOSE, VENT - 25 FT
17

8047-366 NUT, LOCK

NUT, LOCK
18

1623-092 CLAMP, HOSE

CLAMP, HOSE
19

0610-571 HOSE, COOLANT - RIGHT TUBE/COOLANT TANK

HOSE, COOLANT - RIGHT TUBE/COOLANT TANK
20

0610-573 HOSE, COOLANT - COOLANT TANK/ENGINE

HOSE, COOLANT - COOLANT TANK/ENGINE
21

1623-418 CLAMP, HOSE

CLAMP, HOSE
22

0610-648 HOSE, COOLANT - ENGINE/FRONT HEAT EXCHANGER

HOSE, COOLANT - ENGINE/FRONT HEAT EXCHANGER
23

1623-186 CLAMP, HOSE

CLAMP, HOSE
24

0610-570 HOSE, COOLANT - FRONT HEAT EXCHANGER/LEFT TUBE

HOSE, COOLANT - FRONT HEAT EXCHANGER/LEFT TUBE
25

3606-354 PROTECTOR, HOSE

PROTECTOR, HOSE
26

0623-166 RIVET, CHERRY-5/32 X 3/16

RIVET, CHERRY-5/32 X 3/16
27

1623-187 CLAMP, HOSE

CLAMP, HOSE
28

0623-540 CABLE TIE - TRIPLE

CABLE TIE - TRIPLE
29

0124-045 CLAMP, HOSE

CLAMP, HOSE
30

0406-288 PAD, BATTERY

PAD, BATTERY
