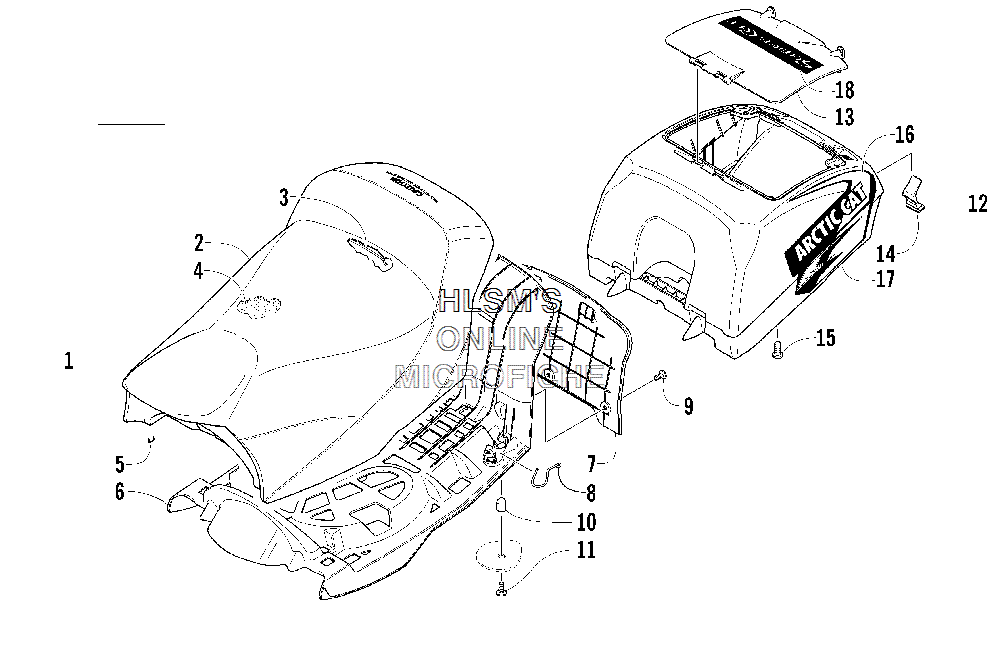

SEAT AND STORAGE BOX ASSEMBLY для Arctic Cat Sabercat 600 EFI LX (RED) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    7998-599 COMPLETE SEAT ASSEMBLY (INC. 2, 9)
    COMPLETE SEAT ASSEMBLY (INC. 2, 9)
  • 2
    3706-043 COVER, SEAT (INC. 3)
    COVER, SEAT (INC. 3)
  • 3
    3606-369 WIRE, SEAT
    WIRE, SEAT
  • 4
    0717-176 FOAM, SEAT
    FOAM, SEAT
  • 5
    0624-528 STAPLE
    STAPLE
  • 6
    3606-056 BASE, SEAT
    BASE, SEAT
  • 7
    3606-248 PANEL, SEAT
    PANEL, SEAT
  • 8
    1623-177 CLIP, RETAINING
    CLIP, RETAINING
  • 9
    1623-158 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 10
    1623-138 LATCH, SEAT
    LATCH, SEAT
  • 11
    8017-667 SCREW, MACHINE
    SCREW, MACHINE
  • 12
    3606-074 BOX, STORAGE (INC. 13, 15)
    BOX, STORAGE (INC. 13, 15)
  • 13
    3606-072 COVER, STORAGE BOX
    COVER, STORAGE BOX
  • 14
    3606-357 STRAP, HOLD, DOWN
    STRAP, HOLD, DOWN
  • 15
    1623-022 SCREW
    SCREW
  • 16
    6611-742 DECAL, STORAGE BOX (UPPER/RIGHT)
    DECAL, STORAGE BOX (UPPER/RIGHT)
  • 16
    6611-743 DECAL, STORAGE BOX (UPPER/LEFT)
    DECAL, STORAGE BOX (UPPER/LEFT)
  • 17
    6611-744 DECAL, STORAGE BOX (LOWER/RIGHT)
    DECAL, STORAGE BOX (LOWER/RIGHT)
  • 17
    6611-745 DECAL, STORAGE BOX (LOWER/LEFT)
    DECAL, STORAGE BOX (LOWER/LEFT)
  • 18
    6611-682 DECAL, BOX, "SABERCAT"
    DECAL, BOX, "SABERCAT"
