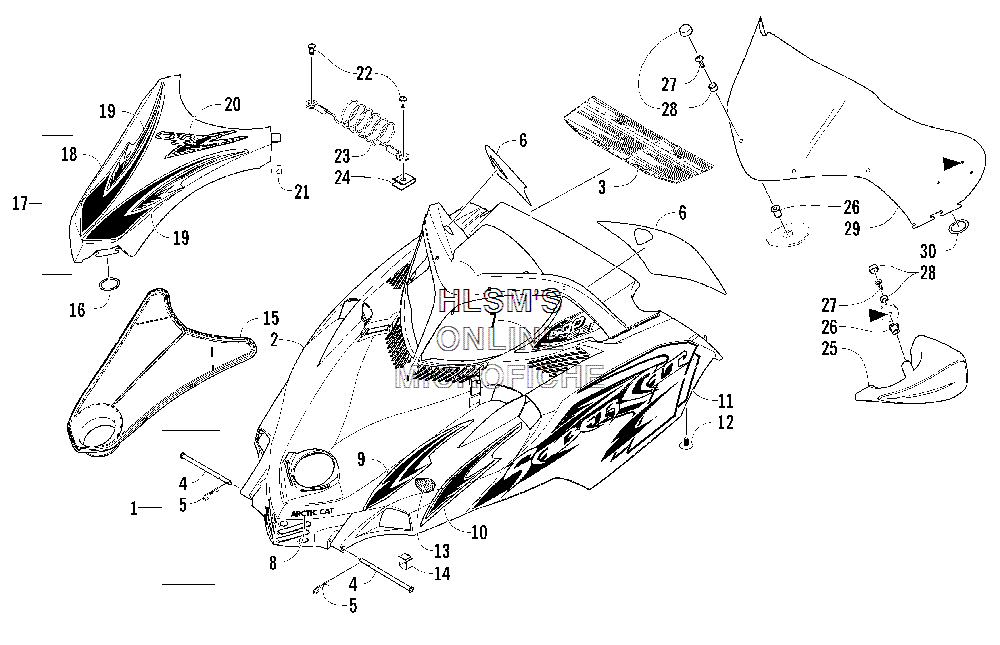

HOOD AND WINDSHIELD ASSEMBLY для Arctic Cat Sabercat 600 EFI LX (RED) - 2006 года выпуска
-
№АртикулНазвание
-
11718-804 HOOD W/DECALS (INC. 2, 11)HOOD W/DECALS (INC. 2, 11)
-
21718-663 HOOD W/O DECALS (INC. 3, 5)HOOD W/O DECALS (INC. 3, 5)
-
35611-483 DECAL, WARNING, GENERAL AND BRAKEDECAL, WARNING, GENERAL AND BRAKE
-
41623-026 PIN, CLEVISPIN, CLEVIS
-
50623-847 CLIP, HAIRPINCLIP, HAIRPIN
-
66611-732 DECAL, CONSOLE (RIGHT)DECAL, CONSOLE (RIGHT)
-
66611-733 DECAL, CONSOLE (LEFT)DECAL, CONSOLE (LEFT)
-
76611-722 DECAL, HEADLIGHT (RIGHT)DECAL, HEADLIGHT (RIGHT)
-
76611-723 DECAL, HEADLIGHT (LEFT)DECAL, HEADLIGHT (LEFT)
-
86611-737 DECAL, HOOD, "ARCTIC CAT"DECAL, HOOD, "ARCTIC CAT"
-
96611-726 DECAL, HOOD (UPPER/RIGHT)DECAL, HOOD (UPPER/RIGHT)
-
96611-727 DECAL, HOOD (UPPER/LEFT)DECAL, HOOD (UPPER/LEFT)
-
106611-728 DECAL, HOOD, FORWARD (RIGHT)DECAL, HOOD, FORWARD (RIGHT)
-
106611-729 DECAL, HOOD, FORWARD (LEFT)DECAL, HOOD, FORWARD (LEFT)
-
116611-730 DECAL, HOOD (LOWER/RIGHT)DECAL, HOOD (LOWER/RIGHT)
-
116611-731 DECAL, HOOD (LOWER/LEFT)DECAL, HOOD (LOWER/LEFT)
-
120623-544 PLUGPLUG
-
130617-466 FOAM, HOODFOAM, HOOD
-
140123-394 CLIP, RETAINING, FOAMCLIP, RETAINING, FOAM
-
153606-150 SCREEN, HOODSCREEN, HOOD
-
162606-801 O-RINGO-RING
-
171718-787 COVER, HOOD W/DECALS (INC. 18, 21)COVER, HOOD W/DECALS (INC. 18, 21)
-
182706-761 COVER, HOOD W/O DECALSCOVER, HOOD W/O DECALS
-
196611-738 DECAL, COVER (RIGHT)DECAL, COVER (RIGHT)
-
196611-739 DECAL, COVER (LEFT)DECAL, COVER (LEFT)
-
206611-735 DECAL, COVER, CRESTDECAL, COVER, CREST
-
212606-007 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
220623-302 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
232606-726 CABLE, HOODCABLE, HOOD
-
241623-052 U, NUTU, NUT
-
252639-477 KIT, MIRROR (INC. SIX NO. 26, 28)KIT, MIRROR (INC. SIX NO. 26, 28)
-
260623-845 NUT, EXPANSIONNUT, EXPANSION
-
270623-902 SCREW, MACHINESCREW, MACHINE
-
280124-054 SNAP CAP W/WASHERSNAP CAP W/WASHER
-
293606-947 WINDSHIELDWINDSHIELD
-
300616-032 O-RINGO-RING
