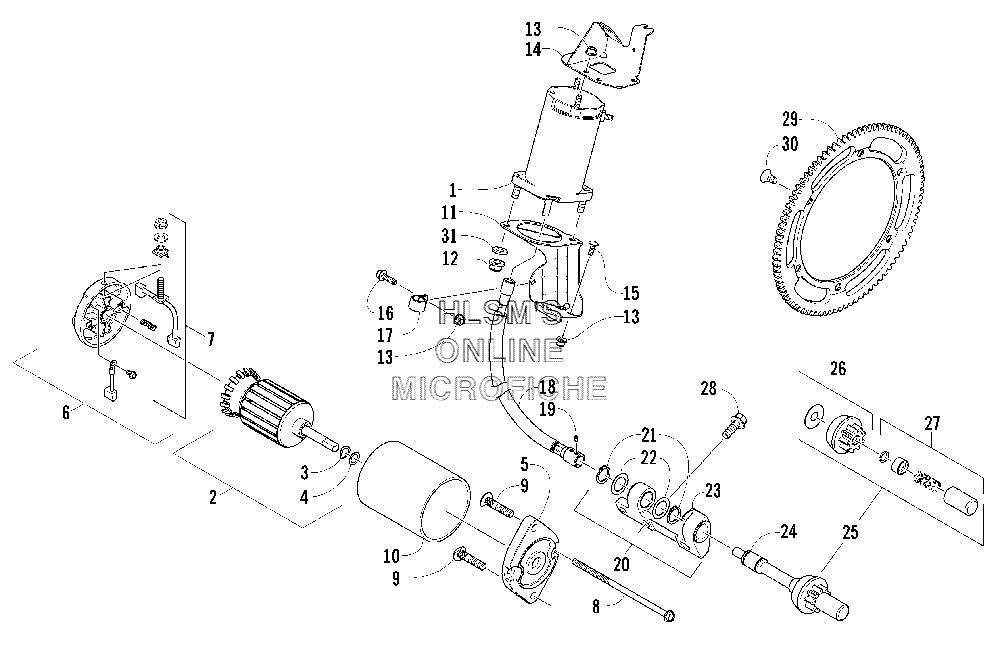

FLEX-DRIVE STARTER MOTOR ASSEMBLY для Arctic Cat Sabercat 500 EFI LX (GREEN) - 2006 года выпуска
-
№АртикулНазвание
-
10745-143 MOTOR, STARTER ASSEMBLY (INC. 2-10)MOTOR, STARTER ASSEMBLY (INC. 2-10)
-
20645-296 ARMATURE ASSEMBLY (INC. 3-4)ARMATURE ASSEMBLY (INC. 3-4)
-
30645-131 WASHER, WAVEWASHER, WAVE
-
40645-293 WASHER, THRUSTWASHER, THRUST
-
50645-297 CAP, DRIVECAP, DRIVE
-
60645-313 CAP, COMMUTATOR (INC. 7)CAP, COMMUTATOR (INC. 7)
-
70645-275 BRUSH AND SPRING KITBRUSH AND SPRING KIT
-
80645-128 THROUGH-BOLTTHROUGH-BOLT
-
90623-093 BOLT, RIBBEDBOLT, RIBBED
-
110745-207 BRACKET, MOUNTING STARTER MOTORBRACKET, MOUNTING STARTER MOTOR
-
128047-426 NUT, LOCKNUT, LOCK
-
138047-366 NUT, LOCKNUT, LOCK
-
140745-260 BRACKET, MOUNTING STARTER MOTORBRACKET, MOUNTING STARTER MOTOR
-
158011-039 BOLT, CARRIAGEBOLT, CARRIAGE
-
168020-040 SCREW, CAPSCREW, CAP
-
171623-080 CLAMP, FLEX-DRIVE SHAFTCLAMP, FLEX-DRIVE SHAFT
-
180745-221 SHAFT, FLEX-DRIVE (INC. TWO NO. 19)SHAFT, FLEX-DRIVE (INC. TWO NO. 19)
-
190623-891 SCREW, SET SOCKETSCREW, SET SOCKET
-
200745-208 BRACKET, PINION DRIVE ASSEMBLY (INC. 21-27)BRACKET, PINION DRIVE ASSEMBLY (INC. 21-27)
-
210645-382 RING, SNAPRING, SNAP
-
220645-429 WASHER, THRUSTWASHER, THRUST
-
230745-165 BRACKET, PINION DRIVEBRACKET, PINION DRIVE
-
240745-170 DRIVE, PINION FLEX-DRIVE SHAFT (INC. 25-27)DRIVE, PINION FLEX-DRIVE SHAFT (INC. 25-27)
-
250745-224 PINION DRIVE ASSEMBLY KIT (INC. 26-27)PINION DRIVE ASSEMBLY KIT (INC. 26-27)
-
260645-380 GEAR, PINION-RUBBERGEAR, PINION-RUBBER
-
270645-186 PINION STOPPER ASSEMBLYPINION STOPPER ASSEMBLY
-
288026-131 SCREW, CAPSCREW, CAP
-
290645-367 RING GEARRING GEAR
-
301623-128 SCREW, MACHINE SOCKET HEADSCREW, MACHINE SOCKET HEAD
-
310123-053 WASHERWASHER
