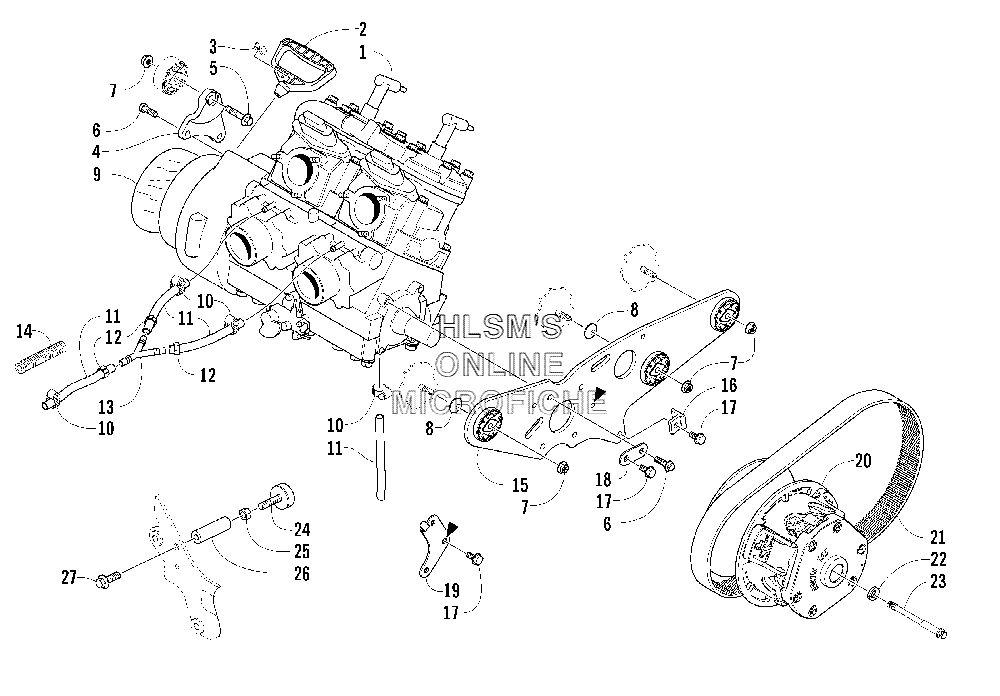

ENGINE AND RELATED PARTS для Arctic Cat Sabercat 500 EFI LX (GREEN) - 2006 года выпуска`
-
№АртикулНазвание
-
10662-455 ENGINE, AX50L5 WITHOUT EFI COMPONENTSENGINE, AX50L5 WITHOUT EFI COMPONENTS
-
20636-363 HANDLE, RECOILHANDLE, RECOIL
-
30606-885 CAP, RECOIL HANDLECAP, RECOIL HANDLE
-
40608-388 BRACKET, ENGINE MOUNTING (RIGHT)BRACKET, ENGINE MOUNTING (RIGHT)
-
58020-136 SCREW, CAPSCREW, CAP
-
68408-820 SCREW, CAPSCREW, CAP
-
78048-426 NUT, LOCKNUT, LOCK
-
80623-987 WASHERWASHER
-
91670-328 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
100623-373 CLAMP, HOSECLAMP, HOSE
-
110610-076 HOSE, COOLANT 10 FTHOSE, COOLANT 10 FT
-
120610-581 CLAMP, HOSECLAMP, HOSE
-
131670-596 Y-FITTINGY-FITTING
-
140619-776 CONDUIT, FLEXIBLE 5 FTCONDUIT, FLEXIBLE 5 FT
-
150708-431 BRACKET, ENGINE MOUNTING (LEFT) (INC. 16 AND ONE NO. 17)BRACKET, ENGINE MOUNTING (LEFT) (INC. 16 AND ONE NO. 17)
-
160608-400 BUMPER, TORQUEBUMPER, TORQUE
-
170623-765 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
180608-407 PLATE, REINFORCEMENTPLATE, REINFORCEMENT
-
190608-397 PLATE, REINFORCEMENTPLATE, REINFORCEMENT
-
200725-515 CLUTCH, DRIVECLUTCH, DRIVE
-
210627-020 BELT, DRIVEBELT, DRIVE
-
220623-210 WASHER, HIGH COLLARWASHER, HIGH COLLAR
-
230623-804 BOLT, CLUTCHBOLT, CLUTCH
-
240608-396 BUMPER, TORQUE ENGINEBUMPER, TORQUE ENGINE
-
258042-486 NUTNUT
-
260608-394 TUBE, TORQUE BUMPERTUBE, TORQUE BUMPER
-
278020-220 SCREW, CAPSCREW, CAP
