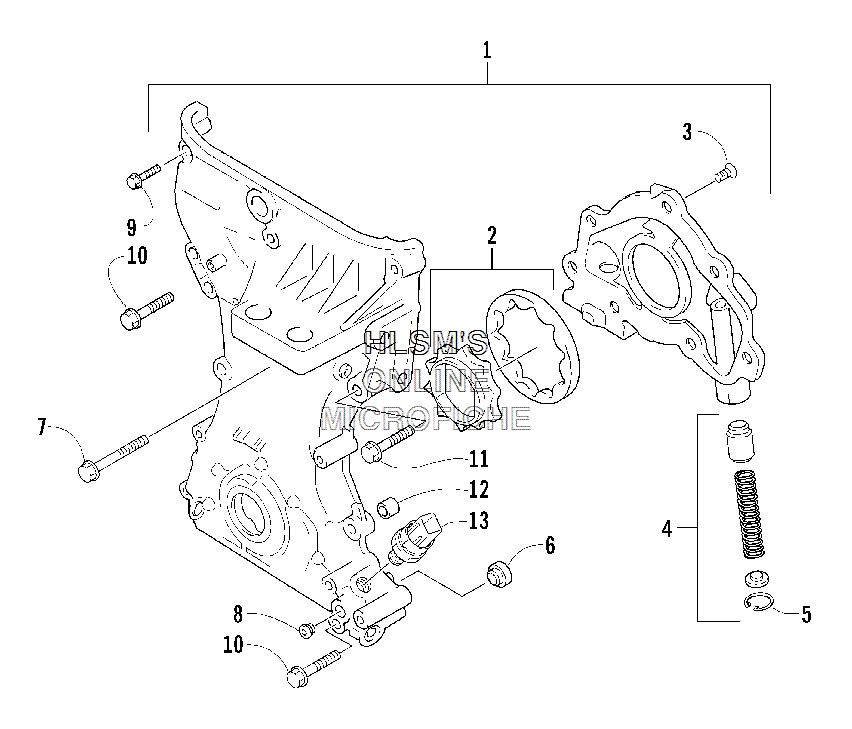

TIMING CHAIN COVER/OIL PUMP ASSEMBLY для Arctic Cat Panther 660 TOURING - 2006 года выпуска`
-
№АртикулНазвание
-
13006-219 TIMING CHAIN COVER/OIL PUMP ASSEMBLY (INC. 2, 5)TIMING CHAIN COVER/OIL PUMP ASSEMBLY (INC. 2, 5)
-
23006-220 ROTOR SETROTOR SET
-
33004-284 SCREWSCREW
-
43006-221 VALVE SET (INC. 5)VALVE SET (INC. 5)
-
53006-374 CIRCLIPCIRCLIP
-
63007-032 FILTER, OIL GALLERYFILTER, OIL GALLERY
-
73006-755 BOLTBOLT
-
83423-386 PLUGPLUG
-
93008-376 BOLTBOLT
-
103004-427 BOLTBOLT
-
113004-948 BOLTBOLT
-
123005-206 PIN, DOWELPIN, DOWEL
-
133006-844 SWITCH, OIL PRESSURE, ASSEMBLYSWITCH, OIL PRESSURE, ASSEMBLY
