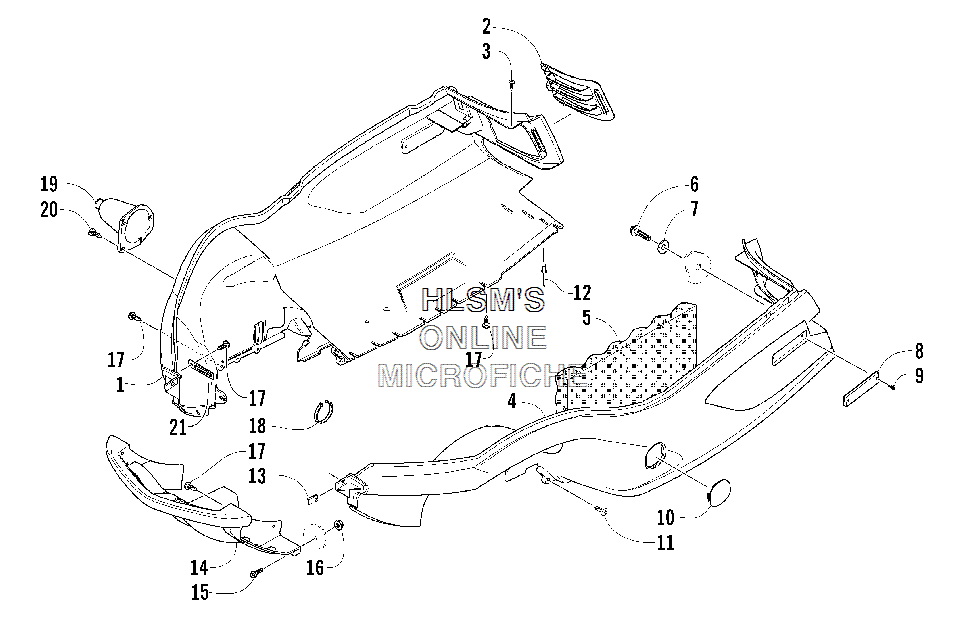

BELLY PAN AND FRONT BUMPER ASSEMBLY для Arctic Cat Panther 660 TOURING - 2006 года выпуска`
-
№АртикулНазвание
-
13706-320 BELLY PAN (RIGHT)BELLY PAN (RIGHT)
-
21606-044 LOUVER, AIR, INTAKE (RIGHT)LOUVER, AIR, INTAKE (RIGHT)
-
21606-045 LOUVER, AIR, INTAKE (LEFT)LOUVER, AIR, INTAKE (LEFT)
-
30623-378 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
42706-681 BELLY PAN (LEFT)BELLY PAN (LEFT)
-
50617-315 FOAM, BELLY PAN (LEFT)FOAM, BELLY PAN (LEFT)
-
60623-647 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
70623-184 WASHERWASHER
-
80606-526 REFLECTOR (FRONT) (AMBER)REFLECTOR (FRONT) (AMBER)
-
90623-269 CLIP, RETAININGCLIP, RETAINING
-
101606-767 PANEL, ACCESS, DRIVE CLUTCHPANEL, ACCESS, DRIVE CLUTCH
-
110623-784 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
128061-508 RIVETRIVET
-
130623-427 NUT, UNUT, U
-
141606-949 BUMPER (FRONT)BUMPER (FRONT)
-
158020-040 SCREW, CAPSCREW, CAP
-
168048-366 NUT, LOCKNUT, LOCK
-
171623-129 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
180123-788 CABLE TIE, 7.5 IN.CABLE TIE, 7.5 IN.
-
190605-332 BOOT, STEERING (RIGHT)BOOT, STEERING (RIGHT)
-
190605-333 BOOT, STEERING (LEFT)BOOT, STEERING (LEFT)
-
200623-564 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
213002-964 CLAMP, WIRECLAMP, WIRE
