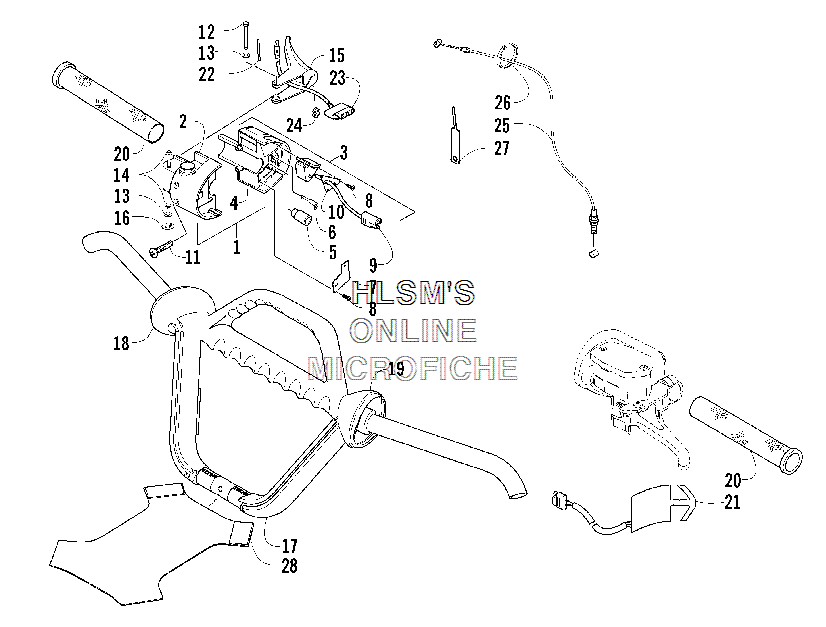

HANDLEBAR AND CONTROLS для Arctic Cat M7 EFI Ltd162'' (ORANGE) - 2006 года выпуска
-
№АртикулНазвание
-
10609-675 CONTROL - ASSY. (INC. 2-10)CONTROL - ASSY. (INC. 2-10)
-
20609-674 CONTROL, THROTTLE - STOP SWITCH HALFCONTROL, THROTTLE - STOP SWITCH HALF
-
30609-673 CONTROL, THROTTLE - THUMBWARMER ASSY. (INC. 4-10)CONTROL, THROTTLE - THUMBWARMER ASSY. (INC. 4-10)
-
40609-495 CONTROL, THROTTLE - THUMBWARMER HALF W/O COMPONENTSCONTROL, THROTTLE - THUMBWARMER HALF W/O COMPONENTS
-
50609-497 PLUG, RUBBER-IDLE SWITCHPLUG, RUBBER-IDLE SWITCH
-
60609-498 CLIP, RETAINING - THROTTLE CABLECLIP, RETAINING - THROTTLE CABLE
-
70609-496 PLATE, COVERPLATE, COVER
-
80609-312 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
90609-672 SWITCH, THUMBWARMER ASSY. (INC. THREE NO. 8 AND 10)SWITCH, THUMBWARMER ASSY. (INC. THREE NO. 8 AND 10)
-
100609-378 PLATE, COVERPLATE, COVER
-
110609-492 SCREW, MACHINESCREW, MACHINE
-
120609-317 AXLE, LEVER - THROTTLEAXLE, LEVER - THROTTLE
-
130609-036 WASHER, FLATWASHER, FLAT
-
140609-501 WASHER, SHOULDER - THROTTLEWASHER, SHOULDER - THROTTLE
-
150609-368 LEVER, TH-35MM W/O IDLE SWITCHLEVER, TH-35MM W/O IDLE SWITCH
-
160609-040 E-RING, RETAININGE-RING, RETAINING
-
170705-387 HANDLEBAR ASSY.HANDLEBAR ASSY.
-
180605-556 END CAP, THROTTLE - RIGHTEND CAP, THROTTLE - RIGHT
-
190605-557 END CAP, BRAKE - LEFTEND CAP, BRAKE - LEFT
-
201606-442 GRIP, HANDLEBARGRIP, HANDLEBAR
-
210609-681 ELEMENT, HANDWARMER RELEMENT, HANDWARMER R
-
210609-722 ELEMENT, HANDWARMER LELEMENT, HANDWARMER L
-
220617-248 PAD, INSULATORPAD, INSULATOR
-
230609-680 ELEMENT, THUMBWARMERELEMENT, THUMBWARMER
-
240623-262 CLIP, WIRECLIP, WIRE
-
250687-168 CABLE, THROTTLECABLE, THROTTLE
-
260123-788 CABLE TIE - 8 IN.CABLE TIE - 8 IN.
-
271639-963 TOOL, REMOVAL - KIT - THROTTLE CABLETOOL, REMOVAL - KIT - THROTTLE CABLE
-
280705-905 WRAP, HANDLEBARWRAP, HANDLEBAR
