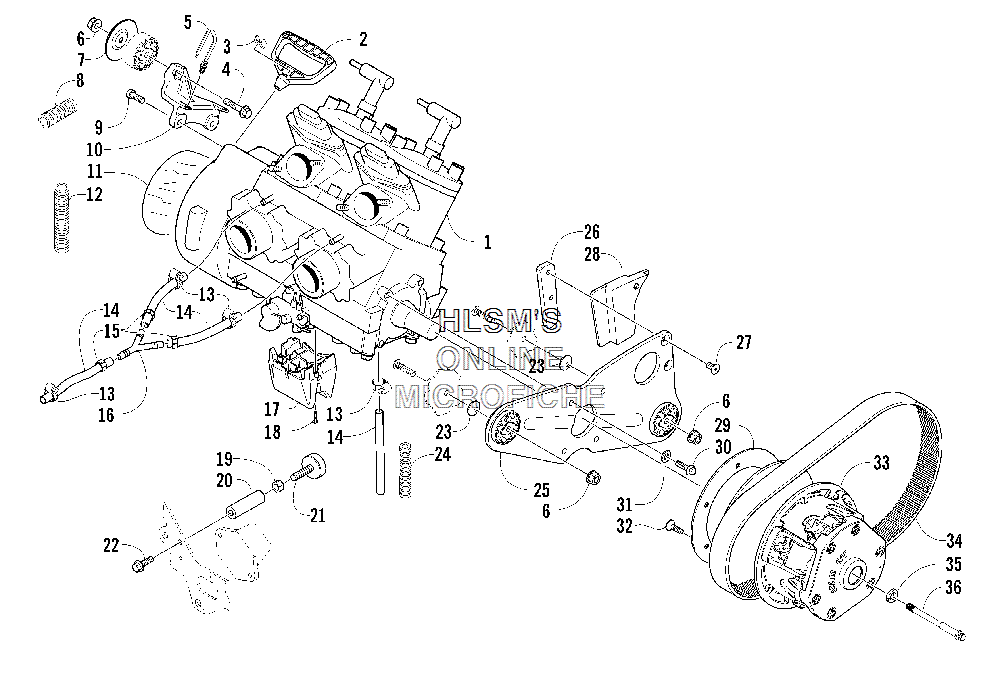

ENGINE AND RELATED PARTS для Arctic Cat M7 EFI Ltd162'' (ORANGE) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    0662-441 ENGINE, AD70L4 W/O EFI COMPONENTS AND W/90° FITTING
    ENGINE, AD70L4 W/O EFI COMPONENTS AND W/90° FITTING
  • 2
    0636-363 HANDLE, RECOIL
    HANDLE, RECOIL
  • 3
    0606-885 CAP, RECOIL HANDLE
    CAP, RECOIL HANDLE
  • 4
    8020-136 SCREW, CAP
    SCREW, CAP
  • 5
    0623-677 CABLE TIE - PUSH-MOUNT
    CABLE TIE - PUSH-MOUNT
  • 6
    8047-426 NUT, LOCK
    NUT, LOCK
  • 7
    4606-317 SHIELD, HEAT - ENGINE MOUNT
    SHIELD, HEAT - ENGINE MOUNT
  • 8
    0619-619 CONDUIT, FLEXIBLE - 4 IN.
    CONDUIT, FLEXIBLE - 4 IN.
  • 9
    8413-830 BOLT (M8 X 1.25P X 30MM LG GR 1)
    BOLT (M8 X 1.25P X 30MM LG GR 1)
  • 10
    0708-461 BRACKET, ENGINE MOUNTING - RIGHT
    BRACKET, ENGINE MOUNTING - RIGHT
  • 11
    1670-328 FOIL, PROTECTIVE
    FOIL, PROTECTIVE
  • 12
    0619-994 CONDUIT, FLEXIBLE (3/4 IN. ID) - 6 IN.
    CONDUIT, FLEXIBLE (3/4 IN. ID) - 6 IN.
  • 13
    0623-373 CLAMP, HOSE
    CLAMP, HOSE
  • 14
    0610-076 HOSE, COOLANT - 10 FT
    HOSE, COOLANT - 10 FT
  • 15
    0610-581 CLAMP, HOSE
    CLAMP, HOSE
  • 16
    1670-596 Y-FITTING
    Y-FITTING
  • 17
    0608-460 BUMPER
    BUMPER
  • 18
    1623-022 SCREW, MACHINE
    SCREW, MACHINE
  • 19
    8042-486 NUT
    NUT
  • 20
    0608-394 TUBE, TORQUE BUMPER
    TUBE, TORQUE BUMPER
  • 21
    0608-396 BUMPER, TORQUE
    BUMPER, TORQUE
  • 22
    8020-220 SCREW, CAP
    SCREW, CAP
  • 23
    0623-987 WASHER, BELLVILE (.312 X .930)
    WASHER, BELLVILE (.312 X .930)
  • 24
    0619-776 CONDUIT, FLEXIBLE - 5 FT
    CONDUIT, FLEXIBLE - 5 FT
  • 25
    0708-469 BRACKET, ENGINE MOUNTING - LEFT (INC. 26-27)
    BRACKET, ENGINE MOUNTING - LEFT (INC. 26-27)
  • 26
    0608-430 SPACER, TORQUE BUMPER
    SPACER, TORQUE BUMPER
  • 27
    1623-459 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 28
    0608-433 BUMPER, TORQUE
    BUMPER, TORQUE
  • 29
    0645-410 DAMPER, CLUTCH
    DAMPER, CLUTCH
  • 30
    8413-825 BOLT (M8 X 1.25P X 25MM LG GR 1)
    BOLT (M8 X 1.25P X 25MM LG GR 1)
  • 31
    8050-252 WASHER, FLAT (5/16 X .875 X .06)
    WASHER, FLAT (5/16 X .875 X .06)
  • 32
    1623-128 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 33
    0725-531 CLUTCH, DRIVE
    CLUTCH, DRIVE
  • 34
    0627-036 BELT, DRIVE
    BELT, DRIVE
  • 35
    0623-210 WASHER, HIGH COLLAR
    WASHER, HIGH COLLAR
  • 36
    0623-804 BOLT, CLUTCH
    BOLT, CLUTCH
