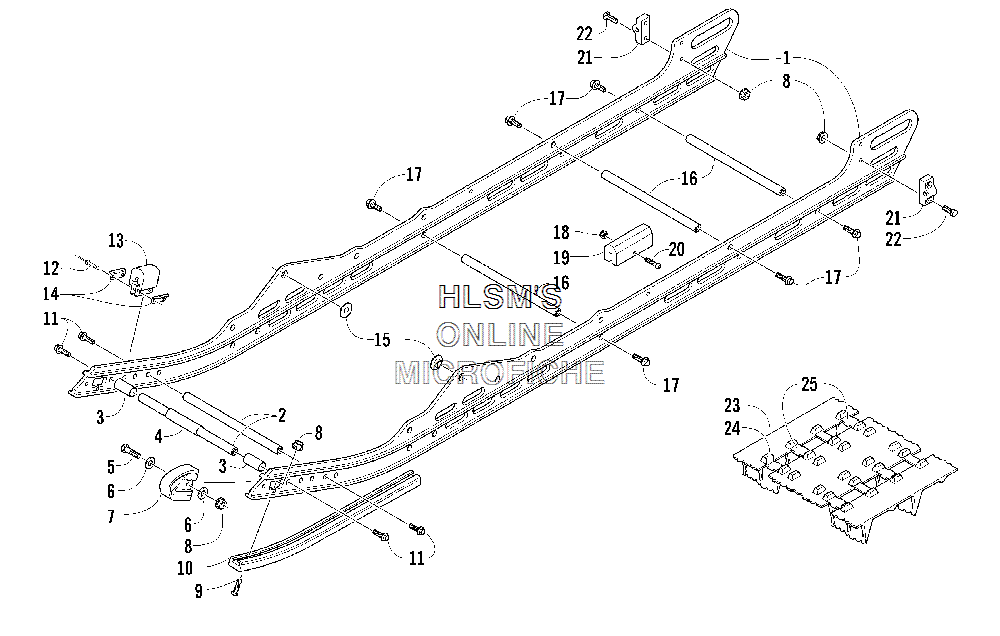

SLIDE RAIL AND TRACK ASSY. для Arctic Cat M7 EFI Ltd162'' CT (ORANGE) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    2604-732 RAIL, FORMED, STAMPED
    RAIL, FORMED, STAMPED
  • 2
    0604-426 SUPPORT, RAIL
    SUPPORT, RAIL
  • 3
    2604-659 SPACER (.750 X .058 X 1.50)
    SPACER (.750 X .058 X 1.50)
  • 4
    2604-660 SPACER (.750 X .058 X 2.50)
    SPACER (.750 X .058 X 2.50)
  • 5
    8002-043 SCREW, CAP
    SCREW, CAP
  • 6
    8050-217 WASHER, FLAT (1/4 X .625 X .065)
    WASHER, FLAT (1/4 X .625 X .065)
  • 7
    2604-724 END CAP, SLIDE RAIL
    END CAP, SLIDE RAIL
  • 8
    8047-366 NUT, LOCK
    NUT, LOCK
  • 9
    0123-859 SCREW, MACHINE
    SCREW, MACHINE
  • 10
    2604-799 WEARSTRIP, SLIDE RAIL
    WEARSTRIP, SLIDE RAIL
  • 11
    8020-134 SCREW, CAP
    SCREW, CAP
  • 12
    8060-633 RIVET, SOLID
    RIVET, SOLID
  • 13
    0604-918 PAD, SHOCK-RUBBER
    PAD, SHOCK-RUBBER
  • 14
    0604-967 BRACKET, RETAINING
    BRACKET, RETAINING
  • 15
    2604-733 INSERT, RAIL
    INSERT, RAIL
  • 16
    0604-930 AXLE, ALUMINUM
    AXLE, ALUMINUM
  • 17
    8020-222 SCREW, CAP
    SCREW, CAP
  • 18
    8041-246 NUT, LOCK
    NUT, LOCK
  • 19
    1604-607 PAD, SHOCK
    PAD, SHOCK
  • 20
    8017-405 SCREW, MACHINE
    SCREW, MACHINE
  • 21
    0704-352 ADJUSTER, TRACK
    ADJUSTER, TRACK
  • 22
    8002-042 SCREW, CAP
    SCREW, CAP
  • 23
    1602-892 TRACK ASSY. (INC. 24, 25)
    TRACK ASSY. (INC. 24, 25)
  • 24
    1602-899 CLIP, GUIDE
    CLIP, GUIDE
  • 25
    0602-541 CLIP, WEAR (CAMOPLAST)
    CLIP, WEAR (CAMOPLAST)
