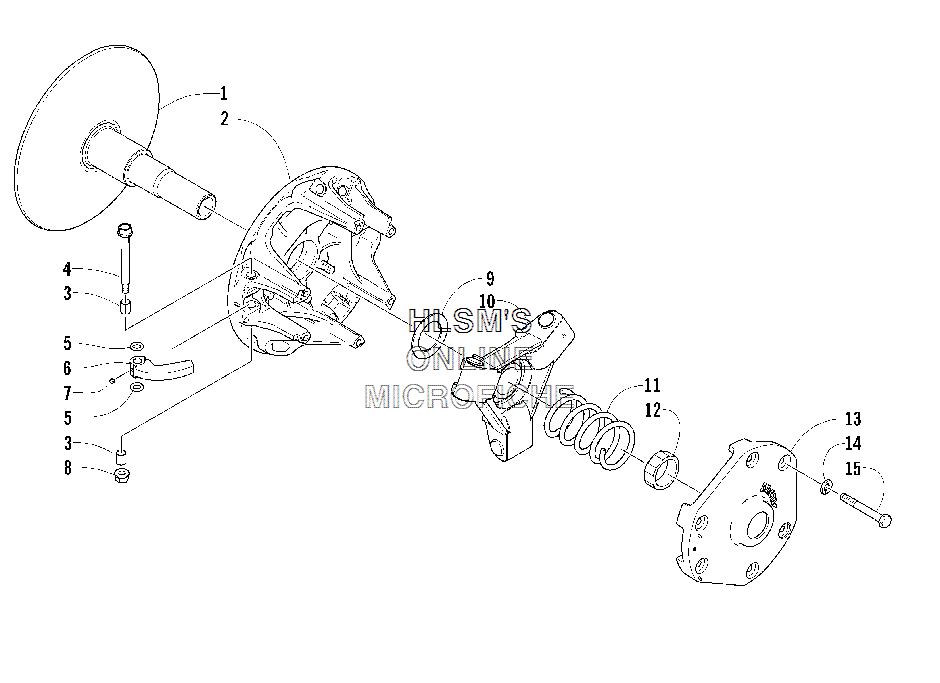

DRIVE CLUTCH для Arctic Cat M7 EFI Ltd162'' CT (ORANGE) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    0646-683 SHEAVE, STATIONARY
    SHEAVE, STATIONARY
  • 2
    0746-142 SHEAVE, MOVABLE (INC. 3)
    SHEAVE, MOVABLE (INC. 3)
  • 3
    0646-372 BEARING
    BEARING
  • 4
    0646-747 PIN, CAM ARM
    PIN, CAM ARM
  • 5
    1602-692 O-RING
    O-RING
  • 6
    0746-703 ARM, CAM (INC. 7)
    ARM, CAM (INC. 7)
  • 6
    0746-672 ARM, CAM (INC. 7/0, 3, 000 FT ALT.)
    ARM, CAM (INC. 7/0, 3, 000 FT ALT.)
  • 6
    0746-671 ARM, CAM (INC. 7/3, 6, 000 FT ALT.)
    ARM, CAM (INC. 7/3, 6, 000 FT ALT.)
  • 6
    0746-670 ARM, CAM (INC. 7) (OVER 9, 000 FT ALT.)
    ARM, CAM (INC. 7) (OVER 9, 000 FT ALT.)
  • 7
    1623-183 SCREW, SET
    SCREW, SET
  • 8
    8048-366 NUT, LOCK
    NUT, LOCK
  • 9
    0646-377 SPACER
    SPACER
  • 10
    0746-115 SPIDER ASSY.
    SPIDER ASSY.
  • 11
    0646-379 SPRING, DRIVE CLUTCH (TITANIUM) YELLOW/WHT
    SPRING, DRIVE CLUTCH (TITANIUM) YELLOW/WHT
  • 12
    0646-140 NUT, JAM-SPIDER
    NUT, JAM-SPIDER
  • 13
    0746-113 COVER
    COVER
  • 14
    8051-212 WASHER, LOCK, SPRING
    WASHER, LOCK, SPRING
  • 15
    1623-442 SCREW, MACHINE (1/4-20X2.50 GD 8)
    SCREW, MACHINE (1/4-20X2.50 GD 8)
