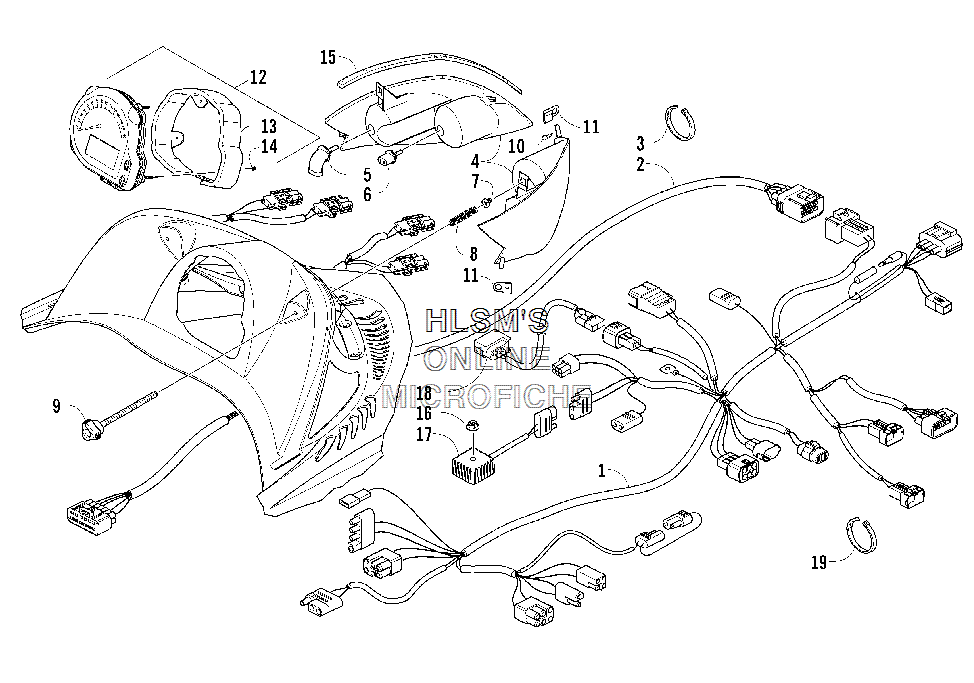

HEADLIGHT- INSTRUMENTS- AND WIRING ASSEMBLIES для Arctic Cat M7 EFI 153'' CT (BLACK) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    1686-281 HARNESS, MAIN
    HARNESS, MAIN
  • 2
    1686-253 HARNESS, HOOD
    HARNESS, HOOD
  • 3
    0123-788 CABLE TIE, 8 IN.
    CABLE TIE, 8 IN.
  • 4
    0609-694 LENS/REFLECTOR, HEADLIGHT (RIGHT) (INC. 5, 6)
    LENS/REFLECTOR, HEADLIGHT (RIGHT) (INC. 5, 6)
  • 4
    0609-695 LENS/REFLECTOR, HEADLIGHT (LEFT) (INC. 5, 6)
    LENS/REFLECTOR, HEADLIGHT (LEFT) (INC. 5, 6)
  • 5
    0609-251 BULB, (GE 894) HEADLIGHT-HIGH B
    BULB, (GE 894) HEADLIGHT-HIGH B
  • 6
    0609-693 BULB, HEADLIGHT-(2.93A)-STRAIGHT
    BULB, HEADLIGHT-(2.93A)-STRAIGHT
  • 7
    1623-025 INSERT
    INSERT
  • 8
    0623-360 SPRING, ADJUSTER
    SPRING, ADJUSTER
  • 9
    1623-024 SCREW, ADJUSTER
    SCREW, ADJUSTER
  • 10
    1623-137 CLIP, HAIRPIN
    CLIP, HAIRPIN
  • 11
    1623-272 CLIP (RIGHT)
    CLIP (RIGHT)
  • 11
    1623-273 CLIP (LEFT)
    CLIP (LEFT)
  • 12
    0620-292 TACHOMETER/SPEEDOMETER (INC. 13, 14)
    TACHOMETER/SPEEDOMETER (INC. 13, 14)
  • 13
    0620-281 BRACKET, RETAINING
    BRACKET, RETAINING
  • 14
    0620-280 NUT W/WASHER
    NUT W/WASHER
  • 15
    0617-501 FOAM, HOOD/HEADLIGHT
    FOAM, HOOD/HEADLIGHT
  • 16
    8047-366 NUT, LOCK
    NUT, LOCK
  • 17
    0630-182 REGULATOR, VOLTAGE
    REGULATOR, VOLTAGE
  • 18
    1686-003 HARNESS, EXTENSION, TAILLIGHT
    HARNESS, EXTENSION, TAILLIGHT
  • 19
    0123-811 CABLE TIE, 4 IN.
    CABLE TIE, 4 IN.
