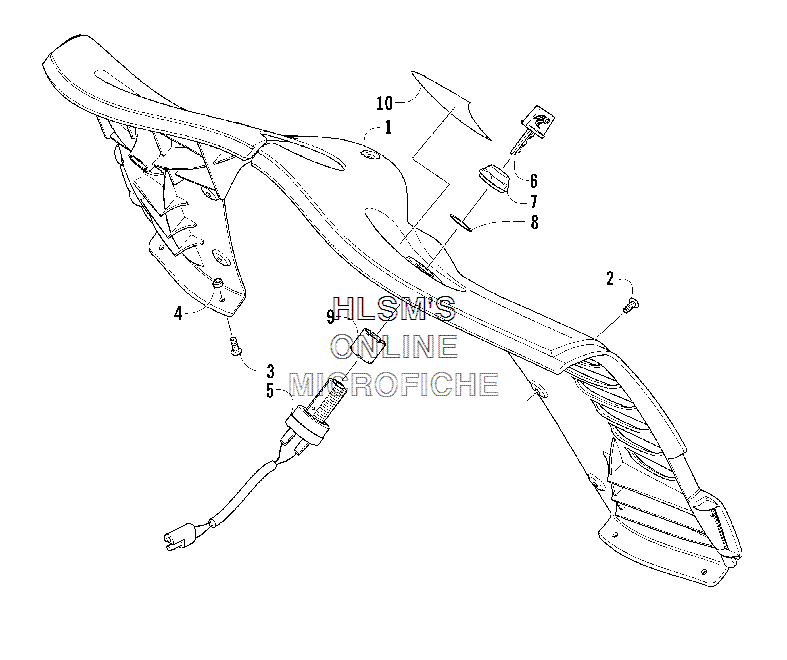

CONSOLE AND SWITCH ASSY. для Arctic Cat M7 EFI 153'' CT (BLACK) - 2006 года выпуска
-
№АртикулНазвание
-
13606-442 CONSOLECONSOLE
-
28017-425 SCREW, MACH-TXSTRH 10-24 X 3/8SCREW, MACH-TXSTRH 10-24 X 3/8
-
38017-397 SCREW, MACH-TXSTRH 10-24X.5 GR2SCREW, MACH-TXSTRH 10-24X.5 GR2
-
48041-246 NUT, LOCKNUT, LOCK
-
50609-728 SWITCH, IGNITION (INC. 6)SWITCH, IGNITION (INC. 6)
-
70609-113 NUT, RETAININGNUT, RETAINING
-
80123-899 WASHER, IGNITION SWITCHWASHER, IGNITION SWITCH
-
90609-450 SPACER, IGNITION SWITCHSPACER, IGNITION SWITCH
-
106611-581 DECAL, CONSOLEDECAL, CONSOLE
