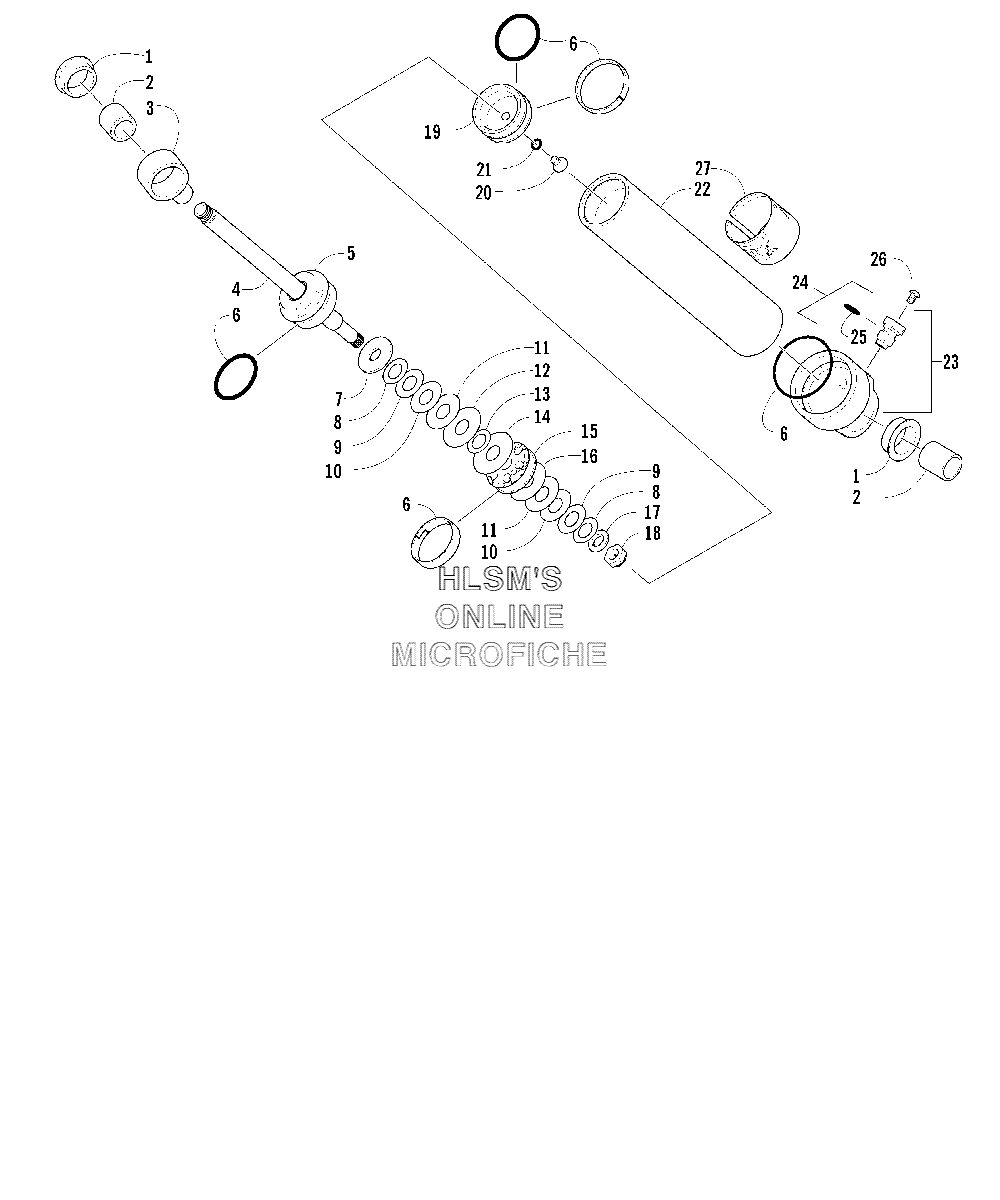

REAR SUSPENSION REAR ARM SHOCK ABSORBER для Arctic Cat M6 EFI 153'' (GREEN) CT - 2006 года выпуска`
-
№АртикулНазвание
-
11604-222 BUSHING, SHOCKBUSHING, SHOCK
-
22604-223 SLEEVE, EYELETSLEEVE, EYELET
-
30604-893 EYELET, SHOCKEYELET, SHOCK
-
42604-863 ROD, SHOCKROD, SHOCK
-
52604-413 BEARING, ASSYBEARING, ASSY
-
62604-815 SEAL/REBUILD KITSEAL/REBUILD KIT
-
70603-540 WASHER, TOP OUTWASHER, TOP OUT
-
80603-335 VALVE, 0.800 X 0.010 IN.VALVE, 0.800 X 0.010 IN.
-
90603-338 VALVE, 0.900 X 0.010 IN.VALVE, 0.900 X 0.010 IN.
-
100603-341 VALVE, 1.000 X 0.010 IN.VALVE, 1.000 X 0.010 IN.
-
110603-344 VALVE, 1.100 X 0.010 IN.VALVE, 1.100 X 0.010 IN.
-
120603-347 VALVE, 1.250 X 0.010 IN.VALVE, 1.250 X 0.010 IN.
-
130603-332 VALVE, 0.700 X 0.010 IN.VALVE, 0.700 X 0.010 IN.
-
140603-350 VALVE, 1.300 X 0.010 IN.VALVE, 1.300 X 0.010 IN.
-
151604-437 PISTON, 0.039 IN., ORIFICEPISTON, 0.039 IN., ORIFICE
-
160603-883 VALVE, 1.250 X 0.012 IN.VALVE, 1.250 X 0.012 IN.
-
170603-389 WASHER, BACKUPWASHER, BACKUP
-
180603-301 NUT, LOCKNUT, LOCK
-
192604-816 PISTON, FLOATING, ASSYPISTON, FLOATING, ASSY
-
201604-316 SCREW, RELIEF (INC. 21)SCREW, RELIEF (INC. 21)
-
211604-425 O-RINGO-RING
-
222604-864 BODY, SHOCKBODY, SHOCK
-
232604-817 END CAP, SHOCK (INC. 24, 25)END CAP, SHOCK (INC. 24, 25)
-
240703-341 VALVE, PRESSURE (INC. 25)VALVE, PRESSURE (INC. 25)
-
251604-318 O-RINGO-RING
-
260624-097 SCREW, VALVESCREW, VALVE
-
272604-897 DECAL, SHOCKDECAL, SHOCK
-
02639-149 OIL, GAS SHOCK, 6 QT CASEOIL, GAS SHOCK, 6 QT CASE
-
01704-468 COMPLETE SHOCK ABSORBERCOMPLETE SHOCK ABSORBER
