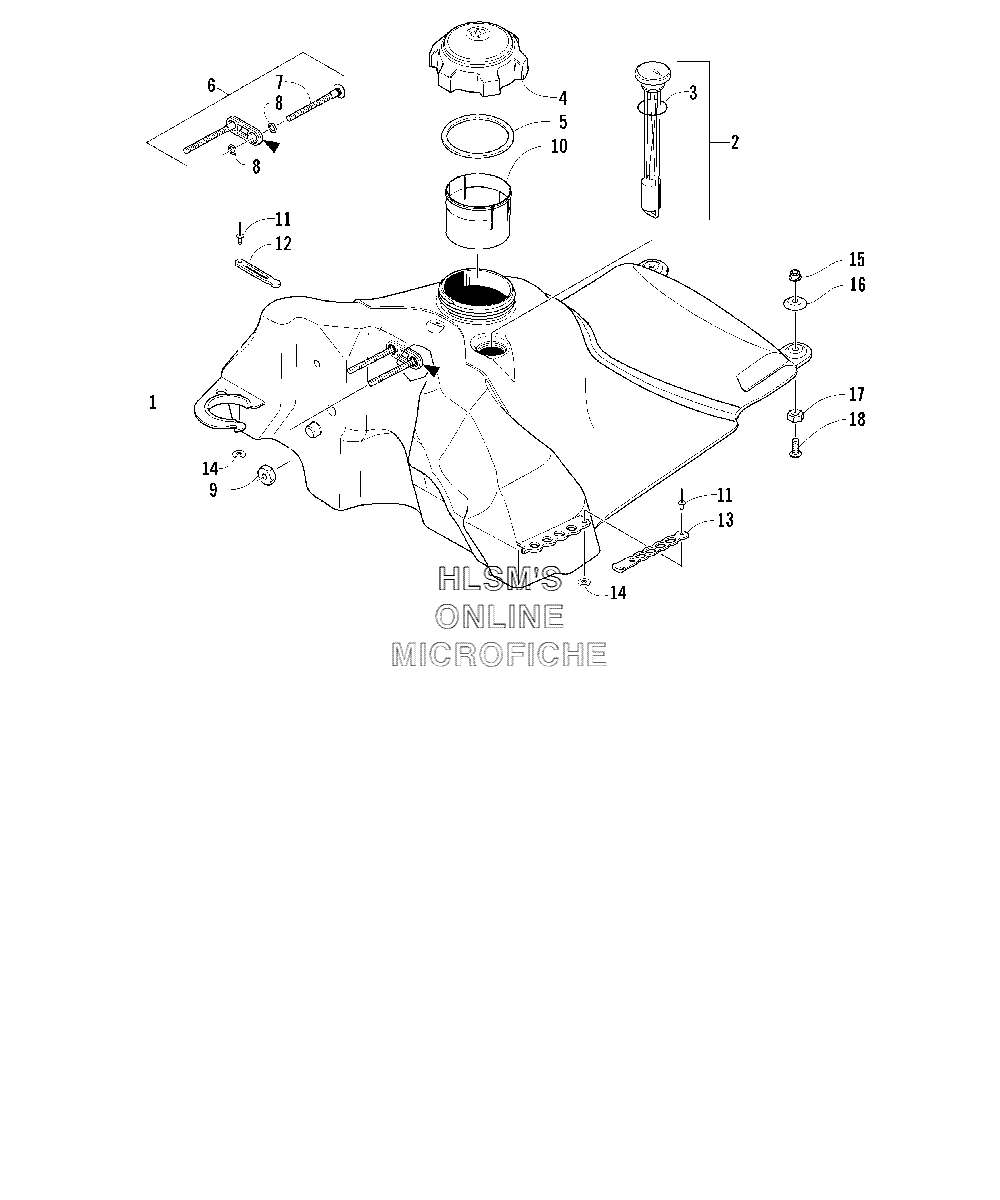

GAS TANK ASSEMBLY для Arctic Cat M6 EFI 153'' (GREEN) CT - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    0770-732 TANK, GAS (INC. 2, 14)
    TANK, GAS (INC. 2, 14)
  • 2
    1670-725 GAUGE, GAS W/SEAL (INC. 3)
    GAUGE, GAS W/SEAL (INC. 3)
  • 3
    1670-743 SEAL, GAS GAUGE
    SEAL, GAS GAUGE
  • 4
    1670-447 CAP, GAS TANK (INC. 5)
    CAP, GAS TANK (INC. 5)
  • 5
    1670-511 SEAL, GAS TANK CAP
    SEAL, GAS TANK CAP
  • 6
    1705-116 PLATE, MOUNTING, STEERING POST (INC. 7 AND TWO NO. 8)
    PLATE, MOUNTING, STEERING POST (INC. 7 AND TWO NO. 8)
  • 7
    1623-447 BOLT, CARRIAGE
    BOLT, CARRIAGE
  • 8
    1623-448 O-RING
    O-RING
  • 9
    1623-483 NUT
    NUT
  • 10
    1670-801 EXTENSION, NECK, GAS TANK
    EXTENSION, NECK, GAS TANK
  • 11
    8061-630 RIVET
    RIVET
  • 12
    3606-173 STRAP, HOLD, DOWN, COOLANT TANK
    STRAP, HOLD, DOWN, COOLANT TANK
  • 13
    4606-160 STRAP, HOLD, DOWN, SPARK PLUG
    STRAP, HOLD, DOWN, SPARK PLUG
  • 14
    8050-157 WASHER
    WASHER
  • 15
    8047-366 NUT, LOCK
    NUT, LOCK
  • 16
    0123-765 WASHER, CUP
    WASHER, CUP
  • 17
    1623-077 NUT
    NUT
  • 18
    8017-582 SCREW, MACHINE
    SCREW, MACHINE
