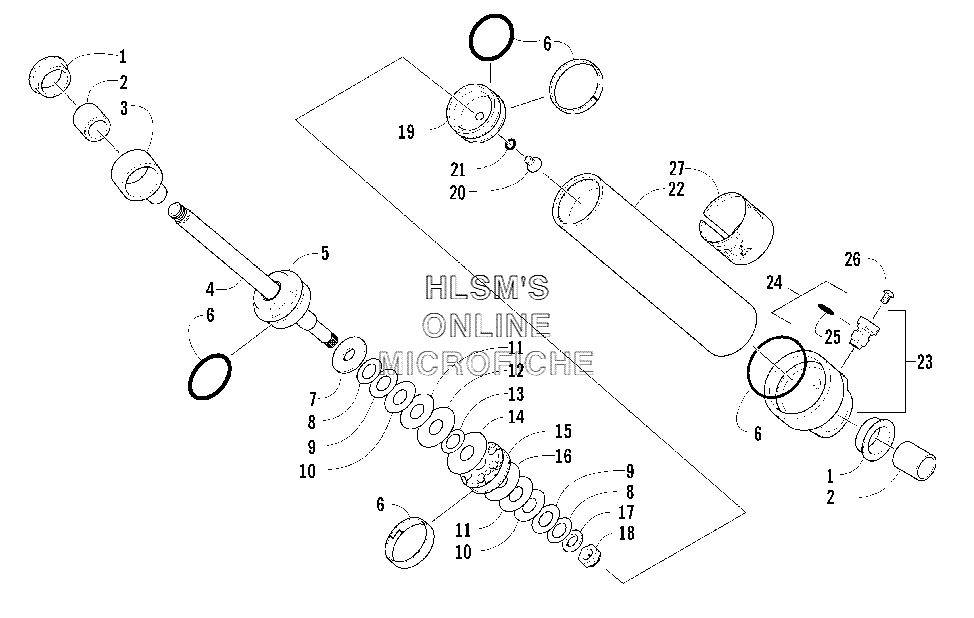

REAR SUSPENSION REAR ARM SHOCK ABSORBER для Arctic Cat M6 EFI 153'' (BLACK) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    1604-222 BUSHING, SHOCK
    BUSHING, SHOCK
  • 2
    2604-223 SLEEVE, EYELET
    SLEEVE, EYELET
  • 3
    0604-893 EYELET, SHOCK
    EYELET, SHOCK
  • 4
    2604-863 ROD, SHOCK
    ROD, SHOCK
  • 5
    2604-413 BEARING, ASSY
    BEARING, ASSY
  • 6
    2604-815 SEAL/REBUILD KIT
    SEAL/REBUILD KIT
  • 7
    0603-540 WASHER, TOP OUT
    WASHER, TOP OUT
  • 8
    0603-335 VALVE, 0.800 X 0.010 IN.
    VALVE, 0.800 X 0.010 IN.
  • 9
    0603-338 VALVE, 0.900 X 0.010 IN.
    VALVE, 0.900 X 0.010 IN.
  • 10
    0603-341 VALVE, 1.000 X 0.010 IN.
    VALVE, 1.000 X 0.010 IN.
  • 11
    0603-344 VALVE, 1.100 X 0.010 IN.
    VALVE, 1.100 X 0.010 IN.
  • 12
    0603-347 VALVE, 1.250 X 0.010 IN.
    VALVE, 1.250 X 0.010 IN.
  • 13
    0603-332 VALVE, 0.700 X 0.010 IN.
    VALVE, 0.700 X 0.010 IN.
  • 14
    0603-350 VALVE, 1.300 X 0.010 IN.
    VALVE, 1.300 X 0.010 IN.
  • 15
    1604-437 PISTON, 0.039 IN., ORIFICE
    PISTON, 0.039 IN., ORIFICE
  • 16
    0603-883 VALVE, 1.250 X 0.012 IN.
    VALVE, 1.250 X 0.012 IN.
  • 17
    0603-389 WASHER, BACKUP
    WASHER, BACKUP
  • 18
    0603-301 NUT, LOCK
    NUT, LOCK
  • 19
    2604-816 PISTON, FLOATING, ASSY
    PISTON, FLOATING, ASSY
  • 20
    1604-316 SCREW, RELIEF (INC. 21)
    SCREW, RELIEF (INC. 21)
  • 21
    1604-425 O-RING
    O-RING
  • 22
    2604-864 BODY, SHOCK
    BODY, SHOCK
  • 23
    2604-817 END CAP, SHOCK (INC. 24, 25)
    END CAP, SHOCK (INC. 24, 25)
  • 24
    0703-341 VALVE, PRESSURE (INC. 25)
    VALVE, PRESSURE (INC. 25)
  • 25
    1604-318 O-RING
    O-RING
  • 26
    0624-097 SCREW, VALVE
    SCREW, VALVE
  • 27
    2604-897 DECAL, SHOCK
    DECAL, SHOCK
  • 0
    2639-149 OIL, GAS SHOCK, 6 QT CASE
    OIL, GAS SHOCK, 6 QT CASE
  • 0
    1704-468 COMPLETE SHOCK ABSORBER
    COMPLETE SHOCK ABSORBER
