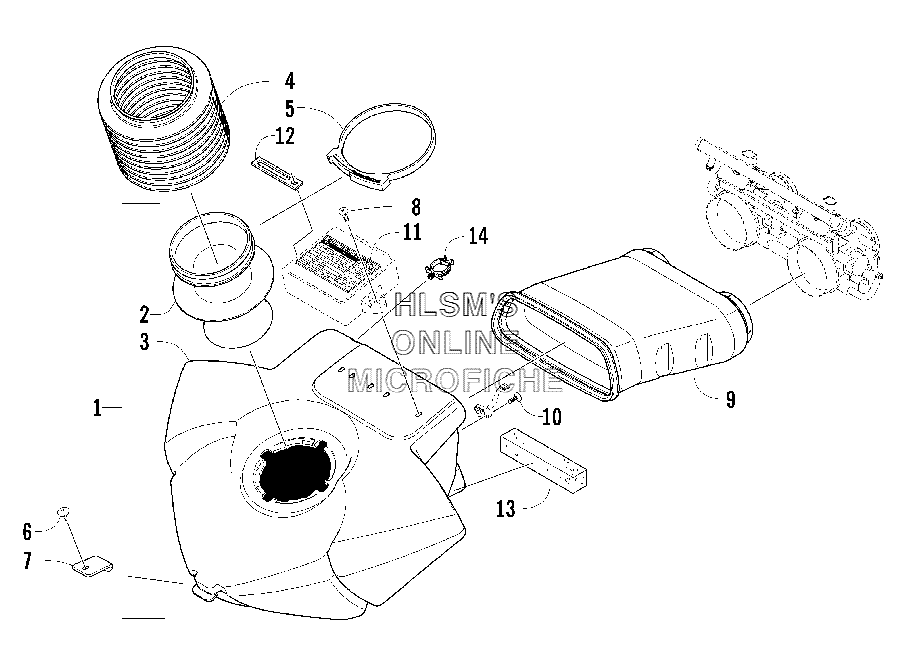

AIR SILENCER ASSEMBLY для Arctic Cat M6 EFI 153'' (BLACK) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    0770-719 SILENCER, AIR, ASSY (INC. 2, 3)
    SILENCER, AIR, ASSY (INC. 2, 3)
  • 2
    1670-473 INTAKE, AIR
    INTAKE, AIR
  • 3
    1670-754 SILENCER, AIR
    SILENCER, AIR
  • 4
    1670-514 CONNECTOR, AIR, INTAKE
    CONNECTOR, AIR, INTAKE
  • 5
    1623-132 CLAMP, AIR, INTAKE CONNECTOR
    CLAMP, AIR, INTAKE CONNECTOR
  • 6
    1623-031 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 7
    3606-146 HOLD, DOWN, AIR SILENCER
    HOLD, DOWN, AIR SILENCER
  • 8
    1623-204 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 9
    1670-613 BOOT, AIR SILENCER
    BOOT, AIR SILENCER
  • 10
    0623-165 CLIP, RETAINING
    CLIP, RETAINING
  • 11
    7611-109 DECAL, ECU
    DECAL, ECU
  • 12
    3002-964 CLAMP, WIRE
    CLAMP, WIRE
  • 13
    0617-485 FOAM, AIR SILENCER
    FOAM, AIR SILENCER
  • 14
    1623-171 CLIP, ROUTING
    CLIP, ROUTING
