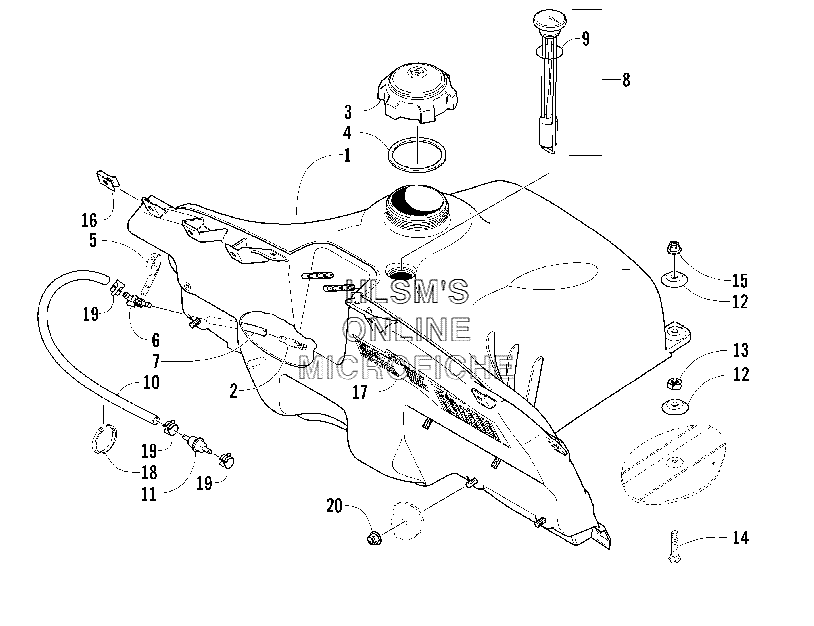

GAS TANK ASSEMBLY для Arctic Cat F7 Firecat (ORANGE) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    0770-625 TANK, GAS (INC. 2, 9)
    TANK, GAS (INC. 2, 9)
  • 2
    0510-358 STRAINER, GAS TANK
    STRAINER, GAS TANK
  • 3
    1670-447 CAP, GAS TANK (INC. 4)
    CAP, GAS TANK (INC. 4)
  • 4
    1670-511 SEAL, GAS TANK CAP
    SEAL, GAS TANK CAP
  • 5
    0670-289 TAPE, TEFLON
    TAPE, TEFLON
  • 6
    1670-321 OUTLET, GAS TANK
    OUTLET, GAS TANK
  • 7
    0610-017 HOSE, GASLINE (100 FT)
    HOSE, GASLINE (100 FT)
  • 7
    0610-008 HOSE, GASLINE (25 FT)
    HOSE, GASLINE (25 FT)
  • 8
    1670-523 GAUGE, GAS W/SEAL (INC. 9)
    GAUGE, GAS W/SEAL (INC. 9)
  • 9
    0470-400 SEAL, GAS GAUGE
    SEAL, GAS GAUGE
  • 10
    0610-692 HOSE, GASLINE (25 FT)
    HOSE, GASLINE (25 FT)
  • 10
    0610-693 HOSE, GASLINE (100 FT)
    HOSE, GASLINE (100 FT)
  • 11
    1670-166 FILTER, LINE FUEL (INNER)
    FILTER, LINE FUEL (INNER)
  • 12
    0123-765 WASHER, CUP
    WASHER, CUP
  • 13
    8041-366 NUT, LOCK
    NUT, LOCK
  • 14
    8011-041 BOLT, CARRIAGE
    BOLT, CARRIAGE
  • 15
    8048-366 NUT, FLANGE
    NUT, FLANGE
  • 16
    0623-427 NUT, SPEED
    NUT, SPEED
  • 17
    7611-169 DECAL, JET CHART
    DECAL, JET CHART
  • 18
    0123-788 CABLE TIE, 7.5 IN.
    CABLE TIE, 7.5 IN.
  • 19
    1623-234 CLAMP, HOSE
    CLAMP, HOSE
  • 20
    8047-366 NUT, FLANGE
    NUT, FLANGE
