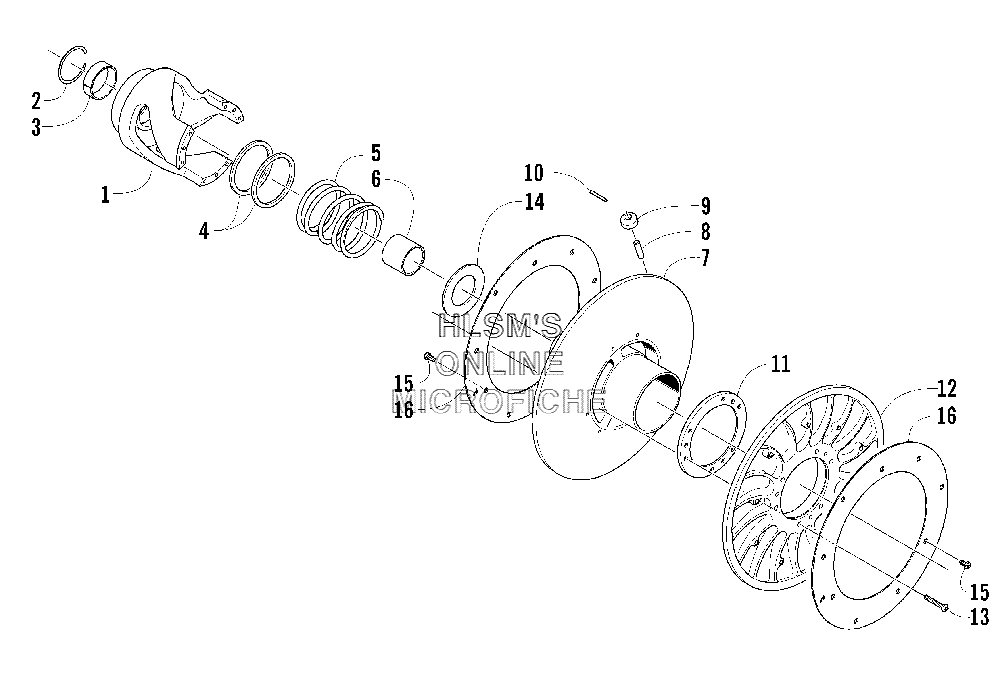

DRIVEN CLUTCH для Arctic Cat F7 Firecat (ORANGE) - 2006 года выпуска`

№

Артикул

Название
-

0726-215 DRIVEN CLUTCH

DRIVEN CLUTCH

94 010 ₽
1

0748-636 BRACKET, TORQUE 44°/40° (INC. 2, 3)

BRACKET, TORQUE 44°/40° (INC. 2, 3)

28 490 ₽
1

0748-622 BRACKET, TORQUE 36° (INC. 2, 3) (OVER 9, 000 FT ALT.)

BRACKET, TORQUE 36° (INC. 2, 3) (OVER 9, 000 FT ALT.)

29 950 ₽
2

0648-433 RING, SNAP

RING, SNAP

460 ₽
3

0648-009 BEARING

BEARING

2 910 ₽
4

0648-713 SEAT, SPRING, DRIVEN CLUTCH

SEAT, SPRING, DRIVEN CLUTCH

540 ₽
5

0648-732 SPRING, DRIVEN CLUTCH (GREEN)

SPRING, DRIVEN CLUTCH (GREEN)

18 710 ₽
6

0648-753 SPACER

SPACER

830 ₽
7

0748-613 SHEAVE, STATIONARY (INC. 8, 10)

SHEAVE, STATIONARY (INC. 8, 10)

30 780 ₽
8

0648-097 PIN, CAM ROLLER

PIN, CAM ROLLER

440 ₽
9

0648-139 ROLLER, CAM

ROLLER, CAM

1 870 ₽
10

8070-224 PIN, SPRING

PIN, SPRING

60 ₽
11

0648-650 RETAINER, TORQUE BRACKET

RETAINER, TORQUE BRACKET

2 910 ₽
12

0748-617 SHEAVE, MOVABLE

SHEAVE, MOVABLE

27 870 ₽
13

1623-517 SCREW, MACHINE

SCREW, MACHINE

150 ₽
14

0648-437 SEAT, SPRING

SEAT, SPRING

520 ₽
15

0623-914 SCREW, SELF, TAPPING

SCREW, SELF, TAPPING

40 ₽
16

0648-728 COVER, SHEAVE

COVER, SHEAVE

3 950 ₽
