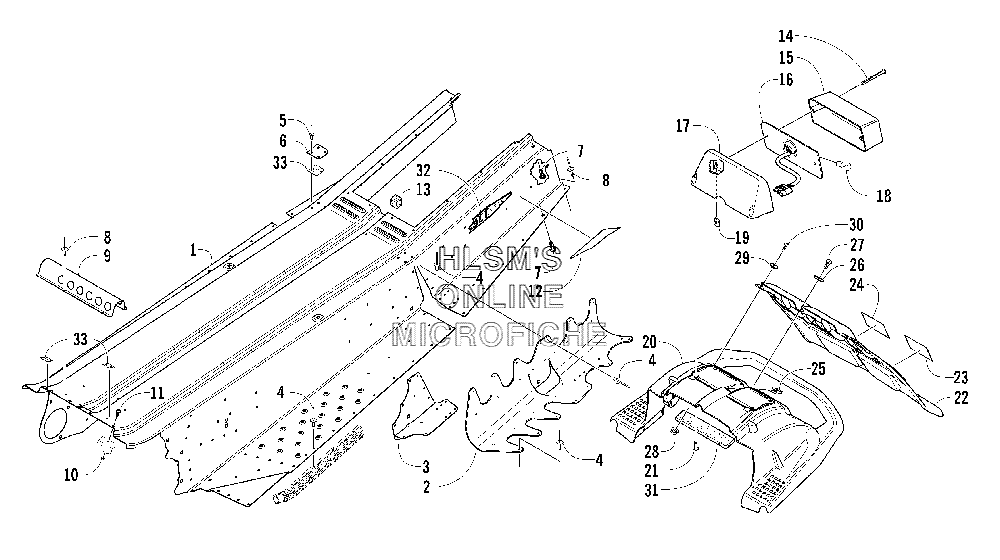

TUNNEL- REAR BUMPER- AND TAILLIGHT ASSEMBLY для Arctic Cat F7 Firecat (GREEN) - 2006 года выпуска`
-
№АртикулНазвание
-
-1707-085 COMPLETE CHASSIS ASSYCOMPLETE CHASSIS ASSY
-
11718-777 TUNNEL ASSY (INC. 2, 6)TUNNEL ASSY (INC. 2, 6)
-
23606-780 BRACKET, SUSPENSION MOUNTING (RIGHT/REAR)BRACKET, SUSPENSION MOUNTING (RIGHT/REAR)
-
23606-781 BRACKET, SUSPENSION MOUNTING (LEFT/REAR)BRACKET, SUSPENSION MOUNTING (LEFT/REAR)
-
32706-234 PLATE, BACKING (RIGHT)PLATE, BACKING (RIGHT)
-
32706-235 PLATE, BACKING (LEFT)PLATE, BACKING (LEFT)
-
40623-072 RIVETRIVET
-
40123-418 RIVETRIVET
-
40623-806 RIVETRIVET
-
48060-486 RIVETRIVET
-
58060-686 RIVETRIVET
-
63606-818 BRACKET, SUPPORTBRACKET, SUPPORT
-
71623-022 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
88060-484 RIVETRIVET
-
92606-938 PROTECTOR, WIRING HARNESSPROTECTOR, WIRING HARNESS
-
108040-246 NUT, LOCKNUT, LOCK
-
118017-399 SCREW, MACHINESCREW, MACHINE
-
126611-688 DECAL, REFLECTOR (FRONT/RIGHT)DECAL, REFLECTOR (FRONT/RIGHT)
-
126611-689 DECAL, REFLECTOR (FRONT/LEFT)DECAL, REFLECTOR (FRONT/LEFT)
-
130617-455 FOAM, HEAT EXCHANGER (REAR)FOAM, HEAT EXCHANGER (REAR)
-
140623-204 SCREW, MACHINESCREW, MACHINE
-
150609-229 LENS, TAILLIGHTLENS, TAILLIGHT
-
160609-230 TAILLIGHT W/SOCKET ASSYTAILLIGHT W/SOCKET ASSY
-
170609-624 HOUSING, TAILLIGHTHOUSING, TAILLIGHT
-
180109-460 BULB, TAILLIGHTBULB, TAILLIGHT
-
191623-023 NUT, SPEEDNUT, SPEED
-
203606-292 BUMPER (REAR0BUMPER (REAR0
-
211623-109 SCREW, PLASTITESCREW, PLASTITE
-
224606-027 SNOWFLAP W/DECALS (INC. 23, 24)SNOWFLAP W/DECALS (INC. 23, 24)
-
235611-853 DECAL, WARNING, TOWING (ENGLISH)DECAL, WARNING, TOWING (ENGLISH)
-
245611-852 DECAL, WARNING, TOWING (FRENCH)DECAL, WARNING, TOWING (FRENCH)
-
250623-363 NUT, SPEEDNUT, SPEED
-
261623-399 WASHER, SNOWFLAPWASHER, SNOWFLAP
-
278017-579 SCREW, MACHINESCREW, MACHINE
-
288048-366 NUT, LOCKNUT, LOCK
-
291623-242 WASHERWASHER
-
308017-581 SCREW, MACHINESCREW, MACHINE
-
310617-456 FOAM, HEAT EXCHANGER (REAR)FOAM, HEAT EXCHANGER (REAR)
-
326611-526 DECAL, TUNNELDECAL, TUNNEL
-
332606-007 FOIL, PROTECTIVEFOIL, PROTECTIVE
