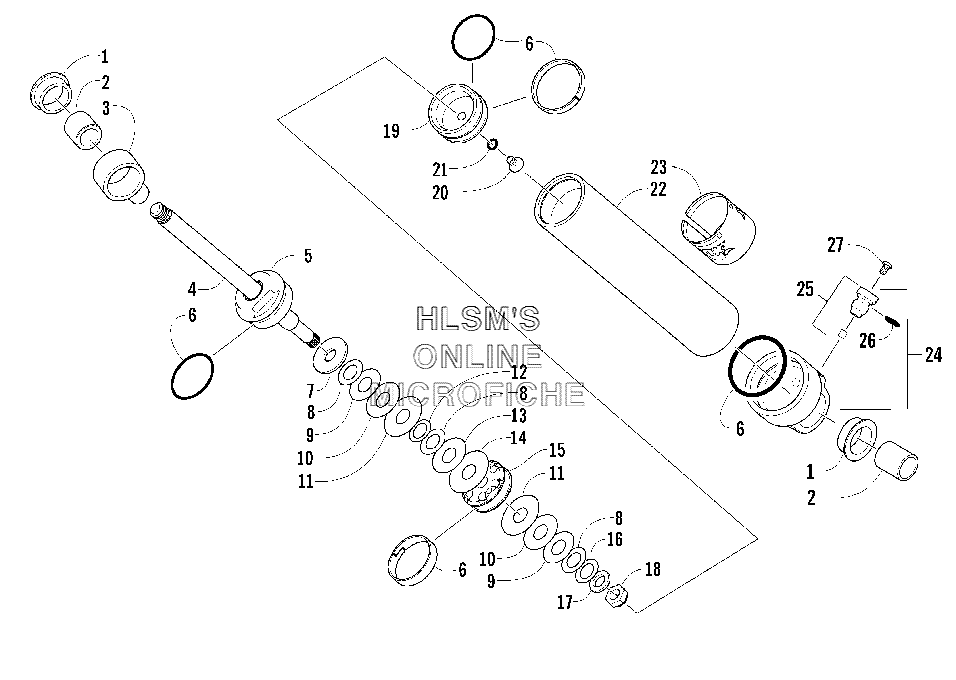

REAR SUSPENSION REAR ARM SHOCK ABSORBER для Arctic Cat F7 Firecat (GREEN) - 2006 года выпуска`

№

Артикул

Название
-

1704-454 COMPLETE SHOCK ABSORBER

COMPLETE SHOCK ABSORBER

68 630 ₽
1

1604-222 BUSHING, SHOCK

BUSHING, SHOCK

2 700 ₽
2

2604-223 SLEEVE, EYELET

SLEEVE, EYELET

4 990 ₽
3

0604-893 EYELET, SHOCK

EYELET, SHOCK

12 470 ₽
4

2604-863 ROD, SHOCK

ROD, SHOCK

25 790 ₽
5

2604-413 BEARING, ASSY

BEARING, ASSY

23 290 ₽
6

2604-815 SEAL/REBUILD KIT

SEAL/REBUILD KIT

13 720 ₽
7

0603-540 WASHER, TOP OUT

WASHER, TOP OUT

2 490 ₽
8

0603-338 VALVE, 0.900 X 0.010 IN.

VALVE, 0.900 X 0.010 IN.

2 280 ₽
9

0603-341 VALVE, 1.000 X 0.010 IN.

VALVE, 1.000 X 0.010 IN.

980 ₽
10

0603-344 VALVE, 1.100 X 0.010 IN.

VALVE, 1.100 X 0.010 IN.

1 870 ₽
11

0603-347 VALVE, 1.250 X 0.010 IN.

VALVE, 1.250 X 0.010 IN.

2 070 ₽
12

0603-731 VALVE, 0.700 X 0.004 IN.

VALVE, 0.700 X 0.004 IN.

2 070 ₽
13

0603-343 VALVE, 1.100 X 0.008 IN.

VALVE, 1.100 X 0.008 IN.

1 040 ₽
14

0603-350 VALVE, 1.300 X 0.010 IN.

VALVE, 1.300 X 0.010 IN.

2 700 ₽
15

2603-482 PISTON, 0.046 IN., ORIFICE

PISTON, 0.046 IN., ORIFICE

7 900 ₽
16

0603-335 VALVE, 0.800 X 0.010 IN.

VALVE, 0.800 X 0.010 IN.

1 870 ₽
17

0603-389 WASHER, BACKUP

WASHER, BACKUP

1 870 ₽
18

0603-301 NUT, LOCK

NUT, LOCK

980 ₽
19

2604-816 PISTON, FLOATING, ASSY

PISTON, FLOATING, ASSY

17 880 ₽
20

1604-316 SCREW, RELIEF (INC. 21)

SCREW, RELIEF (INC. 21)

770 ₽
21

1604-425 O-RING

O-RING

690 ₽
22

2604-864 BODY, SHOCK

BODY, SHOCK

40 350 ₽
23

2604-897 DECAL, SHOCK

DECAL, SHOCK

3 530 ₽
24

2604-817 END CAP, SHOCK (INC. 25, 26)

END CAP, SHOCK (INC. 25, 26)

24 540 ₽
25

0703-341 VALVE, PRESSURE (INC. 26)

VALVE, PRESSURE (INC. 26)

8 310 ₽
26

1604-318 O-RING

O-RING

1 870 ₽
27

0624-097 SCREW, VALVE

SCREW, VALVE

130 ₽
27

2639-149 OIL, GAS SHOCK, 6 QT CASE

OIL, GAS SHOCK, 6 QT CASE

4 160 ₽
