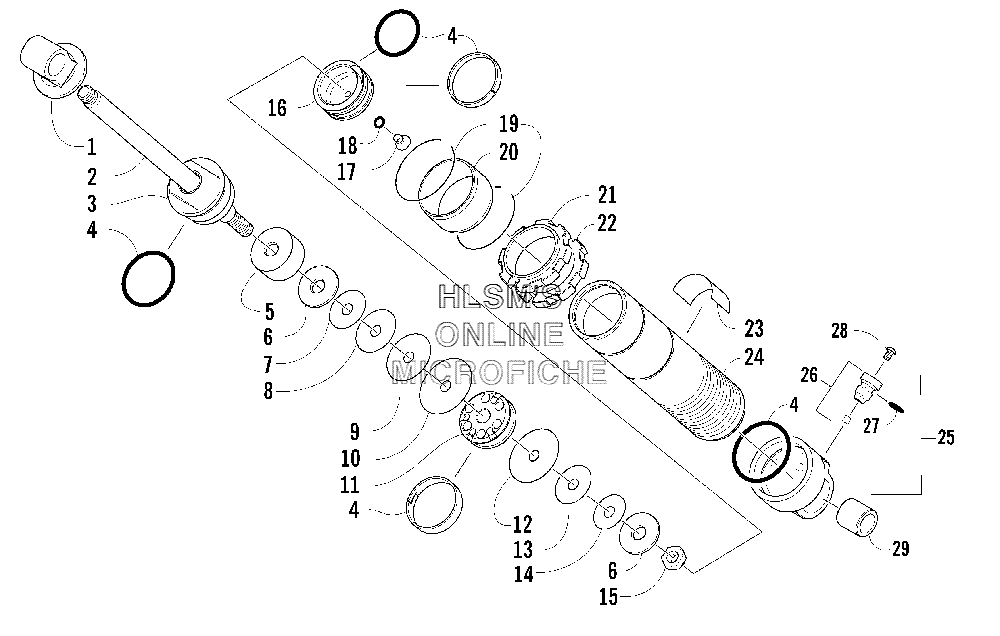

REAR SUSPENSION FRONT ARM SHOCK ABSORBER для Arctic Cat CROSSFIRE 700 EFI SNO PRO (ORANGE) - 2006 года выпуска

  • №
    Артикул
    Название
  • 20
    2639-149 OIL, GAS SHOCK , 6 QT CASE
    OIL, GAS SHOCK , 6 QT CASE
  • 1
    0604-625 EYELET, SHOCK
    EYELET, SHOCK
  • 2
    2604-872 ROD, SHOCK
    ROD, SHOCK
  • 3
    2604-812 BEARING , ASSY
    BEARING , ASSY
  • 4
    2604-815 SEAL/REBUILD KIT
    SEAL/REBUILD KIT
  • 5
    2603-194 SPACER
    SPACER
  • 6
    0603-540 WASHER, TOP OUT
    WASHER, TOP OUT
  • 7
    0603-880 VALVE, 0.900 X 0.012 IN.
    VALVE, 0.900 X 0.012 IN.
  • 8
    0603-881 VALVE, 1.000 X 0.012 IN.
    VALVE, 1.000 X 0.012 IN.
  • 9
    0603-888 VALVE, 1.100 X 0.015 IN.
    VALVE, 1.100 X 0.015 IN.
  • 10
    0603-890 VALVE, 1.300 X 0.015 IN.
    VALVE, 1.300 X 0.015 IN.
  • 11
    2604-412 PISTON, 0.055 IN. , ORIFICE
    PISTON, 0.055 IN. , ORIFICE
  • 12
    0603-347 VALVE, 1.250 X 0.010 IN.
    VALVE, 1.250 X 0.010 IN.
  • 13
    0603-336 VALVE, 0.900 X 0.006 IN.
    VALVE, 0.900 X 0.006 IN.
  • 14
    0603-333 VALVE, 0.800 X 0.006 IN.
    VALVE, 0.800 X 0.006 IN.
  • 15
    0603-301 NUT, LOCK
    NUT, LOCK
  • 16
    2604-816 PISTON, FLOATING
    PISTON, FLOATING
  • 17
    1604-316 SCREW, RELIEF (INC. 18)
    SCREW, RELIEF (INC. 18)
  • 18
    1604-425 O-RING
    O-RING
  • 19
    2603-245 RING, RETAINING
    RING, RETAINING
  • 20
    2603-246 GUIDE, SPRING
    GUIDE, SPRING
  • 21
    2604-840 NUT, SPRING ADJUSTER
    NUT, SPRING ADJUSTER
  • 22
    2604-841 NUT, LOCKING , SPRING ADJUSTER NUT
    NUT, LOCKING , SPRING ADJUSTER NUT
  • 23
    2603-475 DECAL, SHOCK
    DECAL, SHOCK
  • 24
    2604-873 BODY, SHOCK
    BODY, SHOCK
  • 25
    2604-817 END CAP, SHOCK , ASSY (INC. 26, 27)
    END CAP, SHOCK , ASSY (INC. 26, 27)
  • 26
    0703-341 VALVE, PRESSURE (INC. 27)
    VALVE, PRESSURE (INC. 27)
  • 27
    1604-318 O-RING
    O-RING
  • 28
    0624-097 SCREW, VALVE
    SCREW, VALVE
  • 29
    2604-415 SLEEVE, SHOCK EYELET
    SLEEVE, SHOCK EYELET
