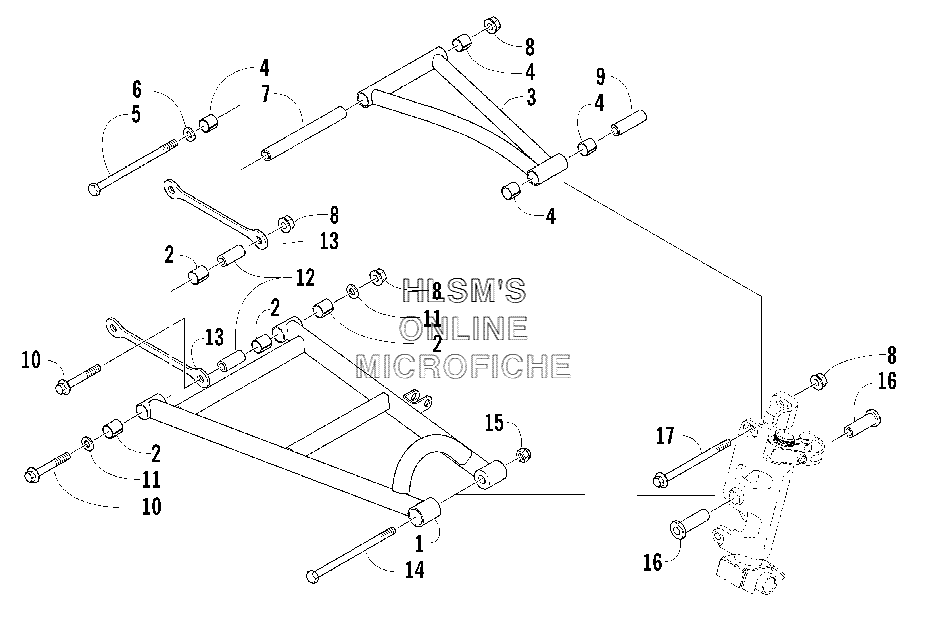

A-ARM ASSEMBLY для Arctic Cat CROSSFIRE 700 EFI SNO PRO (ORANGE) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    1703-668 A, ARM (LOWER) (RIGHT) (INC. 2)
    A, ARM (LOWER) (RIGHT) (INC. 2)
  • 1
    1703-669 A, ARM (LOWER) (LEFT) (INC. 2)
    A, ARM (LOWER) (LEFT) (INC. 2)
  • 2
    1603-895 BEARING
    BEARING
  • 3
    1703-094 A, ARM (UPPER) (INC. 4)
    A, ARM (UPPER) (INC. 4)
  • 4
    0603-083 BEARING
    BEARING
  • 5
    0623-952 SCREW, CAP
    SCREW, CAP
  • 6
    0623-664 WASHER
    WASHER
  • 7
    1603-563 AXLE, ARM (INNER) (UPPER)
    AXLE, ARM (INNER) (UPPER)
  • 8
    8048-486 NUT, LOCK
    NUT, LOCK
  • 9
    0603-864 TUBE, AXLE
    TUBE, AXLE
  • 10
    8020-230 SCREW, CAP
    SCREW, CAP
  • 11
    0623-044 WASHER
    WASHER
  • 12
    2603-305 AXLE, ARM (INNER) (LOWER)
    AXLE, ARM (INNER) (LOWER)
  • 13
    2606-886 BRACE, A, ARM (LOWER)
    BRACE, A, ARM (LOWER)
  • 14
    1623-009 SCREW, CAP
    SCREW, CAP
  • 15
    8040-546 NUT, LOCK
    NUT, LOCK
  • 16
    1603-616 AXLE, POWDER METAL
    AXLE, POWDER METAL
  • 17
    8026-232 SCREW, CAP
    SCREW, CAP
