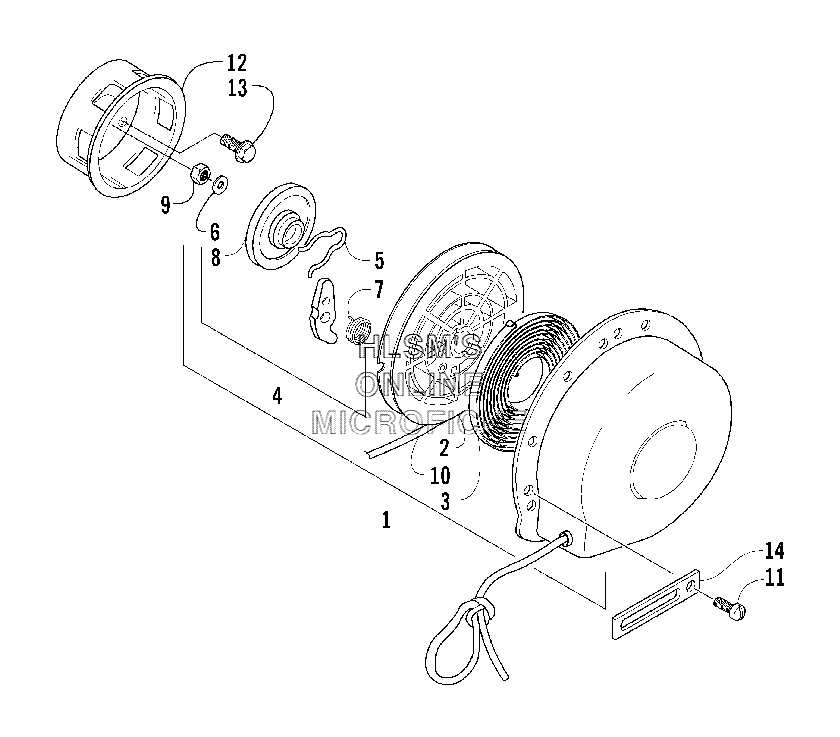

RECOIL STARTER для Arctic Cat ZR 900 SNO PRO (GREEN) - 2005 года выпуска`
![](/wa-data/public/shop/sheme/arctic-cat/snow/d92bc3a9-a3ed-476f-862f-c35399efe144.gif)
-
№АртикулНазвание
-
13006-915 STARTER ASSY. (INC. 2, 10)STARTER ASSY. (INC. 2, 10)
-
23003-179 ROLLER, STARTERROLLER, STARTER
-
33002-921 SPRINGSPRING
-
43006-457 RATCHET SET (INC. 5, 7)RATCHET SET (INC. 5, 7)
-
83006-475 PLATE, FRICTIONPLATE, FRICTION
-
93006-456 NUTNUT
-
103006-889 ROPE, STARTERROPE, STARTER
-
113004-383 SCREW, CAPSCREW, CAP
-
123003-929 PULLEY, STARTERPULLEY, STARTER
-
133004-705 SCREW, CAPSCREW, CAP
-
143002-964 CLAMP, WIRECLAMP, WIRE
