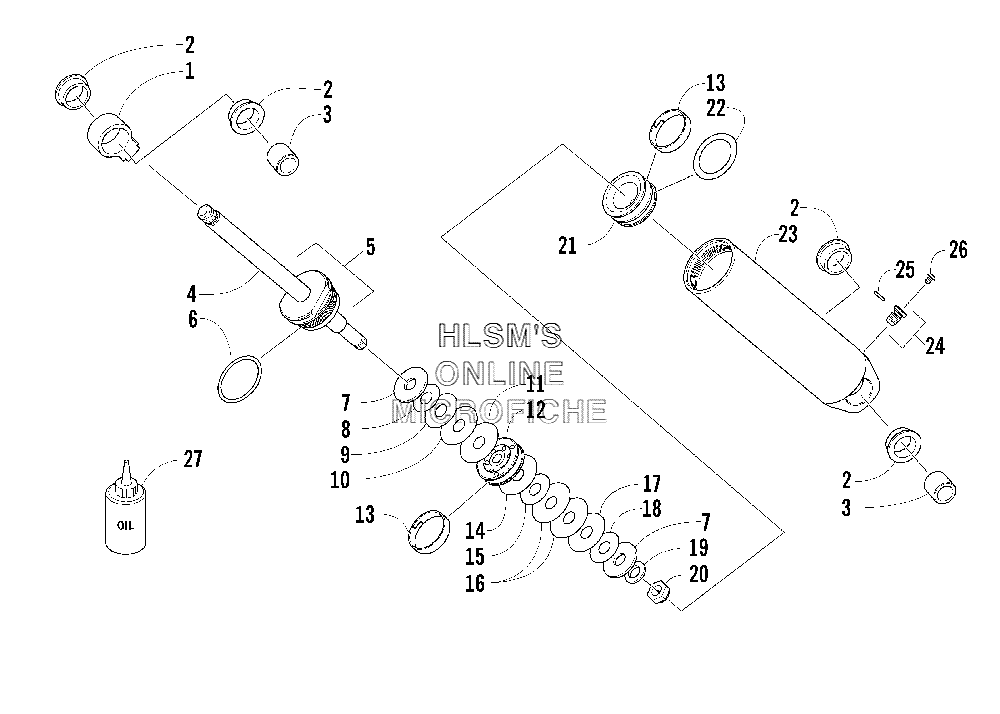

REAR SUSPENSION REAR ARM SHOCK ABSORBER для Arctic Cat ZR 900 SNO PRO (GREEN) - 2005 года выпуска
-
№АртикулНазвание
-
11604-763 EYELET, SHOCKEYELET, SHOCK
-
21604-262 BUSHING, SHOCKBUSHING, SHOCK
-
31604-397 SLEEVE, EYELETSLEEVE, EYELET
-
42604-599 ROD, SHOCKROD, SHOCK
-
51704-284 CAP, SHOCK (INC. 6)CAP, SHOCK (INC. 6)
-
62604-777 O-RINGO-RING
-
71604-272 WASHER, TOP OUTWASHER, TOP OUT
-
82603-044 VALVE, SHOCK 0.700 X 0.008 IN.VALVE, SHOCK 0.700 X 0.008 IN.
-
92603-065 VALVE, SHOCK 0.900 X 0.010 IN.VALVE, SHOCK 0.900 X 0.010 IN.
-
102603-095 VALVE, SHOCK 1.100 X 0.010 IN.VALVE, SHOCK 1.100 X 0.010 IN.
-
112603-125 VALVE, SHOCK 1.250 X 0.010 IN.VALVE, SHOCK 1.250 X 0.010 IN.
-
122604-784 PISTON, 0.055 IN., ORIFICEPISTON, 0.055 IN., ORIFICE
-
132604-780 STRAP, PISTON, TEFLONSTRAP, PISTON, TEFLON
-
142603-126 VALVE, SHOCK 1.250 X 0.012 IN.VALVE, SHOCK 1.250 X 0.012 IN.
-
152603-050 VALVE, SHOCK 0.800 X 0.004 IN.VALVE, SHOCK 0.800 X 0.004 IN.
-
162603-127 VALVE, SHOCK 1.250 X 0.015 IN.VALVE, SHOCK 1.250 X 0.015 IN.
-
172603-097 VALVE, SHOCK 1.100 X 0.015 IN.VALVE, SHOCK 1.100 X 0.015 IN.
-
182603-052 VALVE, SHOCK 0.800 X 0.006 IN.VALVE, SHOCK 0.800 X 0.006 IN.
-
191604-273 WASHER, BACKUPWASHER, BACKUP
-
200623-696 NUTNUT
-
211704-434 PISTON, FLOATING, ASSY. (INC. 22)PISTON, FLOATING, ASSY. (INC. 22)
-
222604-779 O-RINGO-RING
-
232604-775 BODY, SHOCKBODY, SHOCK
-
242604-649 VALVE, PRESSURE, ASSY. (INC. 25)VALVE, PRESSURE, ASSY. (INC. 25)
-
252604-162 O-RINGO-RING
-
260624-433 SCREW, MACHINESCREW, MACHINE
-
271639-245 OIL, GAS SHOCK, 6 QT CASEOIL, GAS SHOCK, 6 QT CASE
-
271704-266 SHOCK ABSORBERSHOCK ABSORBER
