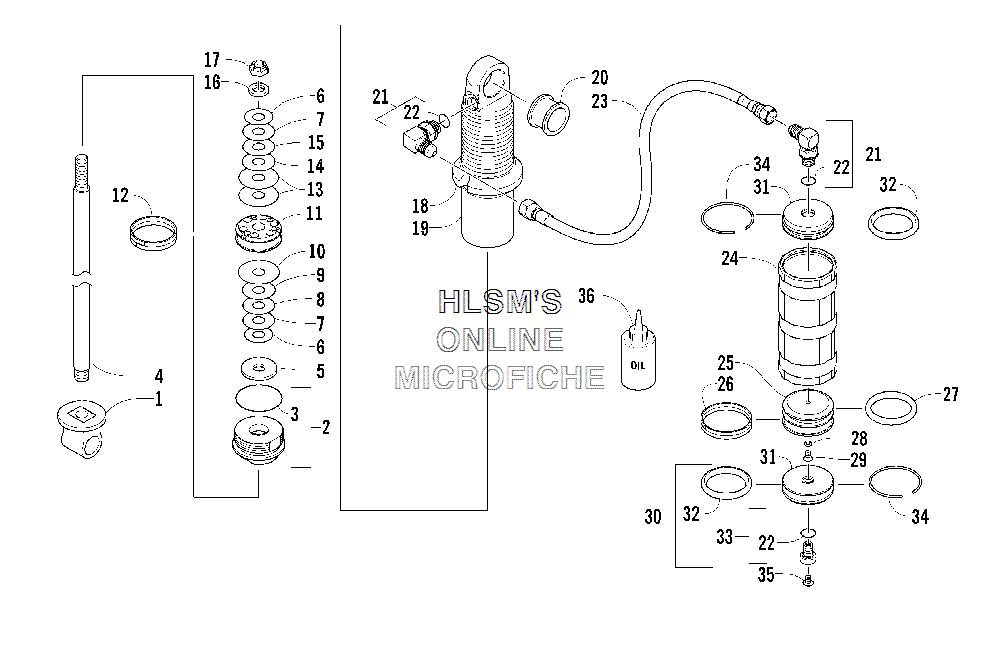

REAR SUSPENSION FRONT ARM SHOCK ABSORBER для Arctic Cat ZR 900 EFI SNO PRO (GREEN) - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    1604-825 EYELET, SHOCK
    EYELET, SHOCK
  • 2
    1703-453 END CAP, SHOCK (INC. 3)
    END CAP, SHOCK (INC. 3)
  • 3
    1604-271 O-RING
    O-RING
  • 4
    2604-795 ROD, SHOCK
    ROD, SHOCK
  • 5
    1604-272 WASHER, TOP OUT
    WASHER, TOP OUT
  • 6
    2603-055 VALVE, 0.800 X 0.010 IN.
    VALVE, 0.800 X 0.010 IN.
  • 7
    2603-065 VALVE, 0.900 X 0.010 IN.
    VALVE, 0.900 X 0.010 IN.
  • 8
    2603-076 VALVE, 1.000 X 0.012 IN.
    VALVE, 1.000 X 0.012 IN.
  • 9
    2603-096 VALVE, 1.100 X 0.012 IN.
    VALVE, 1.100 X 0.012 IN.
  • 10
    2603-136 VALVE, 1.300 X 0.012 IN.
    VALVE, 1.300 X 0.012 IN.
  • 11
    0603-952 PISTON, 0.059 IN., ORIFICE
    PISTON, 0.059 IN., ORIFICE
  • 12
    2604-274 STRAP, PISTON, TEFLON
    STRAP, PISTON, TEFLON
  • 13
    2603-125 VALVE, 1.250 X 0.010 IN.
    VALVE, 1.250 X 0.010 IN.
  • 14
    2603-095 VALVE, 1.100 X 0.010 IN.
    VALVE, 1.100 X 0.010 IN.
  • 15
    2603-075 VALVE, 1.000 X 0.010 IN.
    VALVE, 1.000 X 0.010 IN.
  • 16
    1604-273 WASHER, BACKUP
    WASHER, BACKUP
  • 17
    0623-696 NUT, LOCK
    NUT, LOCK
  • 18
    1603-911 NUT, ADJUSTER, SHOCK
    NUT, ADJUSTER, SHOCK
  • 19
    2604-791 BODY, SHOCK
    BODY, SHOCK
  • 20
    2604-156 BUSHING, SHOCK
    BUSHING, SHOCK
  • 21
    1604-533 FITTING, ELBOW (INC. TWO NO. 22)
    FITTING, ELBOW (INC. TWO NO. 22)
  • 22
    1604-284 O-RING, VALVE
    O-RING, VALVE
  • 23
    2604-793 HOSE, RESERVOIR/SHOCK
    HOSE, RESERVOIR/SHOCK
  • 24
    2604-792 BODY, RESERVOIR
    BODY, RESERVOIR
  • 25
    0603-986 PISTON, RESERVOIR
    PISTON, RESERVOIR
  • 26
    0603-988 STRAP, PISTON, TEFLON
    STRAP, PISTON, TEFLON
  • 27
    0603-987 O-RING
    O-RING
  • 28
    0423-182 O-RING
    O-RING
  • 29
    0623-697 SCREW, PISTON
    SCREW, PISTON
  • 30
    0703-540 END CAP, RESERVOIR, ASSEMBLY (INC. ONE NO. 22, ONE NO. 31, 32, AND 33)
    END CAP, RESERVOIR, ASSEMBLY (INC. ONE NO. 22, ONE NO. 31, 32, AND 33)
  • 31
    0603-989 END CAP, RESERVOIR BODY
    END CAP, RESERVOIR BODY
  • 32
    0603-968 O-RING
    O-RING
  • 33
    0704-383 VALVE, PRESSURE, ASSEMBLY (INC. ONE NO. 22)
    VALVE, PRESSURE, ASSEMBLY (INC. ONE NO. 22)
  • 34
    0603-985 RETAINER, END CAP
    RETAINER, END CAP
  • 35
    0624-433 SCREW, MACHINE
    SCREW, MACHINE
  • 36
    1639-245 OIL, GAS SHOCK, 6 QT CASE
    OIL, GAS SHOCK, 6 QT CASE
  • -
    1704-265 SHOCK ABSORBER
    SHOCK ABSORBER
