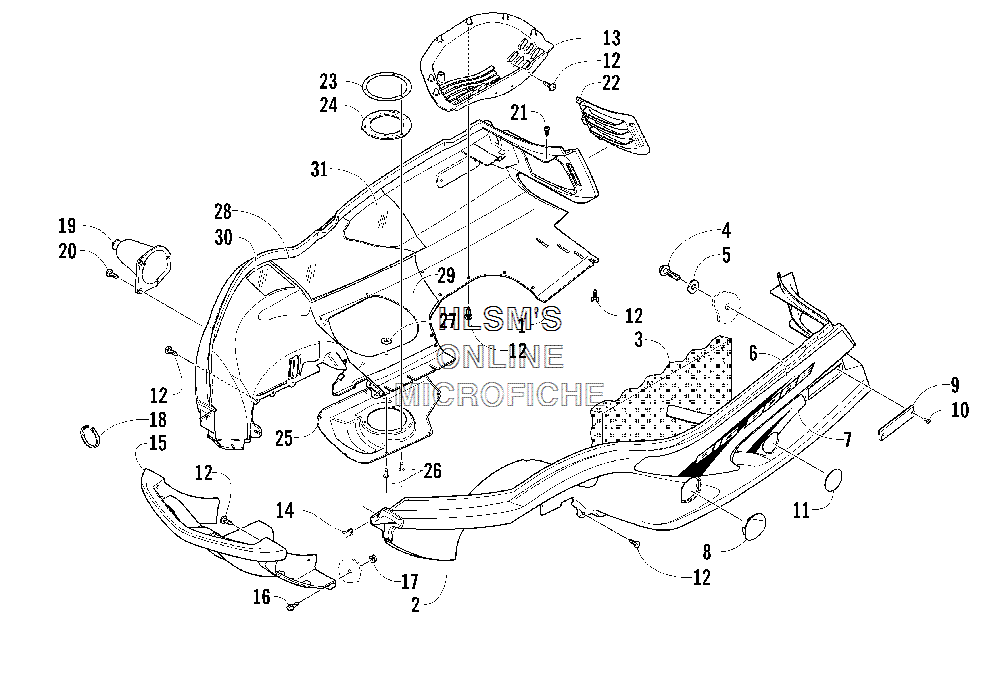

BELLY PAN AND FRONT BUMPER ASSEMBLY для Arctic Cat ZR 900 EFI SNO PRO (GREEN) - 2005 года выпуска`
-
№АртикулНазвание
-
12706-746 BELLY PAN (RIGHT)BELLY PAN (RIGHT)
-
22706-747 BELLY PAN (LEFT)BELLY PAN (LEFT)
-
30617-449 FOAM, BELLY PAN (LEFT)FOAM, BELLY PAN (LEFT)
-
40623-647 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
50623-184 WASHERWASHER
-
66611-338 DECAL, BELLY PAN (UPPER/RIGHT)DECAL, BELLY PAN (UPPER/RIGHT)
-
66611-339 DECAL, BELLY PAN (UPPER/LEFT)DECAL, BELLY PAN (UPPER/LEFT)
-
76611-340 DECAL, BELLY PAN (LOWER/RIGHT)DECAL, BELLY PAN (LOWER/RIGHT)
-
76611-341 DECAL, BELLY PAN (LOWER/LEFT)DECAL, BELLY PAN (LOWER/LEFT)
-
83606-611 PANEL, ACCESS, DRIVE CLUTCHPANEL, ACCESS, DRIVE CLUTCH
-
90606-526 REFLECTOR (FRONT/AMBER)REFLECTOR (FRONT/AMBER)
-
100623-269 CLIP, RETAININGCLIP, RETAINING
-
113606-610 PANEL, ACCESS, DRIVEN CLUTCHPANEL, ACCESS, DRIVEN CLUTCH
-
120623-784 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
132706-395 GUARD, BRAKEGUARD, BRAKE
-
140623-427 NUT, UNUT, U
-
151606-949 BUMPER (FRONT)BUMPER (FRONT)
-
168020-040 SCREW, CAPSCREW, CAP
-
178048-366 NUT, LOCKNUT, LOCK
-
180123-788 CABLE TIE, 7.5 IN.CABLE TIE, 7.5 IN.
-
190605-332 BOOT, STEERING (RIGHT)BOOT, STEERING (RIGHT)
-
190605-333 BOOT, STEERING (LEFT)BOOT, STEERING (LEFT)
-
200623-564 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
210623-378 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
223606-606 LOUVER, AIR, INTAKE (RIGHT)LOUVER, AIR, INTAKE (RIGHT)
-
223606-607 LOUVER, AIR, INTAKE (LEFT)LOUVER, AIR, INTAKE (LEFT)
-
230712-917 PLATE, SEAL, EXHAUST OUTLETPLATE, SEAL, EXHAUST OUTLET
-
241612-372 SEAL, EXHAUST, OUTLETSEAL, EXHAUST, OUTLET
-
251612-450 DEFLECTOR, EXHAUSTDEFLECTOR, EXHAUST
-
268060-510 RIVETRIVET
-
270123-149 WASHERWASHER
-
282606-376 FOIL, PROTECTIVE (UPPER/FRONT)FOIL, PROTECTIVE (UPPER/FRONT)
-
292606-374 FOIL, PROTECTIVE (LOWER/REAR)FOIL, PROTECTIVE (LOWER/REAR)
-
302606-387 FOIL, PROTECTIVE (LOWER/FRONT)FOIL, PROTECTIVE (LOWER/FRONT)
-
312606-375 FOIL, PROTECTIVE (UPPER/REAR)FOIL, PROTECTIVE (UPPER/REAR)
