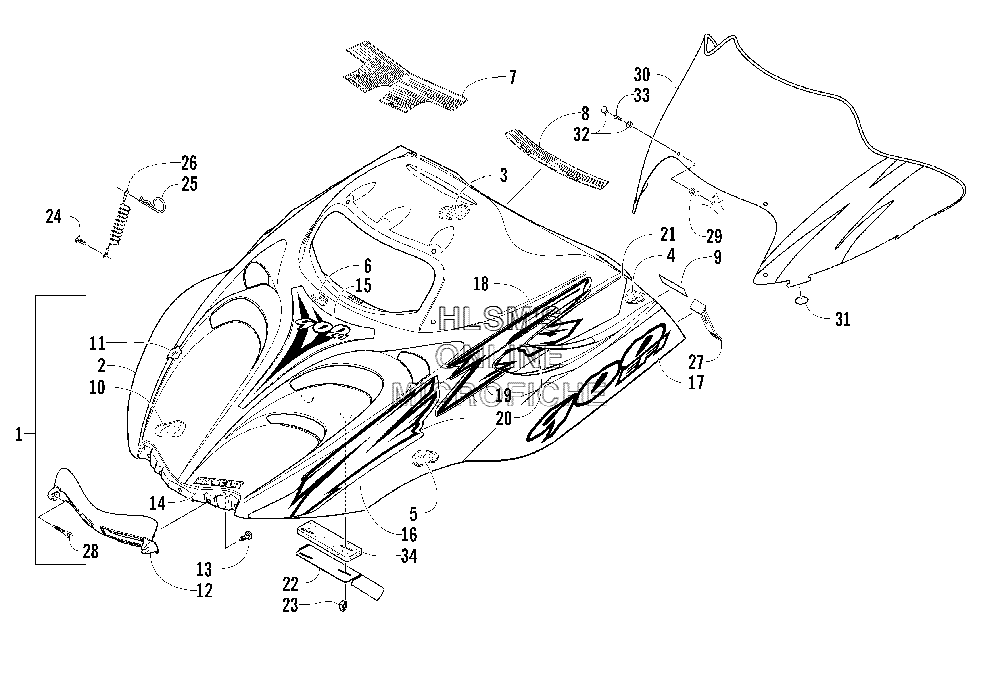

HOOD AND WINDSHIELD ASSEMBLY для Arctic Cat ZR 900 EFI (GREEN) - 2005 года выпуска`
-
№АртикулНазвание
-
11718-681 HOOD W/DECALS (INC. 2, 21)HOOD W/DECALS (INC. 2, 21)
-
21718-684 HOOD W/O DECALS (INC. 3, 13)HOOD W/O DECALS (INC. 3, 13)
-
30617-478 FOAM, HOOD (UPPER/MIDDLE/RIGHT)FOAM, HOOD (UPPER/MIDDLE/RIGHT)
-
30617-479 FOAM, HOOD (UPPER/MIDDLE/LEFT)FOAM, HOOD (UPPER/MIDDLE/LEFT)
-
40617-480 FOAM, HOOD (REAR/RIGHT)FOAM, HOOD (REAR/RIGHT)
-
40617-481 FOAM, HOOD (REAR/LEFT)FOAM, HOOD (REAR/LEFT)
-
50617-476 FOAM, HOOD (FRONT/RIGHT)FOAM, HOOD (FRONT/RIGHT)
-
50617-477 FOAM, HOOD (FRONT/LEFT)FOAM, HOOD (FRONT/LEFT)
-
60617-475 FOAM, HOOD (MIDDLE)FOAM, HOOD (MIDDLE)
-
73611-485 DECAL, WARNING, GENERAL AND BRAKEDECAL, WARNING, GENERAL AND BRAKE
-
83611-970 DECAL, CAUTION, ENGINE/BATTERY/FUELDECAL, CAUTION, ENGINE/BATTERY/FUEL
-
93611-509 DECAL, WARNING, SEATING CAPACITYDECAL, WARNING, SEATING CAPACITY
-
101606-938 FOIL, HOOD (RIGHT)FOIL, HOOD (RIGHT)
-
101606-939 FOIL, HOOD (LEFT)FOIL, HOOD (LEFT)
-
112606-233 FOIL, HOOD (UPPER/RIGHT)FOIL, HOOD (UPPER/RIGHT)
-
121606-720 HINGE, HOODHINGE, HOOD
-
130623-797 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
146611-353 DECAL, "ARCTIC CAT", HOODDECAL, "ARCTIC CAT", HOOD
-
156611-323 DECAL, HOOD, CRESTDECAL, HOOD, CREST
-
166611-332 DECAL, HOOD (FRONT/RIGHT)DECAL, HOOD (FRONT/RIGHT)
-
166611-333 DECAL, HOOD (FRONT/LEFT)DECAL, HOOD (FRONT/LEFT)
-
176611-336 DECAL, HOOD (LOWER/RIGHT)DECAL, HOOD (LOWER/RIGHT)
-
176611-337 DECAL, HOOD (LOWER/LEFT)DECAL, HOOD (LOWER/LEFT)
-
186611-450 DECAL, HOOD (UPPER/RIGHT)DECAL, HOOD (UPPER/RIGHT)
-
186611-451 DECAL, HOOD (UPPER/LEFT)DECAL, HOOD (UPPER/LEFT)
-
196611-330 DECAL, HOOD, VENT (FRONT/RIGHT)DECAL, HOOD, VENT (FRONT/RIGHT)
-
196611-331 DECAL, HOOD, VENT (FRONT/LEFT)DECAL, HOOD, VENT (FRONT/LEFT)
-
206611-328 DECAL, HOOD, VENT, CENTER (RIGHT)DECAL, HOOD, VENT, CENTER (RIGHT)
-
206611-329 DECAL, HOOD, VENT, CENTER (LEFT)DECAL, HOOD, VENT, CENTER (LEFT)
-
216611-326 DECAL, HOOD, VENT (REAR/RIGHT)DECAL, HOOD, VENT (REAR/RIGHT)
-
216611-327 DECAL, HOOD, VENT (REAR/LEFT)DECAL, HOOD, VENT (REAR/LEFT)
-
222606-613 DEFLECTOR, AIRDEFLECTOR, AIR
-
230123-394 CLIPCLIP
-
240623-057 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
250623-805 CLIP, HAIRPINCLIP, HAIRPIN
-
262606-247 CABLE, HOODCABLE, HOOD
-
271606-067 STRAP, HOLD, DOWNSTRAP, HOLD, DOWN
-
281623-016 SCREW, MACHINESCREW, MACHINE
-
290623-845 NUT, EXPANSIONNUT, EXPANSION
-
303606-605 WINDSHIELDWINDSHIELD
-
310616-032 O-RINGO-RING
-
320124-054 SNAP CAP W/WASHERSNAP CAP W/WASHER
-
330623-902 SCREW, MACHINESCREW, MACHINE
-
340617-494 FOAM, AIR DEFLECTORFOAM, AIR DEFLECTOR
