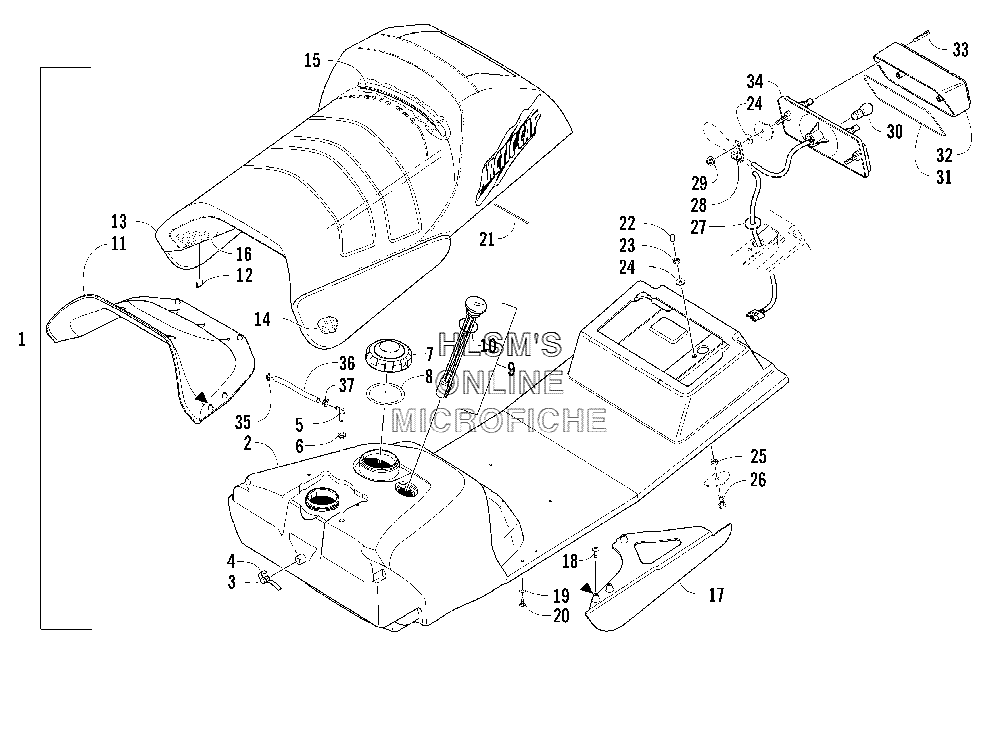

GAS TANK- SEAT- AND TAILLIGHT ASSEMBLY для Arctic Cat ZR 900 EFI (GREEN) - 2005 года выпуска`
-
№АртикулНазвание
-
11718-757 COMPLETE SEAT ASSEMBLY (INC. 2, 21)COMPLETE SEAT ASSEMBLY (INC. 2, 21)
-
20770-558 TANK, GAS/SEAT, BASE (INC. 3, 10)TANK, GAS/SEAT, BASE (INC. 3, 10)
-
30670-243 PLUG, GAS TANKPLUG, GAS TANK
-
40670-289 TAPE, TEFLONTAPE, TEFLON
-
51670-494 VENT, GAS TANKVENT, GAS TANK
-
61670-325 GROMMET, GAS TANKGROMMET, GAS TANK
-
71670-199 CAP, GAS TANK (INC. 8)CAP, GAS TANK (INC. 8)
-
81670-228 SEAL, GAS TANK CAPSEAL, GAS TANK CAP
-
91670-241 GAUGE, GAS W/SEAL (INC. 10)GAUGE, GAS W/SEAL (INC. 10)
-
100470-400 SEAL, GAS GAUGESEAL, GAS GAUGE
-
111606-126 INSERT, SEAT FOAMINSERT, SEAT FOAM
-
120624-528 STAPLE, SEAT COVERSTAPLE, SEAT COVER
-
132706-742 COVER, SEAT (INC. 14, 15)COVER, SEAT (INC. 14, 15)
-
140617-417 FOAM, TUNNEL PADFOAM, TUNNEL PAD
-
153606-363 WIRE, SEATWIRE, SEAT
-
162706-196 FOAM, SEAT CUSHIONFOAM, SEAT CUSHION
-
171606-518 INSERT, SEAT PAD (RIGHT)INSERT, SEAT PAD (RIGHT)
-
171606-519 INSERT, SEAT PAD (LEFT)INSERT, SEAT PAD (LEFT)
-
180623-783 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
198050-217 WASHERWASHER
-
200623-309 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
212606-943 WIRE, SEATWIRE, SEAT
-
220623-404 CAP, PROTECTORCAP, PROTECTOR
-
238040-366 NUT, LOCKNUT, LOCK
-
240623-184 WASHERWASHER
-
258041-366 NUT, LOCKNUT, LOCK
-
268002-042 SCREW, CAPSCREW, CAP
-
270617-136 SEAL, FOAM, SEAT, BASESEAL, FOAM, SEAT, BASE
-
283002-964 CLAMP, WIRECLAMP, WIRE
-
290623-038 NUT, LOCKNUT, LOCK
-
300109-460 BULBBULB
-
310609-092 GASKET, TAILLIGHT LENSGASKET, TAILLIGHT LENS
-
320609-090 LENS, TAILLIGHTLENS, TAILLIGHT
-
330609-093 SCREW, RETAININGSCREW, RETAINING
-
340609-091 TAILLIGHT W/SOCKET ASSEMBLYTAILLIGHT W/SOCKET ASSEMBLY
-
350623-101 CLIP, ROUTING, SNAP, INNERCLIP, ROUTING, SNAP, INNER
-
360610-518 HOSE, VENT (100 FT)HOSE, VENT (100 FT)
-
360610-519 HOSE, VENT (25 FT)HOSE, VENT (25 FT)
-
370623-063 CLAMP, HOSECLAMP, HOSE
