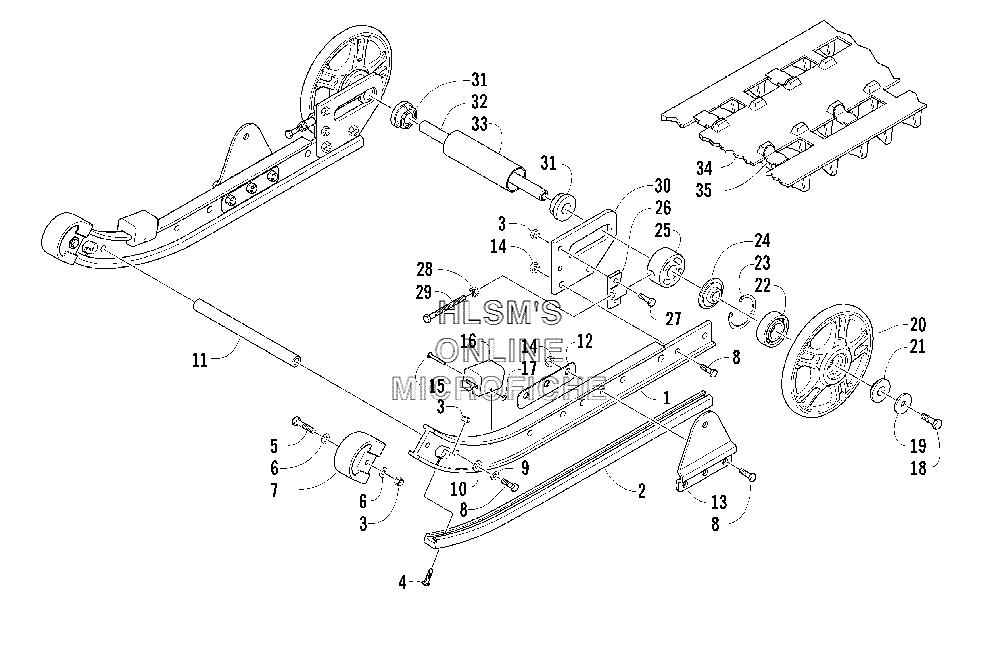

SLIDE RAIL- IDLER WHEELS- AND TRACK ASSEMBLY для Arctic Cat ZR 120 (RED) - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    1604-705 RAIL, FORMED
    RAIL, FORMED
  • 2
    1604-568 WEARSTRIP, SLIDE RAIL
    WEARSTRIP, SLIDE RAIL
  • 3
    8040-366 NUT, LOCK
    NUT, LOCK
  • 4
    0123-869 SCREW, MACHINE
    SCREW, MACHINE
  • 5
    8002-044 SCREW, CAP
    SCREW, CAP
  • 6
    8050-217 WASHER
    WASHER
  • 7
    0604-231 END CAP, SLIDE RAIL
    END CAP, SLIDE RAIL
  • 8
    8002-131 SCREW, CAP
    SCREW, CAP
  • 9
    8051-247 WASHER, LOCK
    WASHER, LOCK
  • 10
    8050-247 WASHER
    WASHER
  • 11
    1604-566 AXLE, CROSS, BRACE
    AXLE, CROSS, BRACE
  • 12
    0704-897 PLATE, BACKING
    PLATE, BACKING
  • 13
    0704-896 BRACKET, SUPPORT, ARM
    BRACKET, SUPPORT, ARM
  • 14
    8040-426 NUT, LOCK
    NUT, LOCK
  • 15
    0123-767 RIVET, SOLID
    RIVET, SOLID
  • 16
    0104-631 PAD, SHOCK
    PAD, SHOCK
  • 17
    0423-090 NUT, PRESS
    NUT, PRESS
  • 18
    8002-222 SCREW, CAP
    SCREW, CAP
  • 19
    0123-570 WASHER
    WASHER
  • 20
    2604-122 WHEEL, IDLER (REAR) (INC. 21, 24)
    WHEEL, IDLER (REAR) (INC. 21, 24)
  • 21
    1604-773 INSERT, IDLER WHEEL (OUTER)
    INSERT, IDLER WHEEL (OUTER)
  • 22
    0107-598 BEARING
    BEARING
  • 23
    0123-798 RING, RETAINING
    RING, RETAINING
  • 24
    1604-772 INSERT, IDLER WHEEL (INNER)
    INSERT, IDLER WHEEL (INNER)
  • 25
    0604-165 BUSHING, IDLER WHEEL, ADJUSTMENT (REAR)
    BUSHING, IDLER WHEEL, ADJUSTMENT (REAR)
  • 26
    0604-206 ADJUSTER, TRACK
    ADJUSTER, TRACK
  • 27
    8002-041 SCREW, CAP
    SCREW, CAP
  • 28
    8042-486 NUT
    NUT
  • 29
    0124-310 SCREW, CAP
    SCREW, CAP
  • 30
    1604-661 HOUSING, AXLE (REAR)
    HOUSING, AXLE (REAR)
  • 31
    0604-968 BUSHING, SPACER, IDLER WHEEL (REAR)
    BUSHING, SPACER, IDLER WHEEL (REAR)
  • 32
    1604-562 AXLE, IDLER WHEEL (REAR)
    AXLE, IDLER WHEEL (REAR)
  • 33
    1604-563 SPACER, IDLER WHEEL (REAR)
    SPACER, IDLER WHEEL (REAR)
  • 34
    1602-015 TRACK ASSY (INC. 35)
    TRACK ASSY (INC. 35)
  • 35
    1602-079 CLIP, GUIDE
    CLIP, GUIDE
  • 35
    7997-952 SKID FRAME ASSY
    SKID FRAME ASSY
