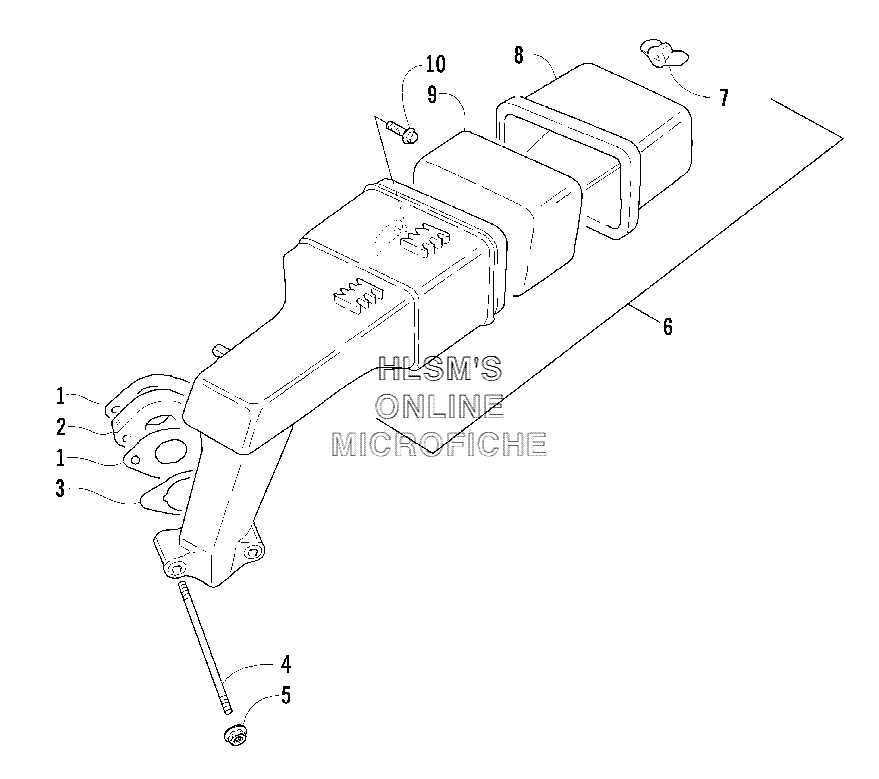

AIR CLEANER ASSEMBLY для Arctic Cat ZR 120 (RED) - 2005 года выпуска
-
№АртикулНазвание
-
10693-282 GASKET, CARBURETORGASKET, CARBURETOR
-
20691-850 INSULATOR, CARBURETORINSULATOR, CARBURETOR
-
30693-287 GASKET, AIR CLEANERGASKET, AIR CLEANER
-
40693-364 BOLT, STUDBOLT, STUD
-
53004-488 NUTNUT
-
60693-543 CLEANER, AIR, ASSY (INC. 7, 9)CLEANER, AIR, ASSY (INC. 7, 9)
-
70693-542 NUT, WINGNUT, WING
-
80691-851 COVER, AIR CLEANERCOVER, AIR CLEANER
-
90691-736 FILTER, AIR CLEANERFILTER, AIR CLEANER
-
100693-307 BOLTBOLT
