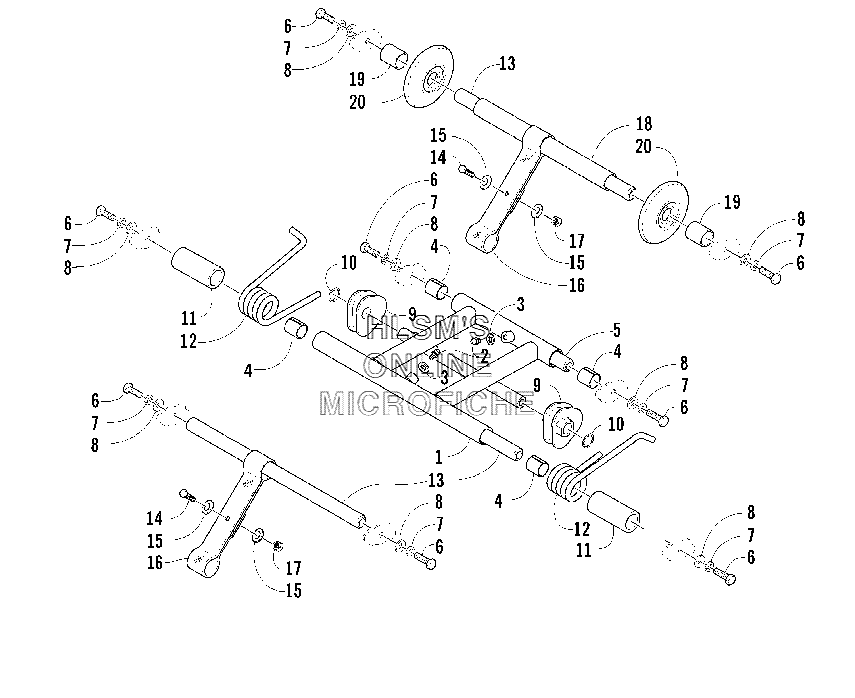

REAR SUSPENSION ARM ASSEMBLY для Arctic Cat ZR 120 (GREEN) - 2005 года выпуска`
-
№АртикулНазвание
-
11704-287 ARM, REAR SUSPENSION (INC. 2, 4)ARM, REAR SUSPENSION (INC. 2, 4)
-
21623-010 FITTING, GREASEFITTING, GREASE
-
31623-011 WASHER, GREASE FITTINGWASHER, GREASE FITTING
-
40603-083 BEARINGBEARING
-
51604-710 AXLE, REAR SUSPENSION ARM (LOWER)AXLE, REAR SUSPENSION ARM (LOWER)
-
68002-131 SCREW, CAPSCREW, CAP
-
78051-247 WASHER, LOCKWASHER, LOCK
-
88050-247 WASHERWASHER
-
91604-204 BLOCK, SPRING ADJUSTER (RIGHT)BLOCK, SPRING ADJUSTER (RIGHT)
-
91604-205 BLOCK, SPRING ADJUSTER (LEFT)BLOCK, SPRING ADJUSTER (LEFT)
-
100623-138 RING, RETAININGRING, RETAINING
-
111604-715 SLEEVE, SPRINGSLEEVE, SPRING
-
120704-894 SPRING, REAR SUSPENSION (RIGHT)SPRING, REAR SUSPENSION (RIGHT)
-
120704-895 SPRING, REAR SUSPENSION (LEFT)SPRING, REAR SUSPENSION (LEFT)
-
131604-673 AXLEAXLE
-
148002-042 SCREW, CAPSCREW, CAP
-
158050-222 WASHERWASHER
-
161604-708 STRAP, LIMITERSTRAP, LIMITER
-
178040-366 NUT, LOCKNUT, LOCK
-
181604-564 SPACERSPACER
-
191604-565 SPACERSPACER
-
200300-180 WHEEL, IDLERWHEEL, IDLER
