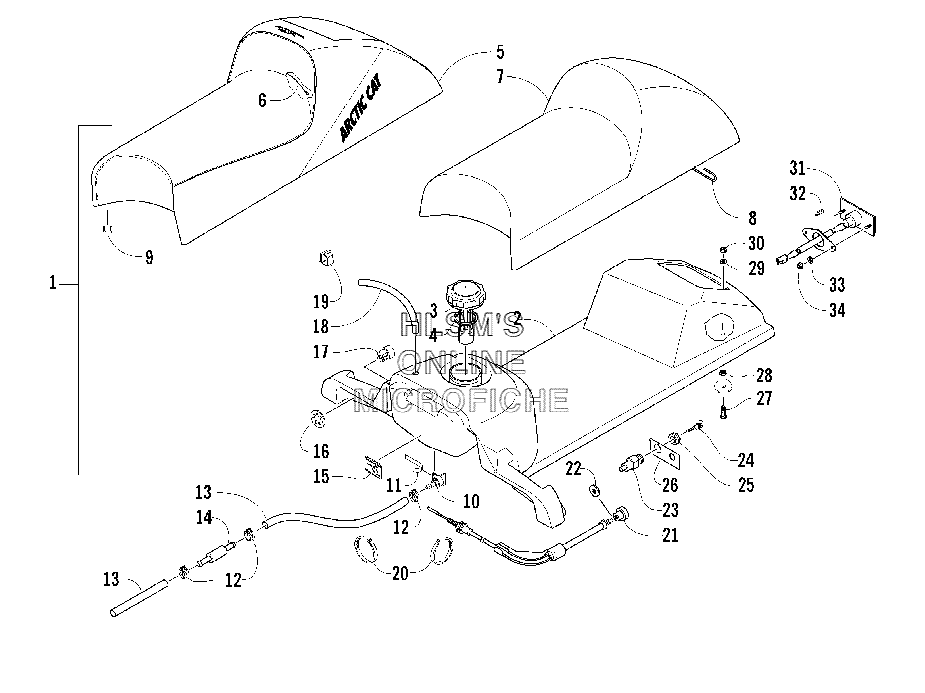

GAS TANK- SEAT- AND TAILLIGHT ASSEMBLY для Arctic Cat ZR 120 (GREEN) - 2005 года выпуска`
-
№АртикулНазвание
-
11718-746 COMPLETE SEAT ASSY (INC. 2, 9)COMPLETE SEAT ASSY (INC. 2, 9)
-
22606-844 TANK, GAS/SEAT, BASETANK, GAS/SEAT, BASE
-
31670-084 CAP, GAS TANK (INC. 4)CAP, GAS TANK (INC. 4)
-
40109-733 SEAL, TANK CAPSEAL, TANK CAP
-
52706-642 COVER, SEAT (INC. 6)COVER, SEAT (INC. 6)
-
62606-031 WIRE, SEATWIRE, SEAT
-
71706-017 FOAM, SEATFOAM, SEAT
-
82606-942 WIRE, SEATWIRE, SEAT
-
90624-528 STAPLE, SEAT COVERSTAPLE, SEAT COVER
-
100676-017 VALVE, SHUT, OFF, GAS TANKVALVE, SHUT, OFF, GAS TANK
-
110670-289 TAPE, TEFLONTAPE, TEFLON
-
121623-233 CLAMP, HOSECLAMP, HOSE
-
136101-001 HOSE, GASLINE/VENT (100 FT)HOSE, GASLINE/VENT (100 FT)
-
136101-009 HOSE, GASLINE/VENT (50 FT)HOSE, GASLINE/VENT (50 FT)
-
140510-335 FILTER, FUELFILTER, FUEL
-
153611-856 DECAL, SHUT, OFF VALVEDECAL, SHUT, OFF VALVE
-
160123-579 NUT, PUSHNUT, PUSH
-
170116-469 BUSHING, RECOIL STARTERBUSHING, RECOIL STARTER
-
181670-647 HOSE, VENTHOSE, VENT
-
190123-394 CLIP, CABLECLIP, CABLE
-
200123-788 CABLE TIE, 7 IN.CABLE TIE, 7 IN.
-
210687-154 CABLE, CHOKE (INC. 22)CABLE, CHOKE (INC. 22)
-
220687-181 NUT, CHOKE CABLENUT, CHOKE CABLE
-
230109-822 SWITCH, IGNITION (INC. 24, 25)SWITCH, IGNITION (INC. 24, 25)
-
240116-065 KEYKEY
-
250609-111 NUT, RETAININGNUT, RETAINING
-
264611-767 DECAL, SWITCH/CHOKEDECAL, SWITCH/CHOKE
-
278002-040 SCREW, CAPSCREW, CAP
-
288041-366 NUT, LOCKNUT, LOCK
-
290623-184 WASHERWASHER
-
300123-108 NUT, NYLON CAPNUT, NYLON CAP
-
310609-070 TAILLIGHT ASSY (INC. 32)TAILLIGHT ASSY (INC. 32)
-
320230-020 BULB, TAILLIGHTBULB, TAILLIGHT
-
338050-157 WASHERWASHER
-
340123-709 NUT W/LOCK WASHERNUT W/LOCK WASHER
