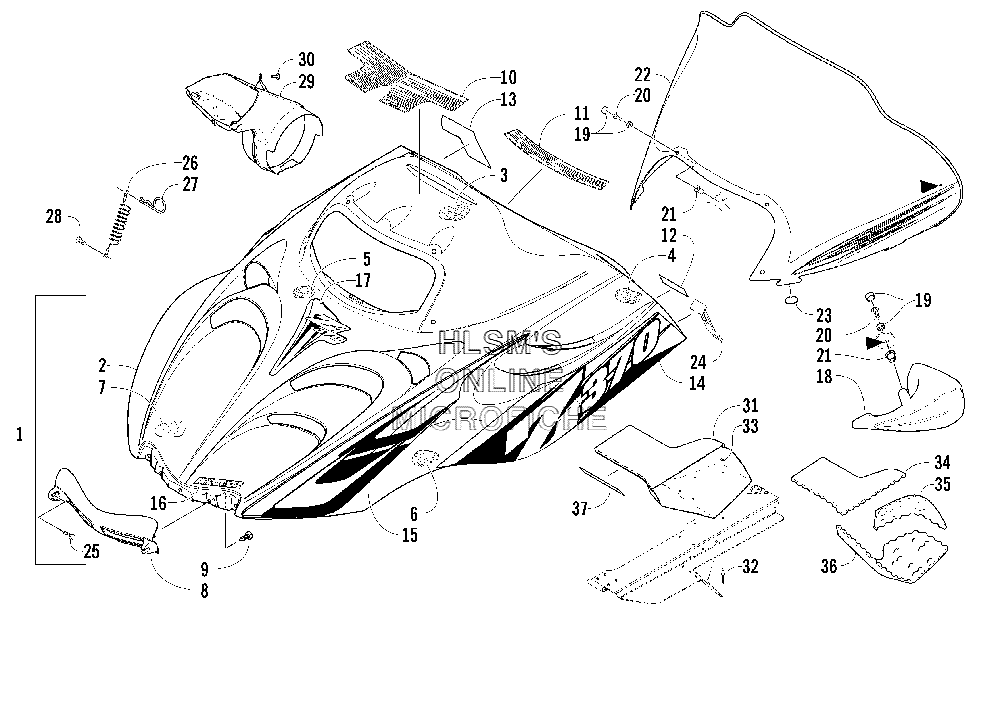

HOOD AND WINDSHIELD ASSEMBLY для Arctic Cat Z 370 LX (GREEN) - 2005 года выпуска
-
№АртикулНазвание
-
11718-626 HOOD W/DECALS (INC. 2, 17)HOOD W/DECALS (INC. 2, 17)
-
21718-700 HOOD W/O DECALS (INC. 3, 13)HOOD W/O DECALS (INC. 3, 13)
-
30717-148 FOAM, HOOD (UPPER/MIDDLE/RIGHT)FOAM, HOOD (UPPER/MIDDLE/RIGHT)
-
30717-149 FOAM, HOOD (UPPER/MIDDLE/LEFT)FOAM, HOOD (UPPER/MIDDLE/LEFT)
-
40717-164 FOAM, HOOD (UPPER/RIGHT)FOAM, HOOD (UPPER/RIGHT)
-
40717-165 FOAM, HOOD (UPPER/LEFT)FOAM, HOOD (UPPER/LEFT)
-
50717-138 FOAM, HOOD )MIDDLE)FOAM, HOOD )MIDDLE)
-
60717-140 FOAM, HOOD (REAR/RIGHT)FOAM, HOOD (REAR/RIGHT)
-
60717-141 FOAM, HOOD (REAR/LEFT)FOAM, HOOD (REAR/LEFT)
-
71606-938 FOIL, HOOD (RIGHT)FOIL, HOOD (RIGHT)
-
71606-939 FOIL, HOOD (LEFT)FOIL, HOOD (LEFT)
-
81606-720 HINGE, HOODHINGE, HOOD
-
90623-797 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
103611-485 DECAL, WARNING, GENERAL AND BRAKEDECAL, WARNING, GENERAL AND BRAKE
-
113611-970 DECAL, CAUTION, ENGINE/BATTERY/FUELDECAL, CAUTION, ENGINE/BATTERY/FUEL
-
123611-509 DECAL, WARNING, SEATING CAPACITYDECAL, WARNING, SEATING CAPACITY
-
133611-580 DECAL REVERSEDECAL REVERSE
-
146611-088 DECAL, HOOD (LOWER/RIGHT)DECAL, HOOD (LOWER/RIGHT)
-
146611-089 DECAL, HOOD (LOWER/LEFT)DECAL, HOOD (LOWER/LEFT)
-
156611-086 DECAL, HOOD (UPPER/RIGHT)DECAL, HOOD (UPPER/RIGHT)
-
156611-087 DECAL, HOOD (UPPER/LEFT)DECAL, HOOD (UPPER/LEFT)
-
163611-187 DECAL, "ARCTIC CAT", HOODDECAL, "ARCTIC CAT", HOOD
-
176611-085 DECAL, HOOD, CRESTDECAL, HOOD, CREST
-
182639-477 MIRROR KIT (INC. SIX NO. 19, 21)MIRROR KIT (INC. SIX NO. 19, 21)
-
190124-054 SNAP CAP W/WASHERSNAP CAP W/WASHER
-
200623-902 SCREW, MACHINESCREW, MACHINE
-
210623-845 NUT, EXPANSIONNUT, EXPANSION
-
223606-620 WINDSHIELDWINDSHIELD
-
230616-032 O-RINGO-RING
-
241606-067 STRAP, HOLD (DOWN)STRAP, HOLD (DOWN)
-
251623-016 SCREW, MACHINESCREW, MACHINE
-
262606-247 CABLE, HOODCABLE, HOOD
-
270623-805 CLIP, HAIRPINCLIP, HAIRPIN
-
280623-057 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
291606-829 DUCT, AIR (INNER)DUCT, AIR (INNER)
-
300623-257 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
311606-872 DUCT, AIR (OUTER)DUCT, AIR (OUTER)
-
328060-506 RIVETRIVET
-
330123-149 WASHERWASHER
-
340617-453 FOAM, AIR, OUTER DUCT (TOP)FOAM, AIR, OUTER DUCT (TOP)
-
350617-454 FOAM, AIR, OUTER DUCT (SIDE)FOAM, AIR, OUTER DUCT (SIDE)
-
360617-452 FOAM, AIR, OUTER DUCT (BOTTOM)FOAM, AIR, OUTER DUCT (BOTTOM)
-
370706-548 TAPE, FOILTAPE, FOIL
