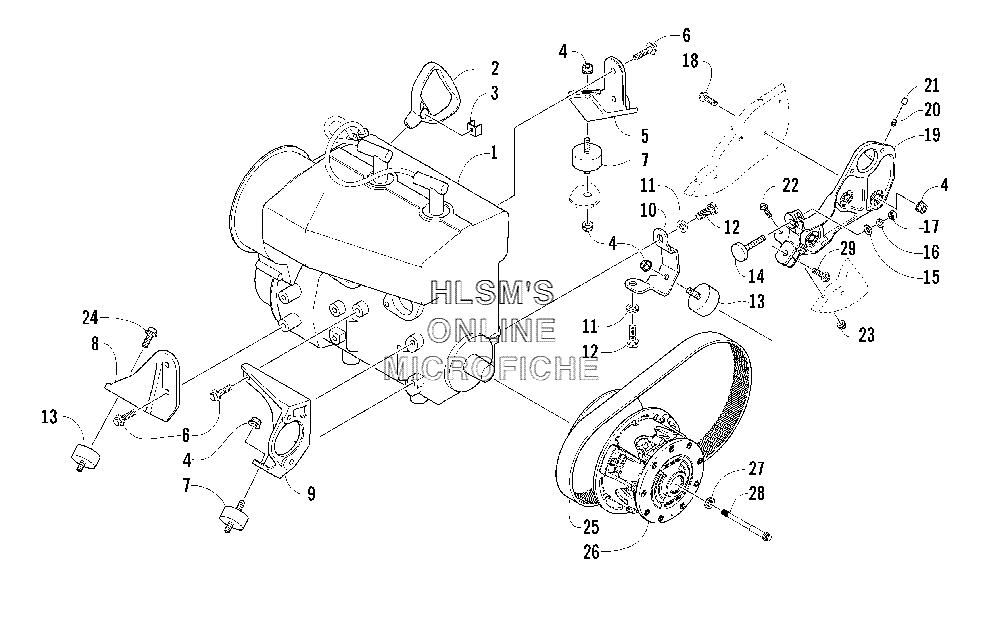

ENGINE AND RELATED PARTS для Arctic Cat Z 370 LX (GREEN) - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    0662-391 ENGINE, AA37A7
    ENGINE, AA37A7
  • 2
    0636-363 HANDLE, RECOIL
    HANDLE, RECOIL
  • 3
    0606-885 CAP, RECOIL HANDLE
    CAP, RECOIL HANDLE
  • 4
    8048-486 NUT, LOCK
    NUT, LOCK
  • 5
    0708-048 BRACKET, ENGINE MOUNTING (RIGHT/REAR)
    BRACKET, ENGINE MOUNTING (RIGHT/REAR)
  • 6
    8020-130 SCREW, CAP
    SCREW, CAP
  • 7
    0608-118 MOUNT, ENGINE, DOUBLE MALE
    MOUNT, ENGINE, DOUBLE MALE
  • 8
    0708-050 BRACKET, ENGINE MOUNTING (RIGHT/FRONT)
    BRACKET, ENGINE MOUNTING (RIGHT/FRONT)
  • 9
    0608-287 BRACKET, ENGINE MOUNTING (LEFT/FRONT)
    BRACKET, ENGINE MOUNTING (LEFT/FRONT)
  • 10
    0708-412 BRACKET, ENGINE MOUNTING (LEFT/REAR)
    BRACKET, ENGINE MOUNTING (LEFT/REAR)
  • 11
    8051-332 WASHER, LOCK
    WASHER, LOCK
  • 12
    8002-402 SCREW, CAP
    SCREW, CAP
  • 13
    0608-217 MOUNT, ENGINE
    MOUNT, ENGINE
  • 14
    0608-197 BUMPER, TORQUE, ENGINE
    BUMPER, TORQUE, ENGINE
  • 15
    8050-277 WASHER
    WASHER
  • 16
    8051-277 WASHER, LOCK
    WASHER, LOCK
  • 17
    8042-486 NUT
    NUT
  • 18
    8020-224 SCREW, CAP
    SCREW, CAP
  • 19
    0708-140 BRACKET, ENGINE MOUNTING/BEARING SUPPORT (INC. 20, 21)
    BRACKET, ENGINE MOUNTING/BEARING SUPPORT (INC. 20, 21)
  • 20
    1623-010 FITTING, GREASE
    FITTING, GREASE
  • 21
    0623-904 CAP, GREASE FITTING
    CAP, GREASE FITTING
  • 22
    8020-040 SCREW, CAP
    SCREW, CAP
  • 23
    8048-366 NUT, LOCK
    NUT, LOCK
  • 24
    8020-220 SCREW, CAP
    SCREW, CAP
  • 25
    0627-021 BELT, DRIVE
    BELT, DRIVE
  • 26
    0725-344 CLUTCH, DRIVE
    CLUTCH, DRIVE
  • 27
    0623-210 WASHER, HIGH COLLAR
    WASHER, HIGH COLLAR
  • 28
    0623-804 BOLT, CLUTCH
    BOLT, CLUTCH
  • 29
    8020-225 SCREW, CAP
    SCREW, CAP
