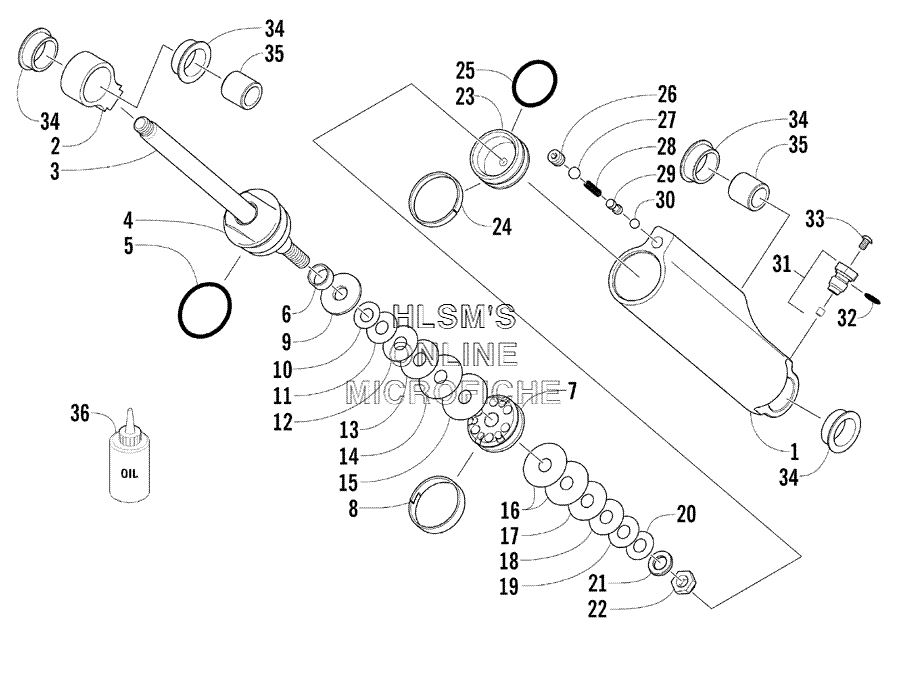

REAR SUSPENSION REAR ARM SHOCK ABSORBER для Arctic Cat Sabercat 700 EFI (RED) - 2005 года выпуска`
-
№АртикулНазвание
-
-0704-852 COMPLETE SHOCK ABSORBERCOMPLETE SHOCK ABSORBER
-
12604-327 BODY, SHOCKBODY, SHOCK
-
21604-763 EYELET, SHOCKEYELET, SHOCK
-
32604-364 ROD, SHOCKROD, SHOCK
-
41703-452 CAP, SHOCK (INC. 5)CAP, SHOCK (INC. 5)
-
51604-271 O-RINGO-RING
-
62604-168 SPACER, SHAFTSPACER, SHAFT
-
72604-619 PISTON, 0.039 IN., ORIFICE (INC. 8)PISTON, 0.039 IN., ORIFICE (INC. 8)
-
81604-643 STRAP, PISTON, TEFLONSTRAP, PISTON, TEFLON
-
91604-272 WASHER, TOP OUTWASHER, TOP OUT
-
102603-054 VALVE, 0.800 X 0.008 IN.VALVE, 0.800 X 0.008 IN.
-
112603-064 VALVE, 0.900 X 0.008 IN.VALVE, 0.900 X 0.008 IN.
-
122603-074 VALVE, 1.000 X 0.008 IN.VALVE, 1.000 X 0.008 IN.
-
132603-094 VALVE, 1.100 X 0.008 IN.VALVE, 1.100 X 0.008 IN.
-
142603-124 VALVE, 1.250 X 0.008 IN.VALVE, 1.250 X 0.008 IN.
-
152603-134 VALVE, 1.300 X 0.008 IN.VALVE, 1.300 X 0.008 IN.
-
162603-126 VALVE, 1.250 X 0.012 IN.VALVE, 1.250 X 0.012 IN.
-
172603-096 VALVE, 1.100 X 0.012 IN.VALVE, 1.100 X 0.012 IN.
-
182603-076 VALVE, 1.000 X 0.012 IN.VALVE, 1.000 X 0.012 IN.
-
192603-065 VALVE, 0.900 X 0.010 IN.VALVE, 0.900 X 0.010 IN.
-
202603-055 VALVE, 0.800 X 0.010 IN.VALVE, 0.800 X 0.010 IN.
-
211604-273 WASHER, BACKUPWASHER, BACKUP
-
220623-696 NUT, LOCKNUT, LOCK
-
230704-791 PISTON, FLOATING (INC. 24, 25)PISTON, FLOATING (INC. 24, 25)
-
242604-153 STRAP, PISTON, TEFLONSTRAP, PISTON, TEFLON
-
252604-152 O-RINGO-RING
-
268080-305 SCREW, SETSCREW, SET
-
272604-432 BALLBALL
-
282604-433 SPRINGSPRING
-
292604-429 ROD, SPRINGROD, SPRING
-
302604-431 BALLBALL
-
310704-383 VALVE, PRESSURE (INC. 32)VALVE, PRESSURE (INC. 32)
-
321604-284 O-RINGO-RING
-
330624-433 SCREW, VALVESCREW, VALVE
-
341604-262 BUSHING, SHOCKBUSHING, SHOCK
-
351604-397 SLEEVE, EYELETSLEEVE, EYELET
-
362639-151 OIL, GAS SHOCK, 6 QT CASEOIL, GAS SHOCK, 6 QT CASE
