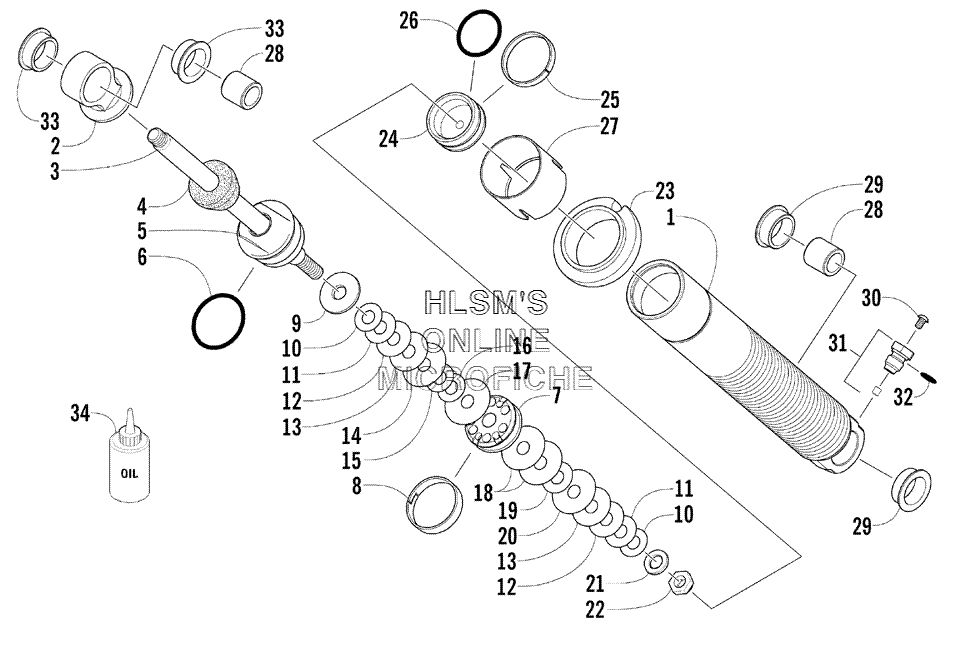

FRONT SUSPENSION SHOCK ABSORBER для Arctic Cat Sabercat 700 EFI (RED) - 2005 года выпуска`
-
№АртикулНазвание
-
-1703-795 SHOCK ABSORBER ASSEMBLYSHOCK ABSORBER ASSEMBLY
-
12603-262 BODY, SHOCKBODY, SHOCK
-
21603-501 EYELET, SHOCKEYELET, SHOCK
-
32603-461 ROD, SHOCKROD, SHOCK
-
40603-991 BUMPER, SHOCKBUMPER, SHOCK
-
51703-452 CAP, SHOCK (INC. 6)CAP, SHOCK (INC. 6)
-
61604-271 O-RINGO-RING
-
71603-996 PISTON, 0.120 IN., ORIFICEPISTON, 0.120 IN., ORIFICE
-
81604-274 STRAP, PISTON, TEFLONSTRAP, PISTON, TEFLON
-
91604-272 WASHER, TOP OUTWASHER, TOP OUT
-
102603-055 VALVE, 0.800 X 0.010 IN.VALVE, 0.800 X 0.010 IN.
-
112603-065 VALVE, 0.900 X 0.010 IN.VALVE, 0.900 X 0.010 IN.
-
122603-075 VALVE, 1.000 X 0.010 IN.VALVE, 1.000 X 0.010 IN.
-
132603-095 VALVE, 1.100 X 0.010 IN.VALVE, 1.100 X 0.010 IN.
-
142603-124 VALVE, 1.250 X 0.008 IN.VALVE, 1.250 X 0.008 IN.
-
152603-047 VALVE, 0.700 X 0.015 IN.VALVE, 0.700 X 0.015 IN.
-
162603-052 VALVE, 0.800 X 0.006 IN.VALVE, 0.800 X 0.006 IN.
-
172603-132 VALVE, 1.300 X 0.006 IN.VALVE, 1.300 X 0.006 IN.
-
182603-122 VALVE, 1.250 X 0.006 IN.VALVE, 1.250 X 0.006 IN.
-
192603-062 VALVE, 0.900 X 0.006 IN.VALVE, 0.900 X 0.006 IN.
-
202603-125 VALVE, 1.250 X 0.010 IN.VALVE, 1.250 X 0.010 IN.
-
211604-273 WASHER, BACKUPWASHER, BACKUP
-
220623-696 NUT, LOCKNUT, LOCK
-
231603-911 NUT, ADJUSTERNUT, ADJUSTER
-
240704-791 PISTON, FLOATING (INC. 25, 26)PISTON, FLOATING (INC. 25, 26)
-
252604-153 STRAP, PISTON, TEFLONSTRAP, PISTON, TEFLON
-
262604-152 O-RINGO-RING
-
272603-012 SLEEVE, PROTECTORSLEEVE, PROTECTOR
-
281603-209 SLEEVE, EYELETSLEEVE, EYELET
-
291603-914 BUSHING, SHOCKBUSHING, SHOCK
-
300624-433 SCREW, VALVESCREW, VALVE
-
312604-649 VALVE, PRESSURE (INC. 32)VALVE, PRESSURE (INC. 32)
-
322604-162 O-RING, VALVEO-RING, VALVE
-
330603-955 BUSHING, SHOCKBUSHING, SHOCK
-
341639-245 OIL, GAS SHOCK, 6 QT CASEOIL, GAS SHOCK, 6 QT CASE
