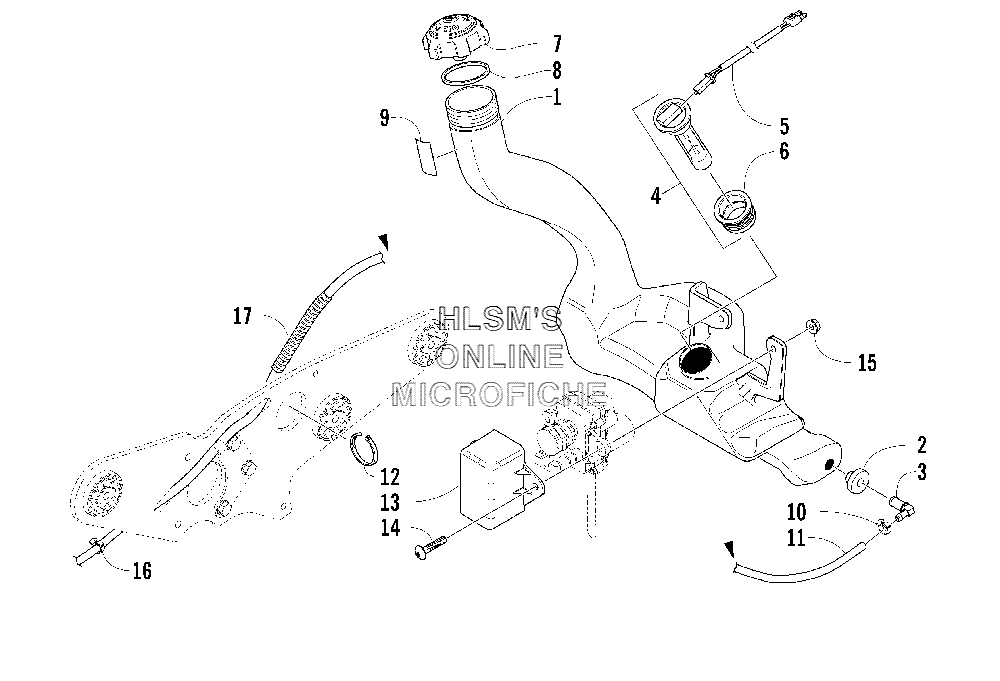

OIL TANK ASSEMBLY для Arctic Cat Sabercat 700 EFI LX (GREEN) - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    1670-673 TANK, OIL (INC. 2, 3)
    TANK, OIL (INC. 2, 3)
  • 2
    1670-325 GROMMET
    GROMMET
  • 3
    1670-324 FITTING, ELBOW
    FITTING, ELBOW
  • 4
    0609-683 SENSOR, LOW OIL, ASSEMBLY (INC. 5, 6)
    SENSOR, LOW OIL, ASSEMBLY (INC. 5, 6)
  • 5
    0609-639 SWITCH, OIL SENSOR W/HARNESS
    SWITCH, OIL SENSOR W/HARNESS
  • 6
    0609-237 SEAL, GROMMET, OIL SENSOR
    SEAL, GROMMET, OIL SENSOR
  • 7
    1670-365 CAP, OIL TANK (INC. 8)
    CAP, OIL TANK (INC. 8)
  • 8
    0109-733 SEAL, CAP, OIL TANK
    SEAL, CAP, OIL TANK
  • 9
    4611-532 DECAL, OIL TANK
    DECAL, OIL TANK
  • 10
    0623-063 CLAMP, HOSE
    CLAMP, HOSE
  • 11
    0610-015 HOSE, OIL (100 FT)
    HOSE, OIL (100 FT)
  • 11
    0610-016 HOSE, OIL (25 FT)
    HOSE, OIL (25 FT)
  • 12
    0123-903 CABLE TIE, 11.5 IN.
    CABLE TIE, 11.5 IN.
  • 13
    2606-129 COVER, SERVOMOTOR
    COVER, SERVOMOTOR
  • 14
    8017-584 SCREW, CAP
    SCREW, CAP
  • 15
    8048-366 NUT, LOCK
    NUT, LOCK
  • 16
    0124-045 CLAMP, HOSE
    CLAMP, HOSE
  • 17
    0716-558 LOOM, PROTECTIVE (10 FT)
    LOOM, PROTECTIVE (10 FT)
