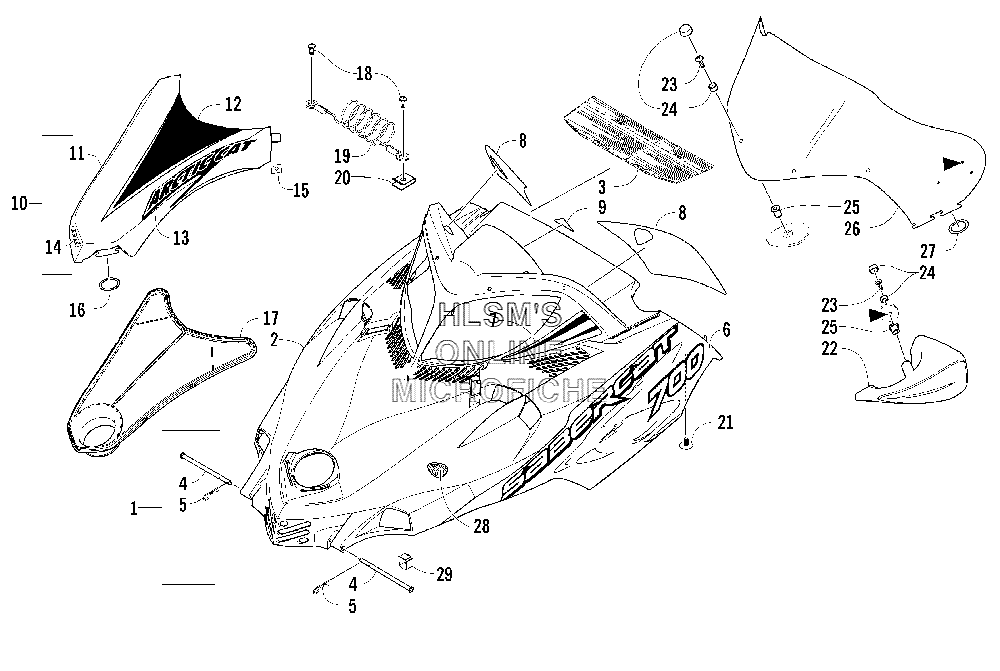

HOOD AND WINDSHIELD ASSEMBLY для Arctic Cat Sabercat 700 EFI LX (GREEN) - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    1718-724 HOOD W/DECALS (INC. 2, 9)
    HOOD W/DECALS (INC. 2, 9)
  • 2
    1718-627 HOOD W/O DECALS (INC. 3, 5)
    HOOD W/O DECALS (INC. 3, 5)
  • 3
    5611-483 DECAL, WARNING, GENERAL AND BRAKE
    DECAL, WARNING, GENERAL AND BRAKE
  • 4
    1623-026 PIN, CLEVIS
    PIN, CLEVIS
  • 5
    0623-847 CLIP, HAIRPIN
    CLIP, HAIRPIN
  • 6
    6611-034 DECAL, HOOD (LOWER/RIGHT)
    DECAL, HOOD (LOWER/RIGHT)
  • 6
    6611-035 DECAL, HOOD (LOWER/LEFT)
    DECAL, HOOD (LOWER/LEFT)
  • 7
    6611-036 DECAL, HOOD (UPPER/RIGHT)
    DECAL, HOOD (UPPER/RIGHT)
  • 7
    6611-037 DECAL, HOOD (UPPER/LEFT)
    DECAL, HOOD (UPPER/LEFT)
  • 8
    6611-038 DECAL, CONSOLE (RIGHT)
    DECAL, CONSOLE (RIGHT)
  • 8
    6611-039 DECAL, CONSOLE (LEFT)
    DECAL, CONSOLE (LEFT)
  • 9
    3611-611 DECAL, "MADE IN U.S.A.", DOMED
    DECAL, "MADE IN U.S.A.", DOMED
  • 10
    1718-629 COVER, HOOD (INC. 11, 15)
    COVER, HOOD (INC. 11, 15)
  • 11
    2706-031 COVER, HOOD W/O DECALS
    COVER, HOOD W/O DECALS
  • 12
    6611-040 DECAL, COVER (CENTER)
    DECAL, COVER (CENTER)
  • 13
    6611-042 DECAL, COVER (RIGHT)
    DECAL, COVER (RIGHT)
  • 13
    6611-043 DECAL, COVER (LEFT)
    DECAL, COVER (LEFT)
  • 14
    6611-041 DECAL, COVER, FRONT
    DECAL, COVER, FRONT
  • 15
    2606-007 FOIL, PROTECTIVE
    FOIL, PROTECTIVE
  • 16
    2606-801 O-RING
    O-RING
  • 17
    3606-150 SCREEN, HOOD
    SCREEN, HOOD
  • 18
    0623-302 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 19
    2606-726 CABLE, HOOD
    CABLE, HOOD
  • 20
    1623-052 U, NUT
    U, NUT
  • 21
    0623-544 PLUG
    PLUG
  • 22
    2639-477 KIT, MIRROR (INC. SIX NO. 23, 25)
    KIT, MIRROR (INC. SIX NO. 23, 25)
  • 23
    0623-902 SCREW, MACHINE
    SCREW, MACHINE
  • 24
    0124-054 SNAP CAP W/WASHER
    SNAP CAP W/WASHER
  • 25
    0623-845 NUT, EXPANSION
    NUT, EXPANSION
  • 26
    3606-488 WINDSHIELD
    WINDSHIELD
  • 27
    0616-032 O-RING
    O-RING
  • 28
    0617-466 FOAM, HOOD
    FOAM, HOOD
  • 29
    0123-394 CLIP, RETAINING, FOAM
    CLIP, RETAINING, FOAM
