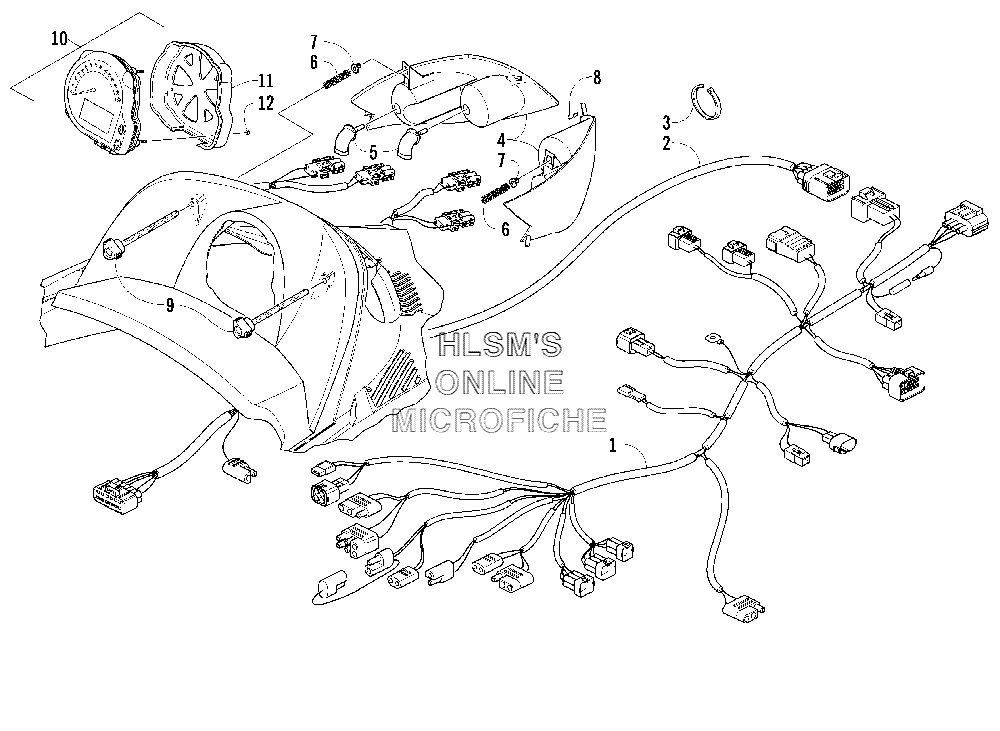

HEADLIGHT- INSTRUMENTS- AND WIRING ASSEMBLIES для Arctic Cat Sabercat 700 EFI (BLACK) - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    1686-053 HARNESS, MAIN
    HARNESS, MAIN
  • 2
    1686-065 HARNESS, HOOD
    HARNESS, HOOD
  • 3
    0123-788 CABLE TIE, 8 IN.
    CABLE TIE, 8 IN.
  • 4
    0609-530 LENS/REFLECTOR, HEADLIGHT (RIGHT) (INC. 5)
    LENS/REFLECTOR, HEADLIGHT (RIGHT) (INC. 5)
  • 4
    0609-531 LENS/REFLECTOR, HEADLIGHT (LEFT) (INC. 5)
    LENS/REFLECTOR, HEADLIGHT (LEFT) (INC. 5)
  • 5
    0609-251 BULB, HEADLIGHT
    BULB, HEADLIGHT
  • 6
    0623-360 SPRING, ADJUSTER
    SPRING, ADJUSTER
  • 7
    1623-025 INSERT
    INSERT
  • 8
    1623-137 CLIP, HAIRPIN
    CLIP, HAIRPIN
  • 9
    1623-024 SCREW, ADJUSTER
    SCREW, ADJUSTER
  • 10
    0620-292 TACHOMETER/SPEEDOMETER (INC. 11, 12)
    TACHOMETER/SPEEDOMETER (INC. 11, 12)
  • 11
    0620-281 BRACKET, RETAINING
    BRACKET, RETAINING
  • 12
    0620-280 NUT W/WASHER
    NUT W/WASHER
